FLUIDS
rmo2008-002-509_a

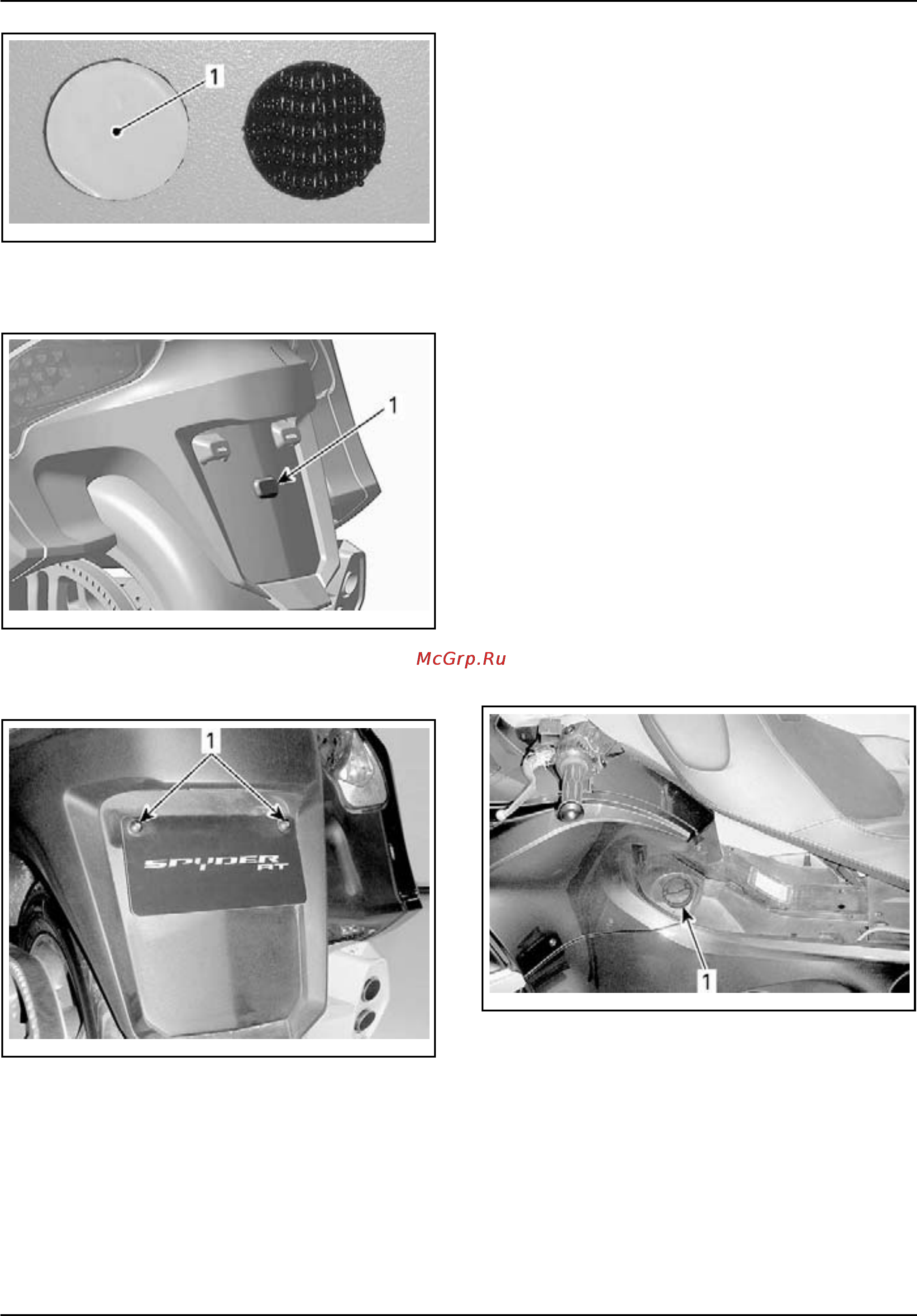

1. Damping pad backing
3. Position new damping pad on vehicle plate sup-
port.
rmo2010-001-053_a
1. Plate su
pport
4. Secure upper portion of license plate on vehicle
plate support using existing hardware.
rmo2010-001-054_a
1. Existing hardware
5. Squeeze license plate and support together at
the center.
Accessories Installation
1. Install accessories (if any) as per their installa-
tion instructions (included in each kit).
2. Install any other equipment required by law (if
any).
Vehicle Decals
1. Install decals on vehicle according to customer
country language and local legislation.
2. Ensure that the new decals are installed at the
same location and over the factory installed de-
cals.
Key Barrel - Trailer RT 622
An extra key barrel is supplied with each Spyder
RT. This allows the use of the vehicle key for the
trailer.
Refer to the trailer RT 622 PDI Bulletin for all the
details.
FLUIDS
General Guidelines
All fluids (except fuel) have already been filled
at factory, it is only necessary to validate them.
However, if refill is needed, refer to the appropri-
ate
ROADSTER SHOP MANUAL
for the proper
procedure.
Fuel
1. Unlatch and lift seat.
2. Add fuel in the fuel reservoir.
rmo2010-001-051_b
1. Fuel cap
Recommended Fuel
Use unl
eaded gasoline or oxygenated fuel con-
tainin
g no more than 10% ethanol or methanol.
The gas
oline used must meet the following oc-
tane nu
mber:
PREDELIVERY 2010-1 21 / 39
