ASSEMBLY INSPECTION
NOTE: It can also be done directly on the info-cen-
ter, using the selector button.

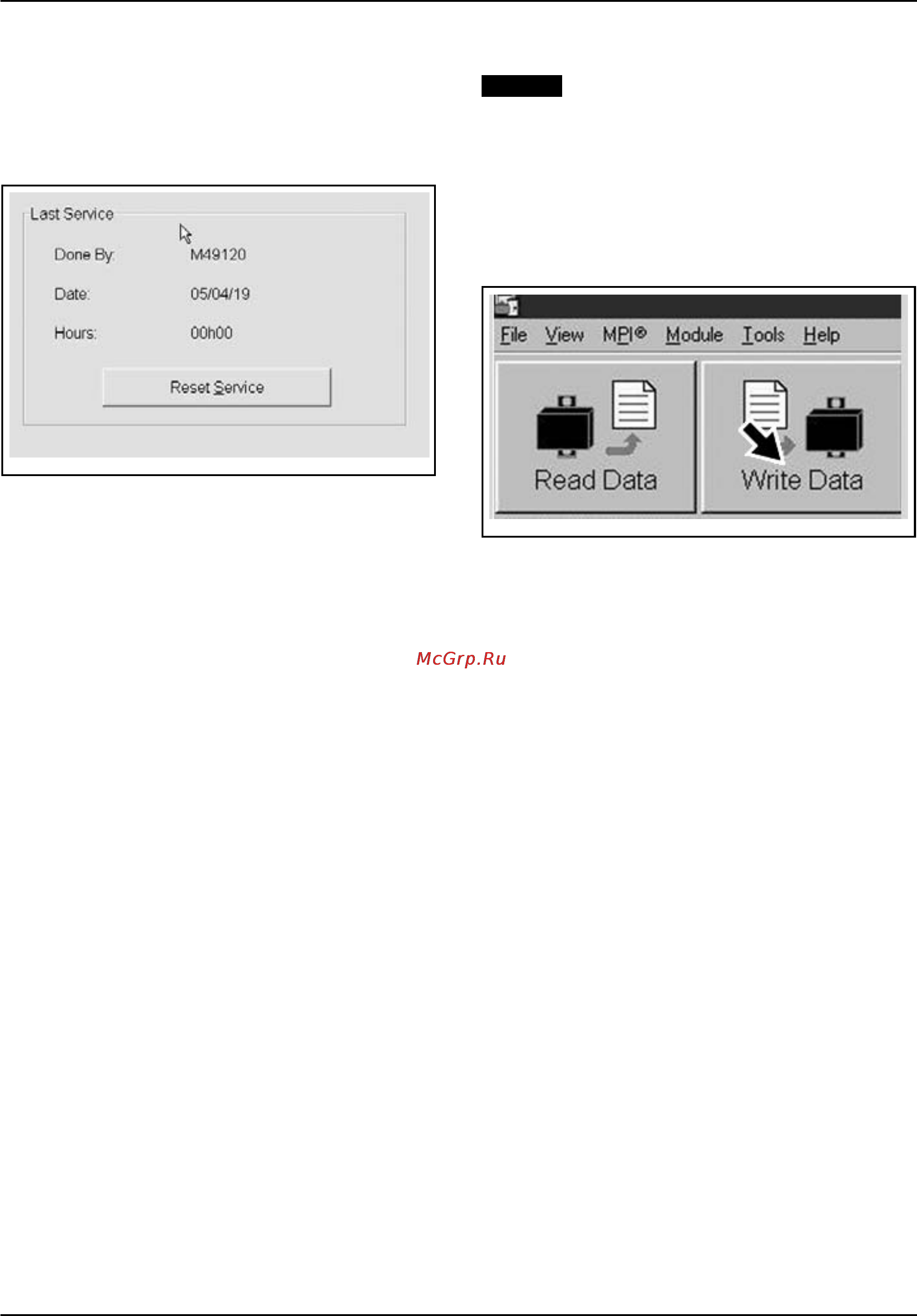

Resetting Last Service
1. Click on the RESET SERVICE button to reset
the informations.
vbl2006-00
7-004
NOTE: After each maintenance service, Last Ser-
vice should be reset to keep a good track of vehi-
cle service history.
Speedometer Units
NOTE: The speedometer is factory preset in miles
but it is possible to change it to kilometer reading.
Any unit modification is applied to the speedome-
ter, odometer and trip meter.
1. Select the SETTING tab in B.U.D.S.
2. Select CLUSTER page.
3. Select Metric or Imperial from the Cluster
Units section.
NOTE: No data will be lost when changing this set-
ting.
Cluster Language (chosen by customer
according to availability)
NOTE: The default language displayed in the multi-
function gauge is English. To change the language
displayed in the multifunction gauge.
1. Select SETTING tab at the top of the page.
2. Select CLUSTER tab at the bottom of the page.
3. Select desired language in the Cluster Lan-
guage field.
NOTE: If the language selection is not available,
the gauge may not have the latest software ver-
sion available.
Ending a B.U.D.S. Session
NOTICE
Clear the fault(s) after a problem has
been solved. This will properly reset the appro-
priate counter(s).
1. Click on FAULT tab and check if there are active
faults. If so, service vehicle then clear the faults
in B.U.D.S.
2. Click on WRITE DATA button to transfer new
settings and information to the modules.
vmr2006-012-100_ben
WRITE DATA BUTTON
3. Click on E
XIT button (right most) to end session.
4. Reinstall DCL connector into its housing.
5. Reinstall service cover on vehicle.
ASSEMBLY INSPECTION
Inspect t
he following parts to make sure that the
vehicle i
s properly assembled.
1. Front compartment cover and seat locks
2. Passenger grab handles
3. Front wh
eel nuts torque (must be 105 N•m
(77 lbf•
ft))
4. Rear shock absorber retaining nuts torque
(must be 48 N•m (35 lbf•ft))
5. Suspension arm ball joint cotter pins
6. Tie rod
end nuts and cotter pins
7. Rear axle nut and cotter pin
8. Gearshift pedal operation
9. Parki
ng brake operation
10. Brake lines
11. Foot pegs.
NOTE
:
Refer to the Predelivery Check List to con-
firm
that all items are covered by your inspection.
32 / 39 2010-1 PREDELIVERY
