PARTSTOBEINSTALLED

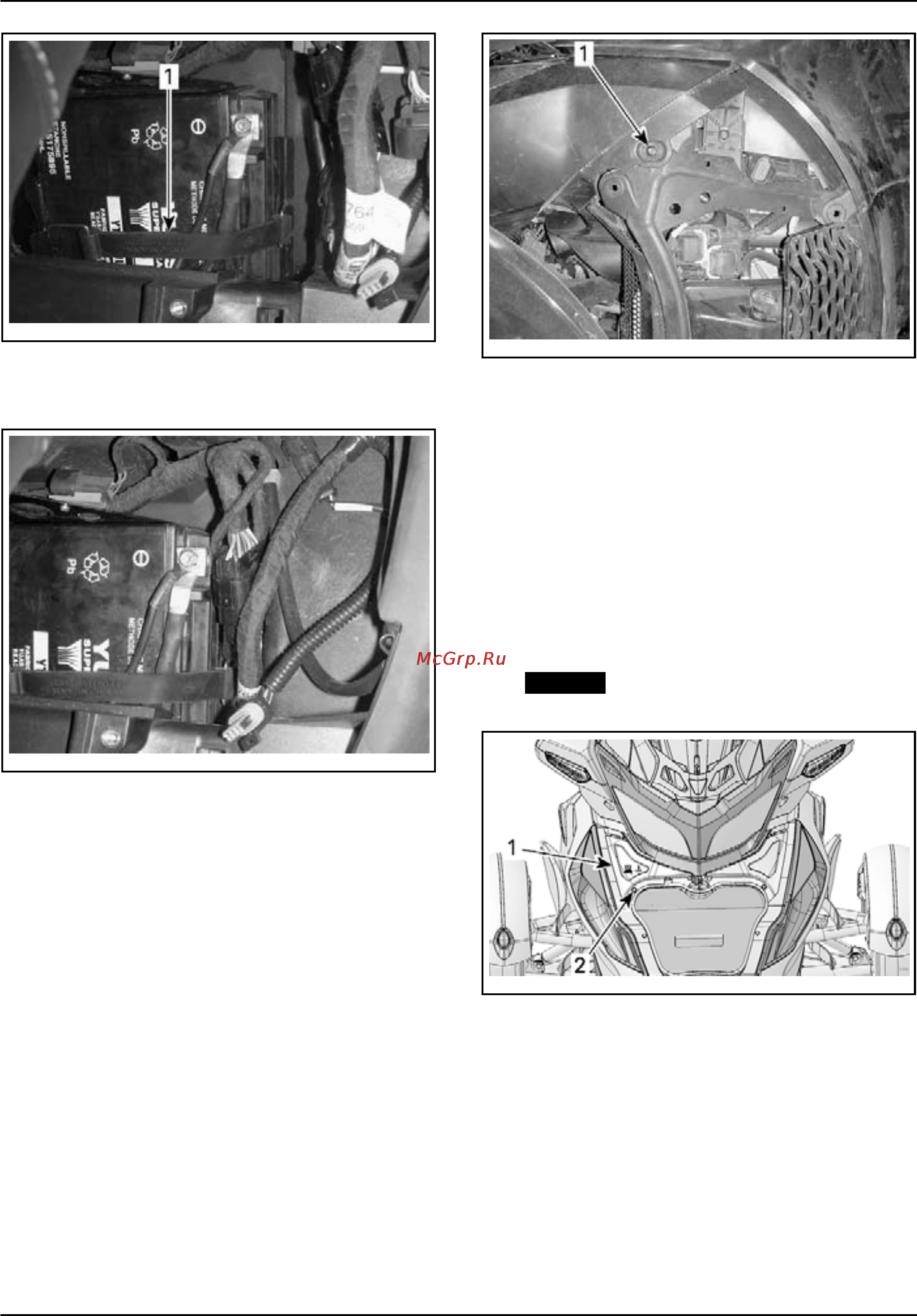

rbl2010-002-316_a
1. Battery holding strap
20. Position electrical harness in their original lo-
cation.
rbl2010-002-317
21. Connect rear heated grip switch if applicable.
22. Install the battery access panel.
23. Connect pillion rider (passenger) switch.
24. Connect shock absorber on seat base.
Front Cargo Module
(continued)
1. Install the following body panels as the reverse
of removal procedure:
– Front fascia
– LH rear side panel
– Top side panels
– Middle side panels
– Mirrors.
2. Install M6 x 20 screws and plastic washers
(from PDI kit) to secure side panels.
rmo2010-001-009_e
LEFT SIDE SHOWN
1. M6 x 20 screw and plastic washer (from PDI kit)
3. Torque front fascia retaining screws to 2.5 N•m
(22 lbf•in).
4. Torque top side panel retaining screws to
2.5N•m (22lbf•in).
5. Install service covers (from PDI kit) as follows:
5.1 Open front storage compartment cover.
5.2 Insert upper tabs of service cover into the
vehicle grooves.
5.3 Push lower portion of service cover then
install plastic rivet (from PDI kit).
NOTICE
For the RH service cover, pay at-
tention not to damage the FCS switch.
rmr2010-038-021_a
1. RH service cover
2. Plastic rivet
Front Fenders
1. Cut locking tie that hold harness bracket on
fender.
PREDELIVERY 2010-1 17 / 39
