ADJUSTMENTS
NOTE: Do not use D.E.S.S. POST INTERFACE
(P/N 529 036 019)
with the KW2000 (500K) proto-
col. DESS Post Interface will not allow communi-
cationwiththesevehicles.
NOTE: B.U.D.S.isnotusedtoprogramthehard
keys (included keys are ready to use).
Use B.U.D.S. to
– Enter Customer's Name
– Reset Trip Hours and Trip Distances
– Reset Last Service
– Set Speedometer Units
– Set Cluster Language
– Check fault codes (if any).
Connecting PC to Vehicle
1. Remove service cover from vehicle.
2. Connect the PC to vehicle. Refer to the latest
edition of
CAN-AM ROADSTER B.U.D.S. SOFT-
WARE AND COMMUNICATION TOOLS
for the
proper connecting procedure.
3. Ensure that the status bar shows the proper
protocol and proper ECU number. Refer to the
following table.
MODEL PROTOCOL
ECU
QUANTITY
SM5
KW2000 500K
5
SE5
KW2000 500K 6
4. Press READ DATA button from the tool bar to
initiate communication with the vehicle.
Entering Customer's Name
NOTE: Wh
en starting the vehicle, the multifunc-
tion dis
play will show the name of the customer;
for exam
ple: “HI JOHN SMITH”. If the cus-
tomer's
name is not programmed, only “HI” will
be visib
le when turning the vehicle ON.

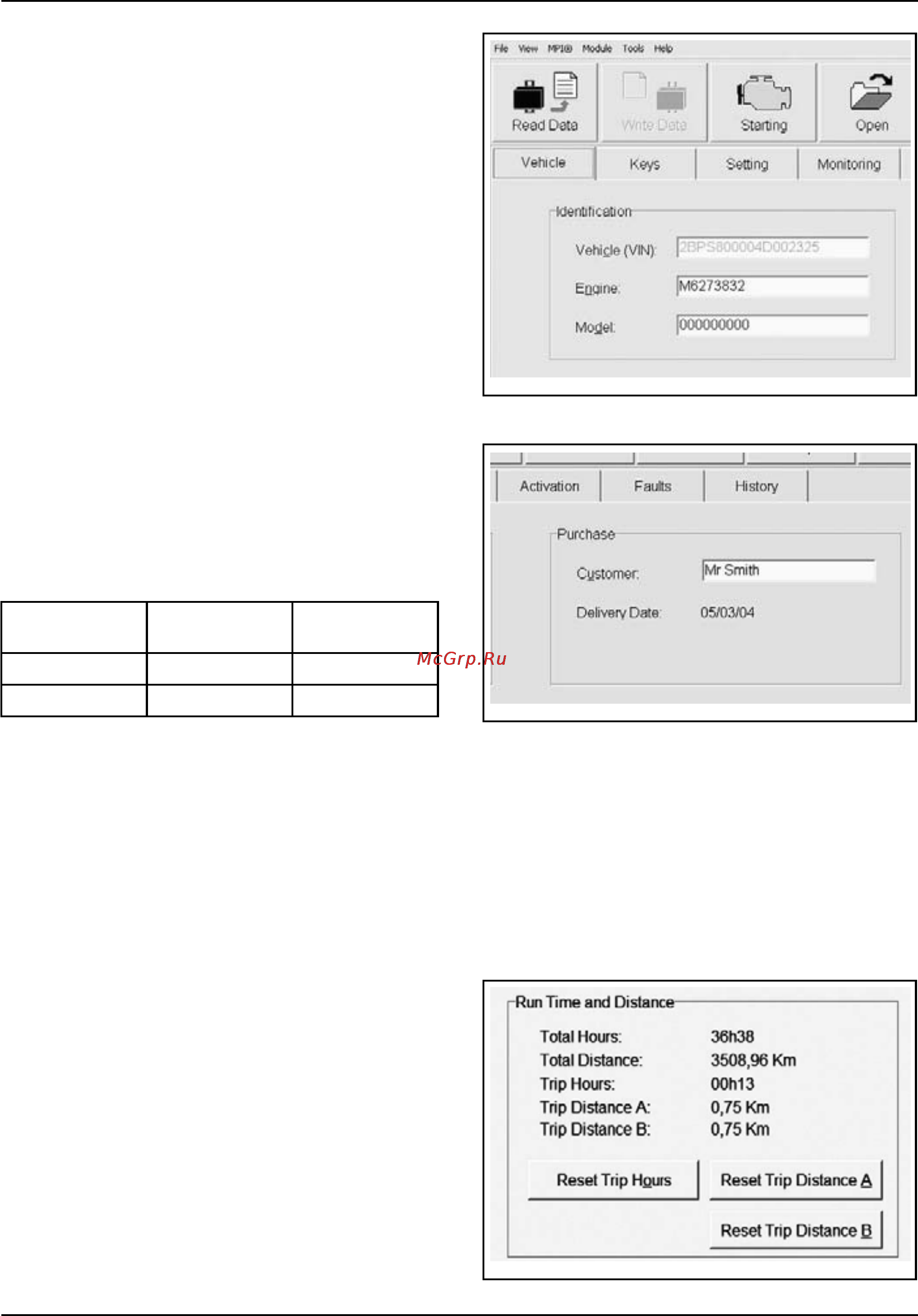

1. Click on the VEHICLE tab to open the vehicle
information page.
vbl2006-007-001
2. Ty pe the na
me of the customer.
vbl2006-007-002
3. Click on WRITE DATA to save the information
in the vehicle ECM.
NOTE: A
fter you are finished typing the name,
B.U.D.
S. automatically updates the Delivery Date
on the s
creen.
Resetting Trip Hours and Trip Distances
1. Ensure that the VEHICLE tab is selected.
2. Click
on the RESET TRIP buttons to reset the
infor
mation.
rbl2008-003-003
PREDELIVERY 2010-1 31 / 39
