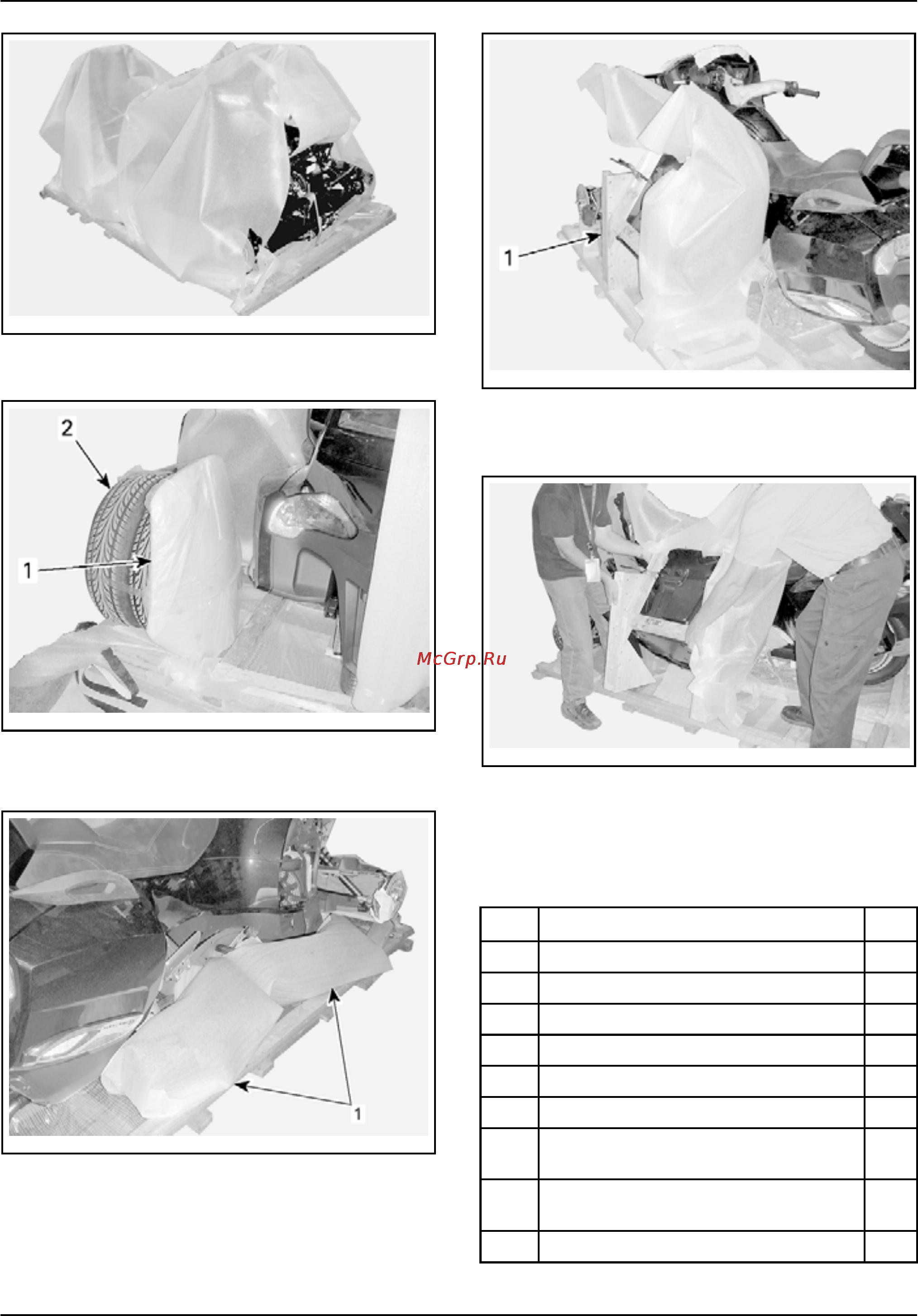

UNCRATING
rbl2010-002-005
2. Remove windshield and front wheels from
crate base.
rbl2010-002-006_a
1. Windshield
2. Front wheels
3. Remove front fenders from crate base.
rbl2
010-002-007_a
1. Front fenders
4. Remove all screws holding sub-crate to crate
base.
rbl2010-002-008_a
1. Sub-crate
5. Assisted by another person, carefully lift up the
sub-crate.
rbl2010-002-009
Parts Check
1. Ensure that the crate includes the following
items:
All Models
ITEM DESCRIPTION (LOCATION) QTY
1
Wheel
lug nut (front wheels)
6
2 Wheel cap (front wheels) 2
3 Bushing (rear suspension) 2
4
M10 x
140 (rear suspension)
1
5
M10 nut (rear s uspension)
1
6 M6 caged nut (front cargo module)
1
7
Bla
ck M 6 x 20 s crew (front cargo
module)
4
8
Gol
d M6 x 20 screw (fron t cargo
module)
2
9
Ser
vice cover (front cargo module)
2
4 / 39 2010-1 PREDELIVERY
