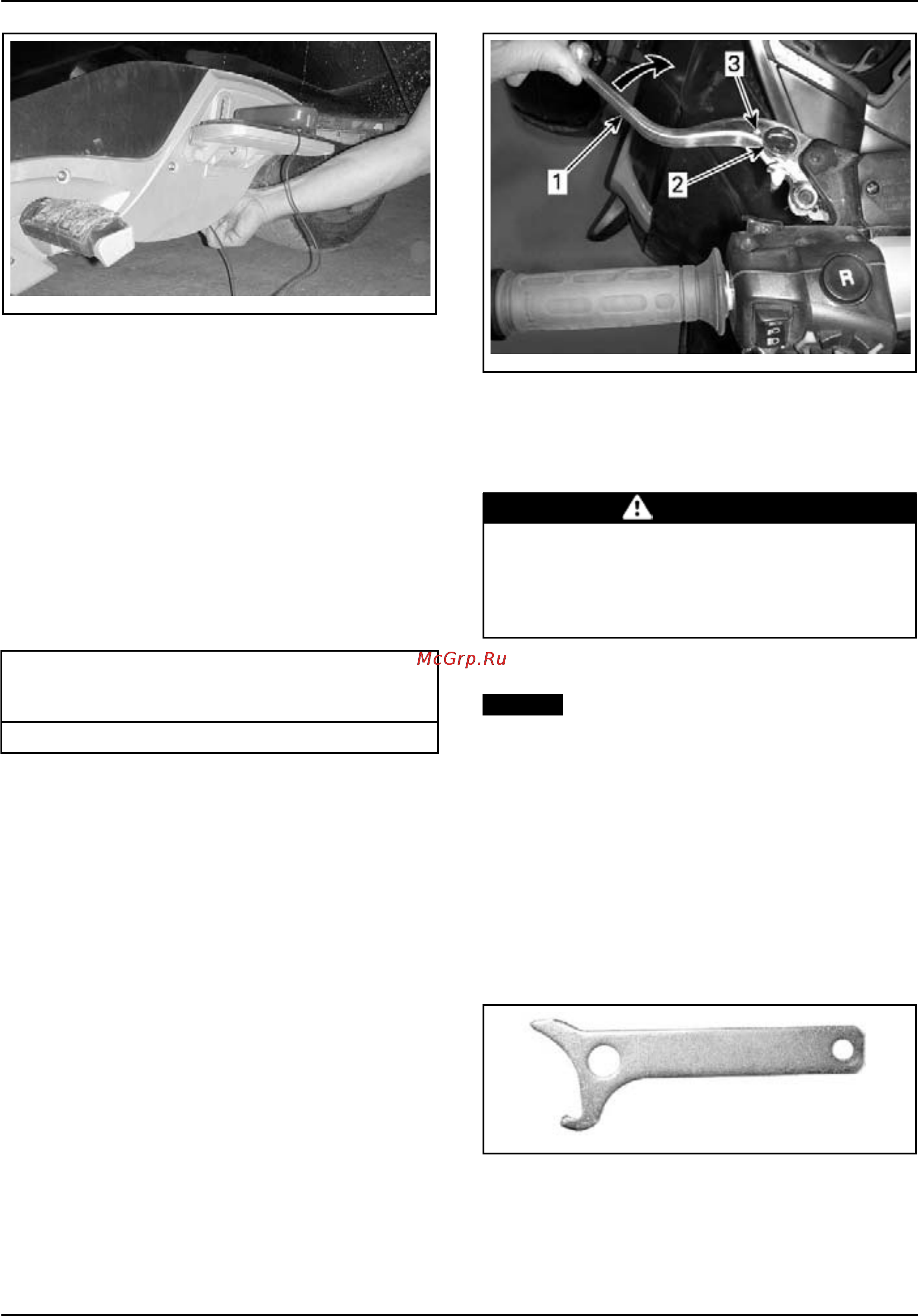

ADJUSTMENTS
rbs2010-006-001
SPYDER RT
8. Tap the belt to make the belt vibrate and read
the measurement.
9. Take a secon
d measurement to confirm the first
one.
10. Note the first value obtained at step 8 if the
measurement at step 9 is within ±25N.
NOTE: If the second value is not within ±25N, re-
peat steps 8 and 9.
11. Repeat mea
surements at every spoke (3
spokes to
tal).
The average of the 3 obtained values (at the 3
spokes) must be within the following range:
DRIVEBELTTENSION
(PARTS AT ROOM TEMPERATURE AND
REAR WHEEL LIFTED)
450N ± 150N
If the tension of drive belt is out of specification,
adjust drive belt as per
DRIVE BELT TENSION AD-
JUSTMENT
. Refer to
DRIVE SYSTEM
section in
the proper
CAN-AM ROADSTER SHOP MANUAL
.
Clutch Lever
NOTE: The distance between the clutch lever and
handgrip can be adjusted from position 1 (greatest
distance) to position 4 (smallest distance).
1. Adjust the clutch lever as per the owner’s pref-
erence.
1.1 Push the clutch lever forward to release
the adjuster dial. Hold in position.
1.2 Turn the adjuster dial to the desired posi-
tion aligning the dial number with the dot
on the lever.
1.3 Release the clutch lever.
rmo2010-001-033_a
CLUTCH LEVER ADJUSTMENT
1. Clutch lever
2. Adjuster dial
3. Dot
Suspension
WARNING
Left and right adjusting cams must always
be set at the same position. Never adjust
one adjusting cam only. Uneven adjustment
can cause poor handling and loss of stability,
which could lead to an accident.
Front Suspension
NOTICE
Before adjusting suspension, lift the
front of vehicle using a jack to extend the sus-
pension. This will ease turning the adjustment
cam and will prevent a potential breakage of
the adjustment plate.
1. Adjust the spring preload as per the owner’s
preference.
1.1 Place the vehicle on a level surface.
1.2 Engage the parking brake.
1.3 Adjust the spring preload by turning the
cam with the adjusting wrench (stored in
the tool kit).
rmr2008-029-002
FRONT SUSPENSION ADJUSTING WRENCH
PREDELIVERY 2010-1 27 / 39
