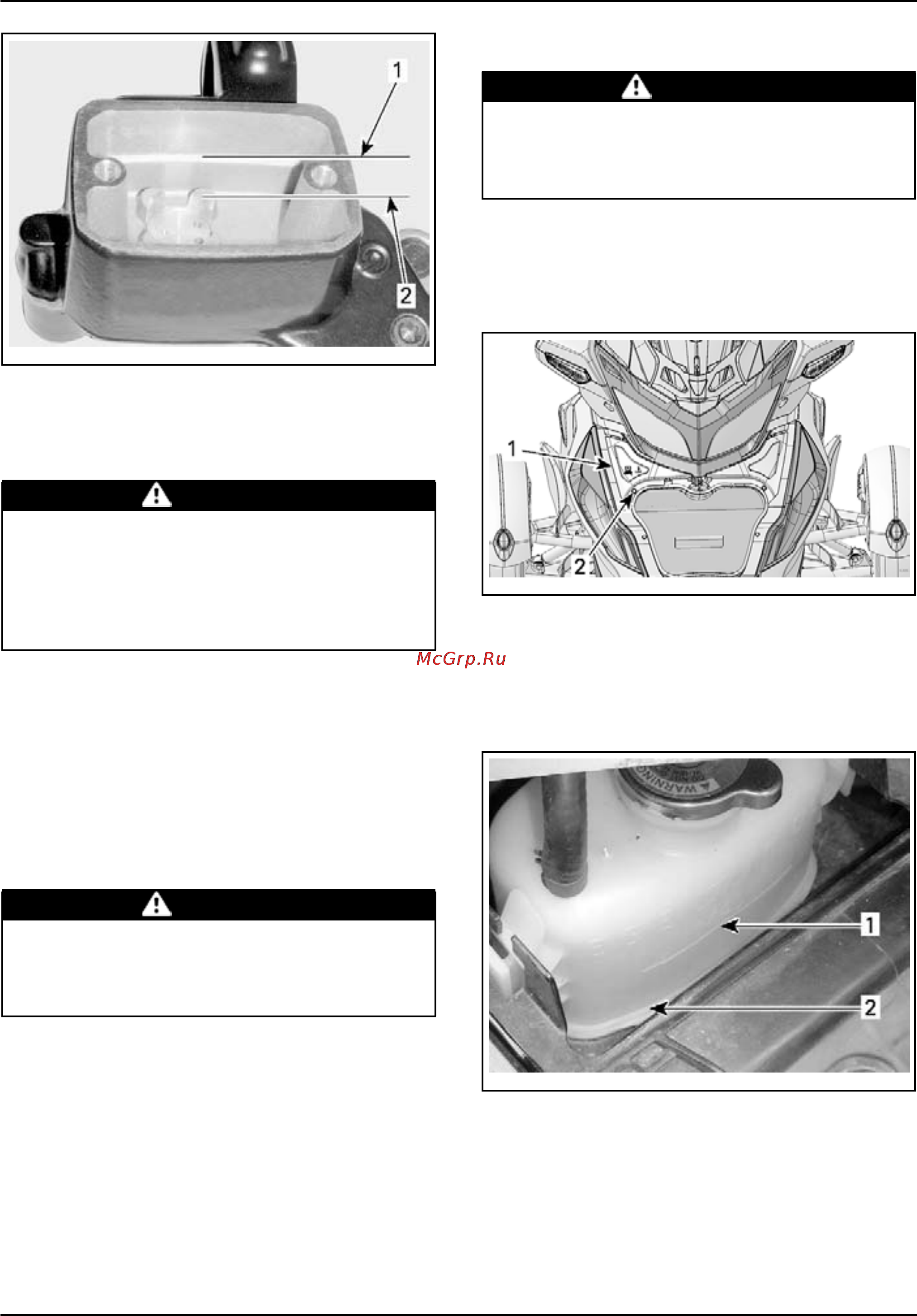

FLUIDS
rmo2010-001-006_a
FLUID REMOVED FOR CLARITY PURPOSE
1. Maximum level line
2. Minimum level (top of protuberance)
9. Add recommended fluid as required. Do not
overfill.
WARNING
Avoid getting brake fluid on skin or in eyes
— it may cause severe burns. In case of con-
tact with the skin, wash thoroughly. In case
of contact with the eyes, immediately rinse
with plenty of water for at least 10 minutes
and then consult a doctor immediately.
10. Immedia
tely wipe up spills if necessary.
11. Ensure that the seal located inside the cap is
collapsed.
12. Reinstall the cap to the reservoir.
13. Tighte
n cap screws.
14. Wipe off reservoir if necessary.
Engine
Coolant
WARNIN
G
When opening the reservoir, the coolant can
be very hot and spray out if the engine is
hot. In order to avoid getting burned, check
coolant level when engine is cold.
Recommended Coolant
The cooling system must be filled with distilled
water and antifreeze solution (50% distilled water,
50% antifreeze).
For best performance, use
BRP PREMIXED
COOLANT (P/N 219 700 362)
Coolant Level Verification
WARNING
When opening the reservoir, the coolant can
be very hot and spray out if the engine is hot.
In order to avoid getting burned, check the
coolant level when the engine is cold.
1. Park the vehi
cle on a firm, level surface.
2. Open the front storage compartment.
3. Remove the plastic rivet from the right service
cover.
rmr2010-038-021_a
1. Right service cover
2. Plastic rivet
4. Lift lower portion of service cover then pull it
toward the front.
5. Check the coolant level. Coolant must be visi-
ble without exceeding the MAX. level mark.
rmo2008-001-039_a
TYPI
CAL
1. Coolant MAX. level mark
2. Coolant must be visible
6. If re
quired, add recommended coolant until it
is v
isible in the reservoir without exceeding the
MAX
. level mark. Use a funnel to avoid spillage.
Do n
ot overfill.
7. Reinstall the service cover.
24 / 39 2010-1 PREDELIVERY
