Can-Am Spyder RT SM5 2010 [18/39] Mudguards
![Can-Am Spyder RT SM5 2010 [18/39] Mudguards](/views2/1012801/page18/bg12.png)

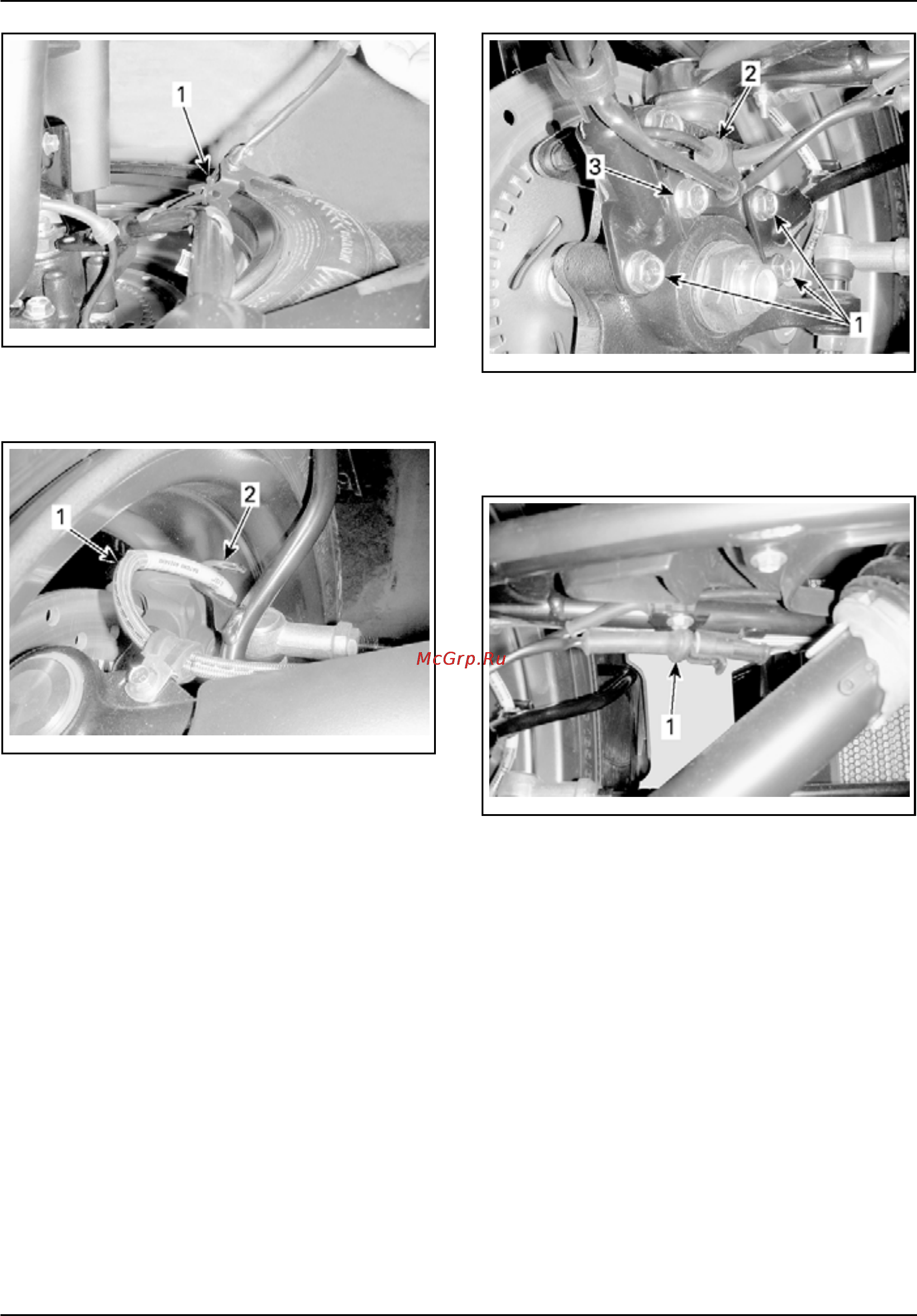

PARTS TO BE INSTALLED
rbl2010-002-024_a
1. Locking tie
2. Position front fender on vehicle.
3. Route front brake hose on fender hook.
rbl2010
-002-025_a
1. Brake hose
2. Fender ho ok
4. Instal
l 3 fender screws (from PDI kit) by hand to
hold fe
nder in place, refer to illustration.
5. Align harness bracket on the remaining hole
then install a fender screw (from PDI kit).
6. Torque all fender screws to 24 N•m (18 lbf•ft).
7. Prope
rly insert cable grommets on harness
brack
et.
rbl2010-002-026_a
1. Fender screws to hold fender
2. Harness bracket
3. Fender screw to ho ld harness bracket and fender
8. Connect fender light connector on vehicle.
9. Secure connector to vehicle.
rbl2010-002-027_a
1. Fender
light connecto r
10. Carry out the same procedure for the other
side.
Mudguards
1. From inside mudguards, check for proper loca-
tion (LH or RH side).
18 / 39 2010-1 PREDELIVERY
