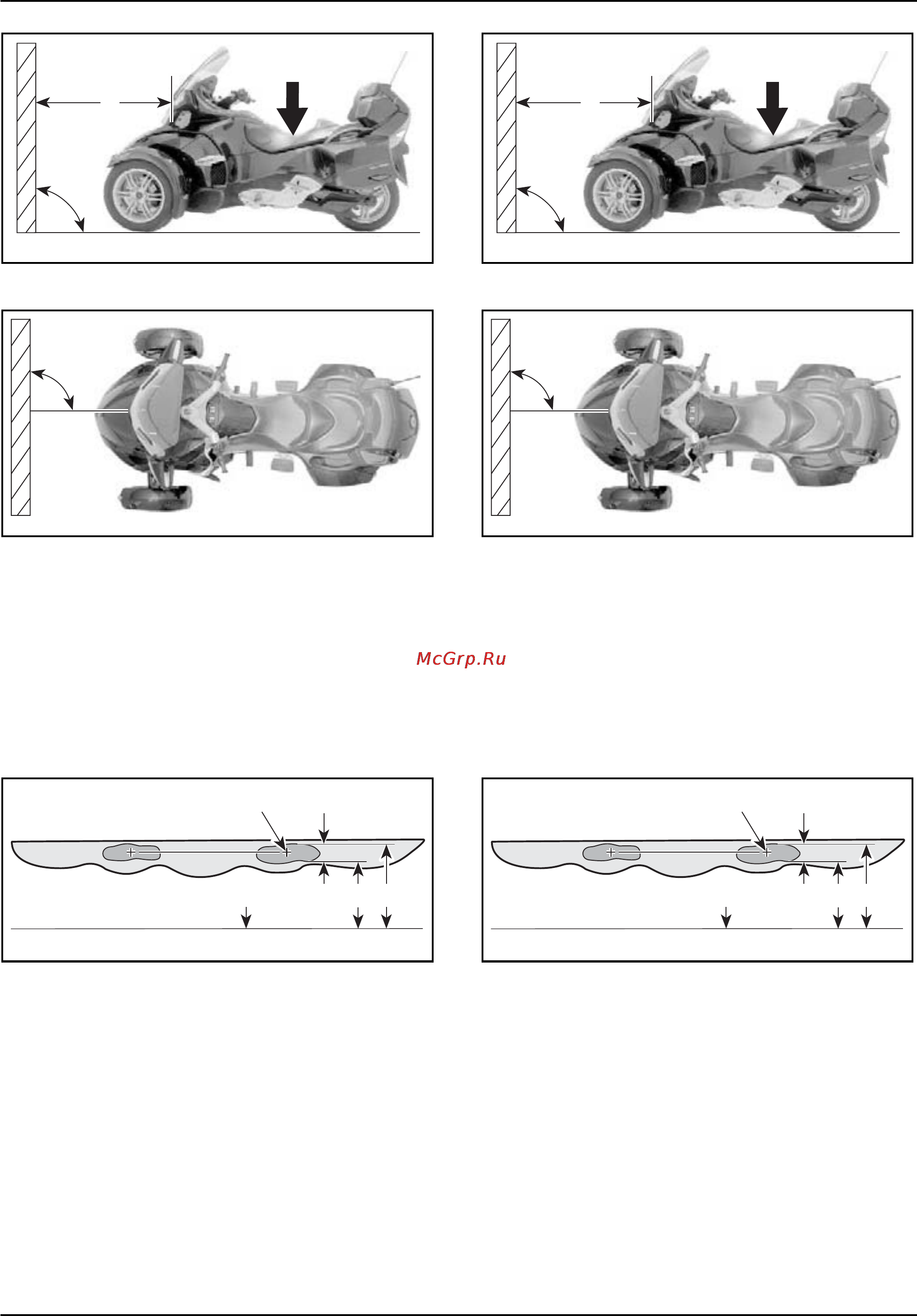

ADJUSTMENTS
B
90°
A
rmo2010-001-007_a
A. 10 m (33 ft)
B. 91 kg (200 lb)
90°
rmo2010-001-008_a
2. On the test surface, trace a mark at 642 mm
(25.3 in) above ground then another at 732 mm
(28.8 in).
3. Have someone weighing at least 91 kg (200 lb)
sit on the operator's position.
4. Select low beam.
5. Beam aiming is correct when the focus point
(brightest spot) of the headlight reflection is
within the marks.
1
2 3
A
B
rmo2010-001-302_a
TYPICAL REFLECTION ON SURFACE TEST
1. Groun
d
2. Focus point
3. Fo cus p oint within the marks
A. Mark a
t 642 mm (25.3 in) above ground
B. Mark at 732 mm (28.8 in) above ground
CE M odels (Low Beam)
NOTE: This verification is valid for either left-hand
or right-hand traffic regulations.
1. Posi
tion the vehicle 10 m (33 ft)in front of a test
surf
ace (wall or screen).
B
90°
A
rmo2010-001-007_a
A. 10 m (33 ft)
B. 91 kg (200 lb)
90°
rmo2010-001-008_a
2. On the test surface, trace a mark at 415 mm
(16.3 in) above ground then another at 515 mm
(20.3 in).
3. Have someone weighing at least 91 kg
(200 lb)sit on the operator's position.
4. Select low beam.
5. Beam aiming is correct when the focus point
(brightest spot) of the headlight reflection is
within the marks.
1
2 3
A
B
rmo2010-001-302_a
TYPICAL HEADLIGHT REFLE CTION ON SURFACE TEST
1. Groun
d
2. Focus point
3. Focus point within the marks
A. Mark a
t 415 mm (16.3 in) above ground
B. Mark at 515 mm (20.3 in) above ground
CE M odels (High Beam)
NOTE: As the low beam and high beam are sep-
arate units, this verification is valid for either left-
hand or right-hand traffic regulations.
Follo
w the same procedure as per the low beam
but s
elect the high beam.
PREDELIVERY 2010-1 29 / 39
