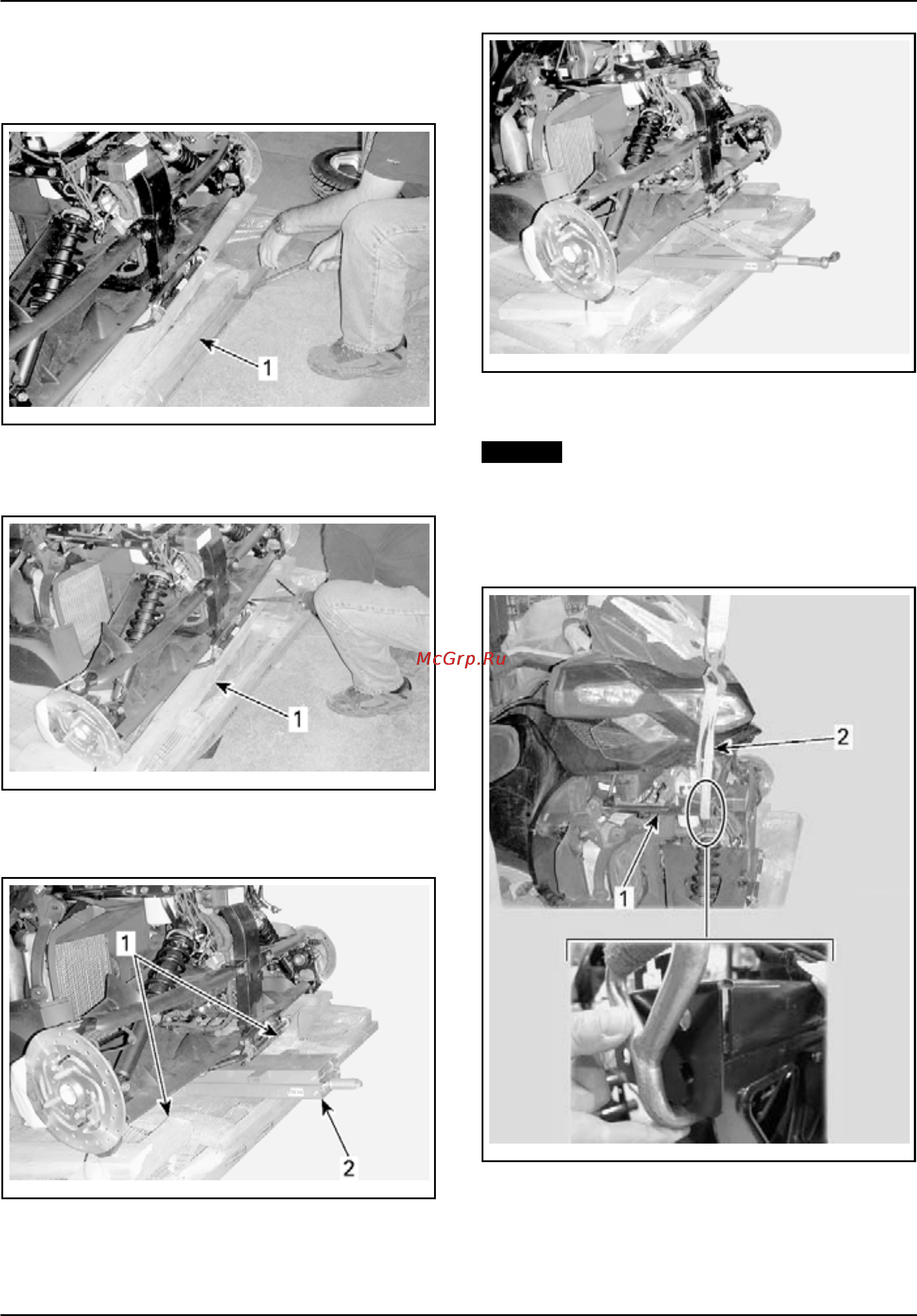

UNCRATING
Conventional Method
1. Remove top crate board located at the front of
vehicle.
rbl2010-002-013_a
1. Stud to remove
2. Cut second
crate board located at the front of
vehicle us
ing a proper saw.
rbl2010-002-014_a
1. Stud to cut
3. Install a jack under the front lower beam of
frame.
rbl2010-002-015_a
1. Stu
d that was cut
2. Hydraulic jack
4. Lift the vehicle.
rbl2010-002-016
5. Refer to
FRONT WHEELS INSTALLATION
(CONTINUED)
to complete the procedure.
NOTICE
Never lift vehicle by the suspension
arm.
Alter nate
Method
1. Install proper straps on RH and LH lateral sup-
ports of vehicle.
rbl2010-002-020_a
1. RH lateral support
2. Proper strap
2. Hook straps on an appropriate lifting kit.
3. Lift vehicle using a chain block.
6 / 39 2010-1 PREDELIVERY
