Overview
5
Is housed in a compact, Kramer TOOLS™ enclosure which can be mounted
side by side in a 19-inch rack using suitable rack adapters

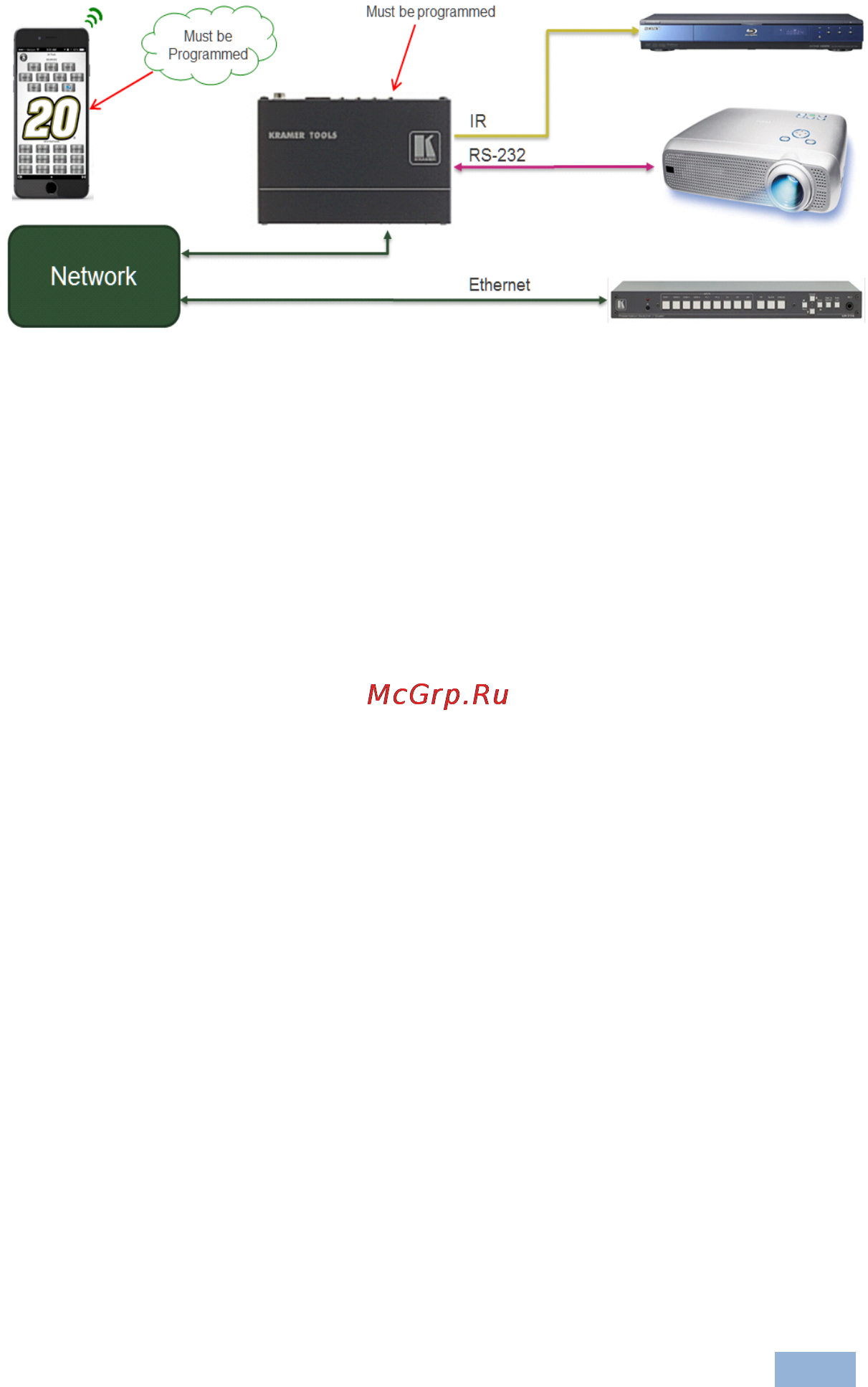

Figure 1: FC-26 Controlling Devices Remotely Using K-Touch 3.0 over a LAN
Using K-Touch you can design advanced room-control and automation systems
that can be operated from iOS or Android touch devices. K-Touch can be used to
perform device discovery over the network as the FC-26 is set to be a DHCP client
by default.
You can use the Kramer LAN Configurator software to discover devices that are
attached to the network, including the FC-26.
The FC-26 includes the Virtual Serial Port Manager (Kramer VSPM) for
compatibility with applications based on COM-port communication. Virtual Serial
Port Manager:
Makes the FC-26 compatible with all Windows
®
-based applications which
require a physical COM port. This includes all versions of K-Router and
other Kramer control applications. It lets you operate all RS-232 controllable
devices via an Ethernet LAN using their existing PC software
Allows virtual serial ports to operate like physical COM ports, that is, logical
COM ports that behave exactly like a standard hardware COM port. In
reality, it transparently reroutes the data using the TCP/IP network to the
FC-26 interface via a virtual connection which you can emulate over the
Ethernet or Internet
Allows the creation of any number of serial ports on your PC which do not
occupy any physical serial ports
