Remote Operation via the Web Pages

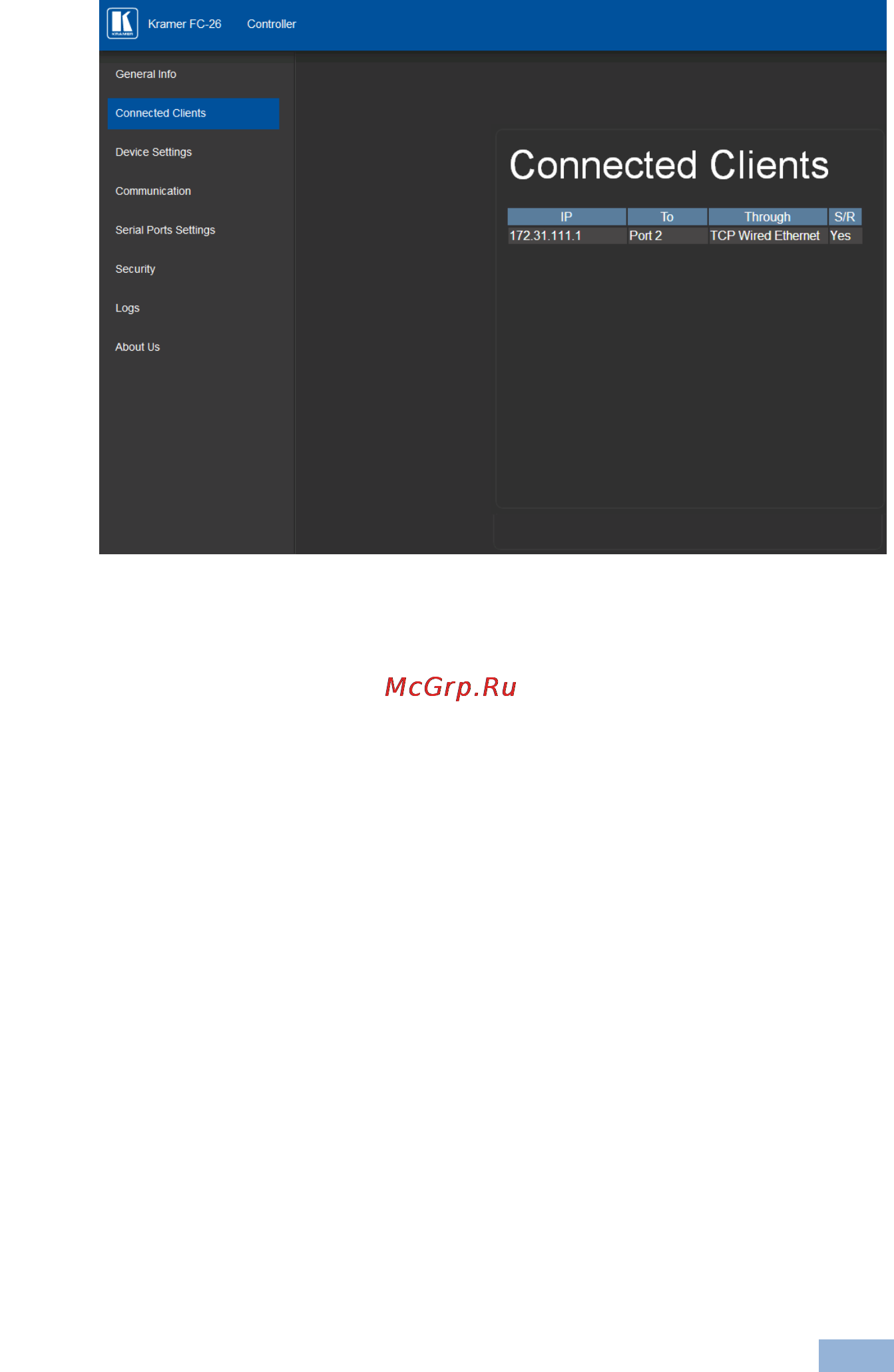

Figure 12: Connected Clients Page

7.3 Device Settings Page

The Device Settings page allows you to view the model name and time server

status. You can also modify the following fields:

 Device name

 Device time, date, and time zone

 Use a timeserver to set the time and date automatically using a (if the device

is connected to the Internet), including the Time Zone and daylight savings

time
