Remote Operation via the Web Pages

7.6 IR Command Learner Page

The IR Command Learner page allows you to teach the FC-26 IR commands.

These can be saved for later use.

Note: While learning is in progress, the four IR Out LEDS light and the FC-26 is

not available for normal operation.

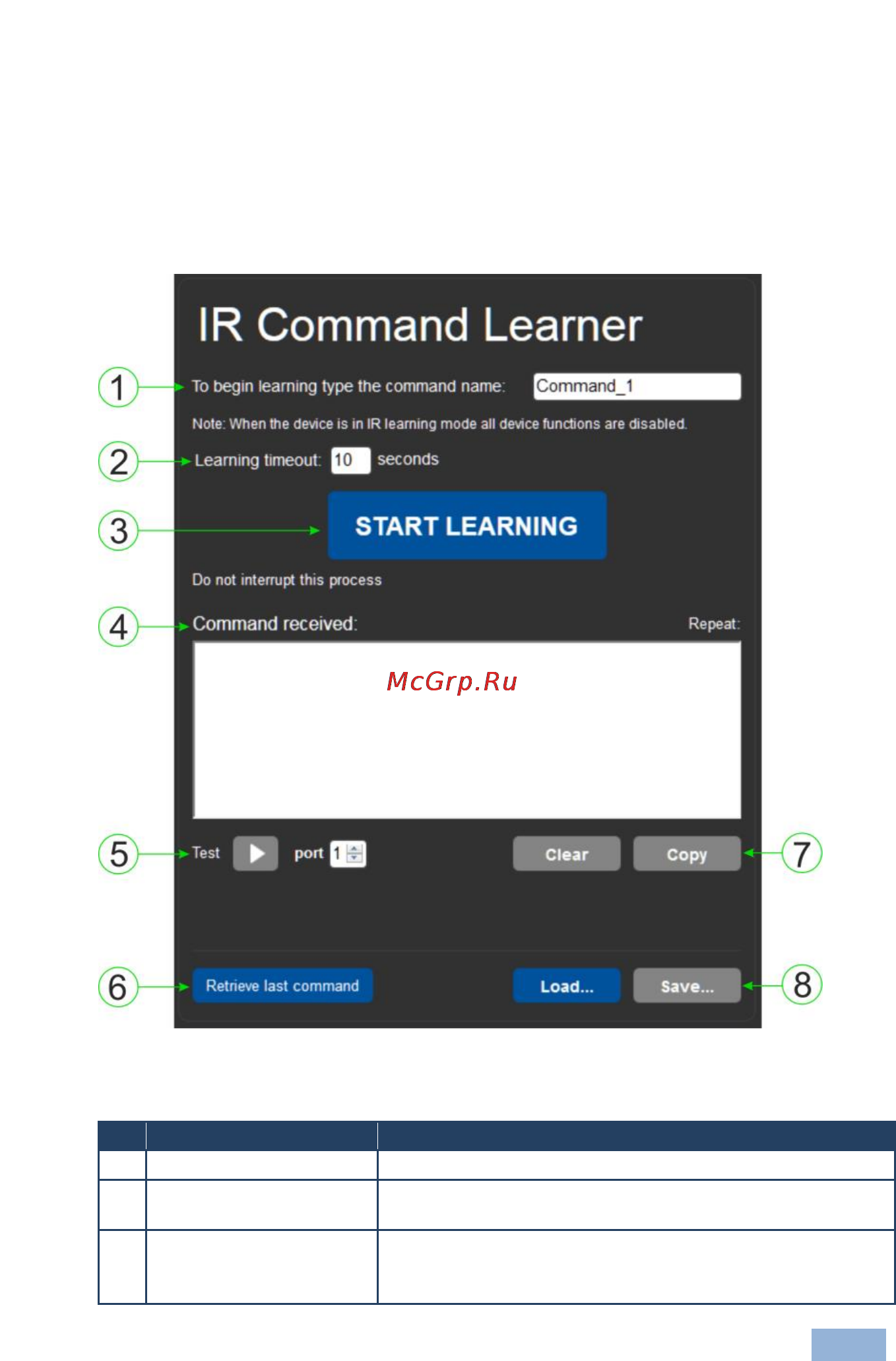

Figure 16: IR Command Learner Page

Feature

Function

Command Name Field

Enter the required name for the command

Learning Timeout

Set the time that will elapse before the learning mode is

exited if no command is received

Start Learning Button

Press to start the learning process.

Note: While learning is in progress, the four IR Out LEDS

light and the FC-26 is not available for normal operation.
