Connecting the FC-26

6 Connecting the FC-26

Always switch off the power to each device before connecting it to your

FC-26. After connecting your FC-26, connect its power and then switch

on the power to each device.

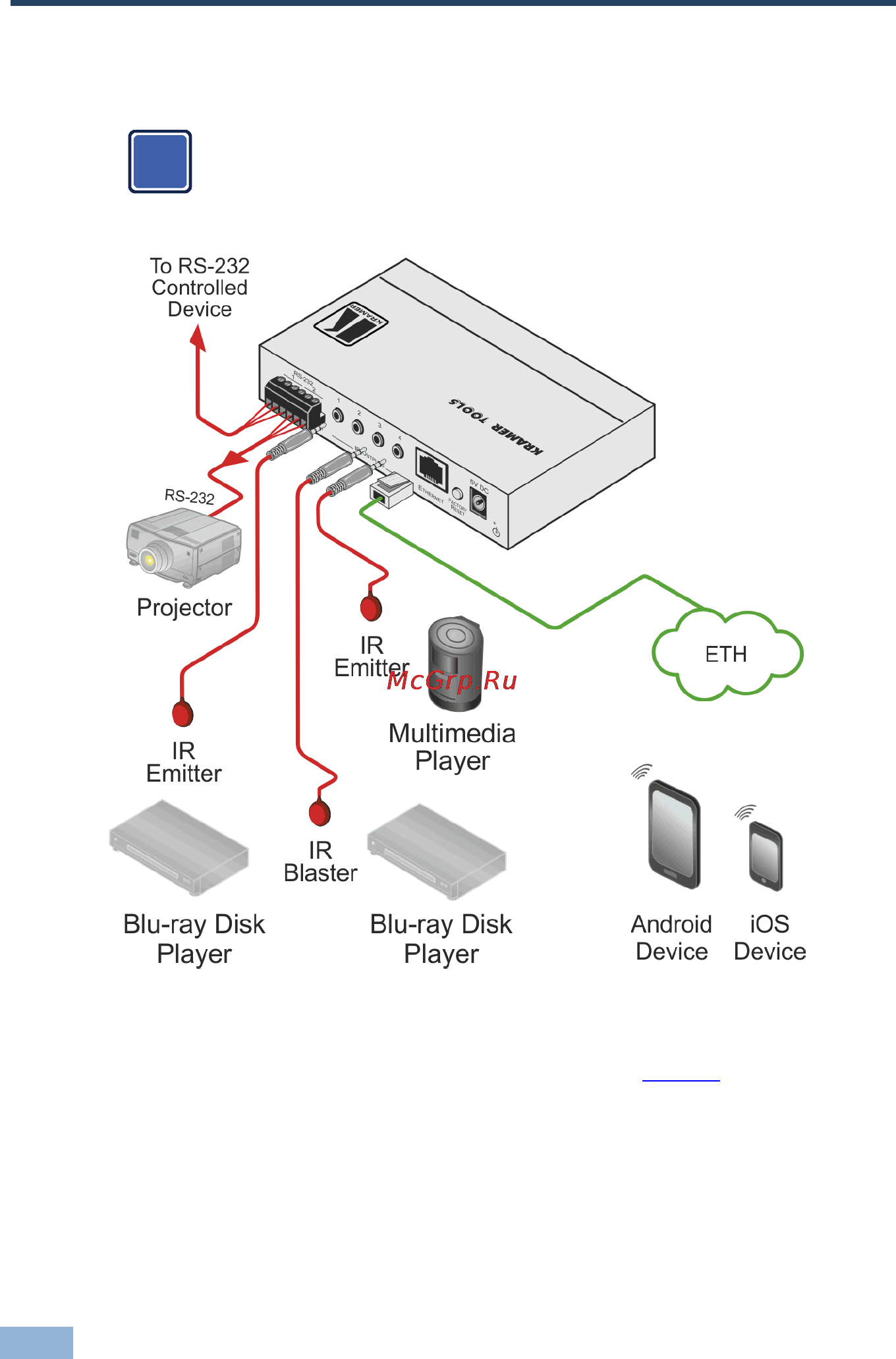

Figure 6: Connecting the FC-26 Ethernet Controller

To connect the FC-26 as illustrated in the example in Figure 6:

1. Connect the device to a LAN or PC via the RJ-45 Ethernet connector.

2. Connect up to two serially controlled devices, (for example, the control port

of a switcher and a projector) to the 3-pin, RS-232 terminal blocks.
