Initial Configuration and Use Overview
9
5 Initial Configuration and Use Overview
This chapter provides an overview of the initial configuration and basic operation
of the FC-26 and comprises:
Configuring the FC-26 (see Section 5.1)
Configuring a virtual port on the PC (see Section 5.2)
Configuring an Ethernet connection on the PC (see Section 5.3)

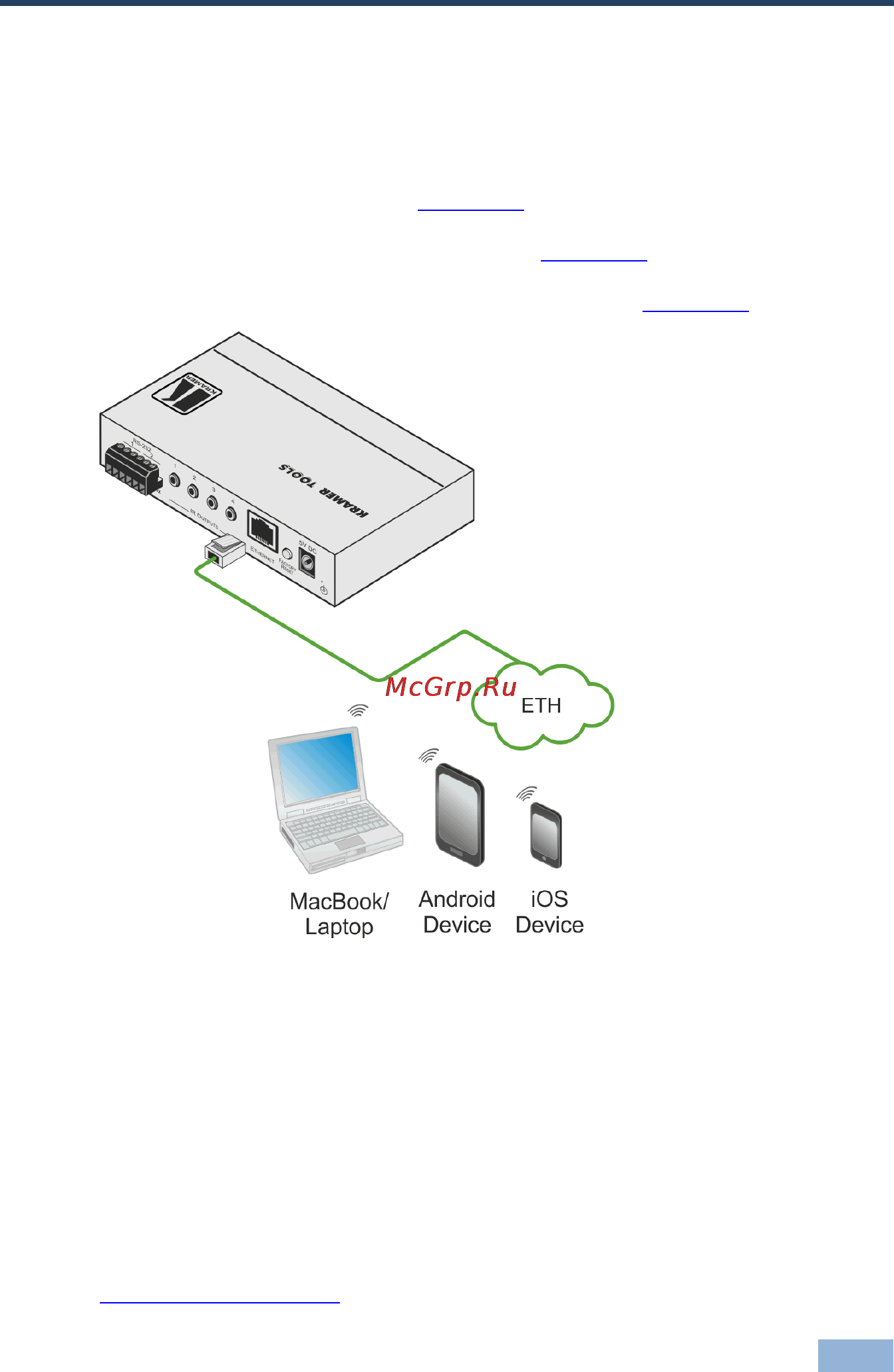

Figure 4: Connecting the FC-26 for Initial Configuration
5.1 Configuring the FC-26 Ethernet Controller
Note: The FC-26 is dispatched from the factory with DHCP enabled and a random
IP address. This means that in order to connect to the FC-26 on first installation,
you need to identify what IP address has been automatically assigned to the
FC-26. This can be done by using K-LAN Configurator to discover the IP address
of the FC-26. This is available for download from our website at
http://www.kramerav.com.
