Kramer FC-26 [28/68] Communication page

Remote Operation via the Web Pages

7.4 Communication Page

The communication page allows you to:

 Turn DHCP for the device on and off

 Edit the IP settings for static IP addressing

Note: The default IP address setting for the device is DHCP.

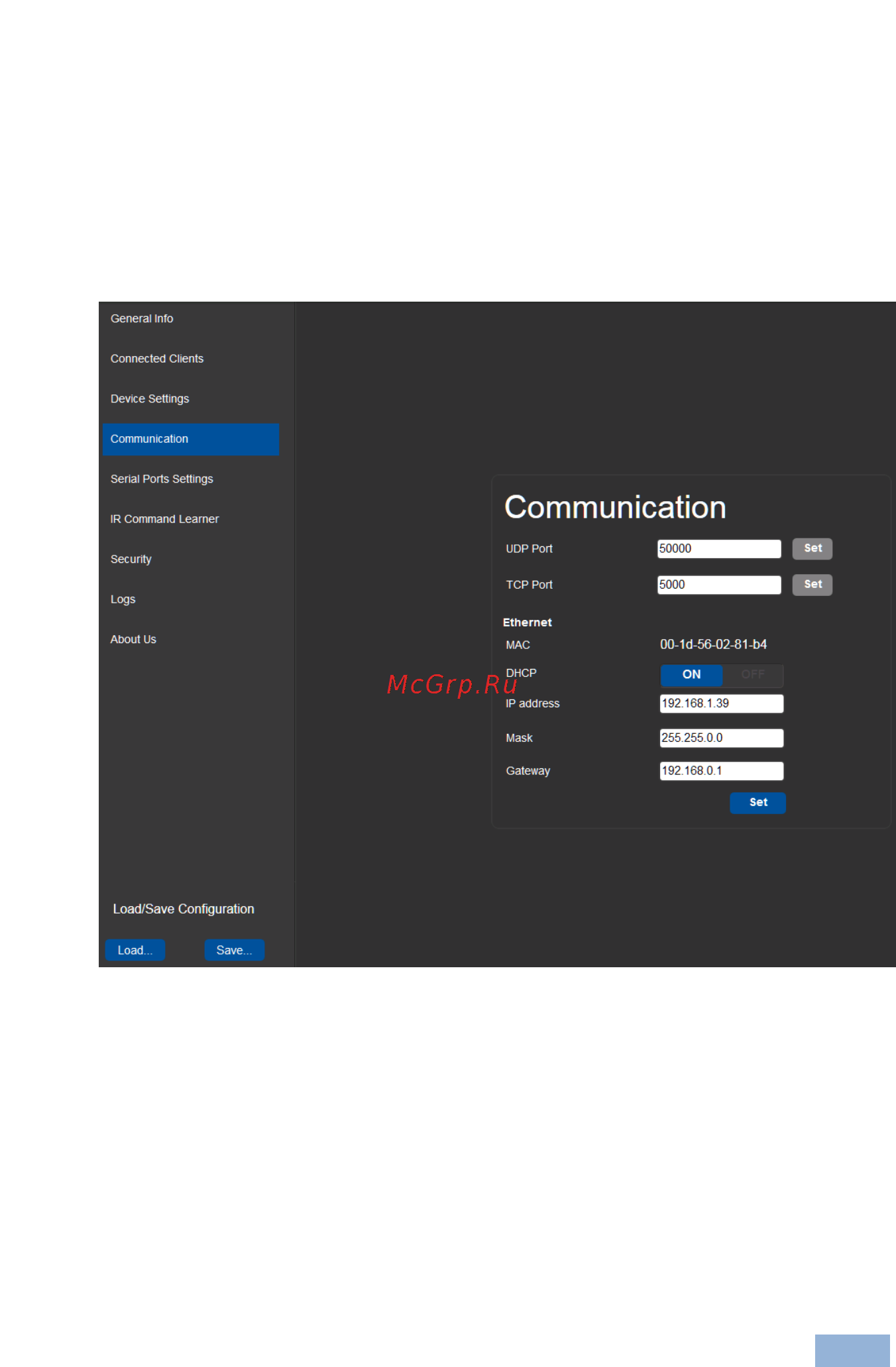

Figure 14: Communication Page

After modifying any of the IP settings, click Set to save the changes.
