8
Defining the FC-26 Ethernet Controller

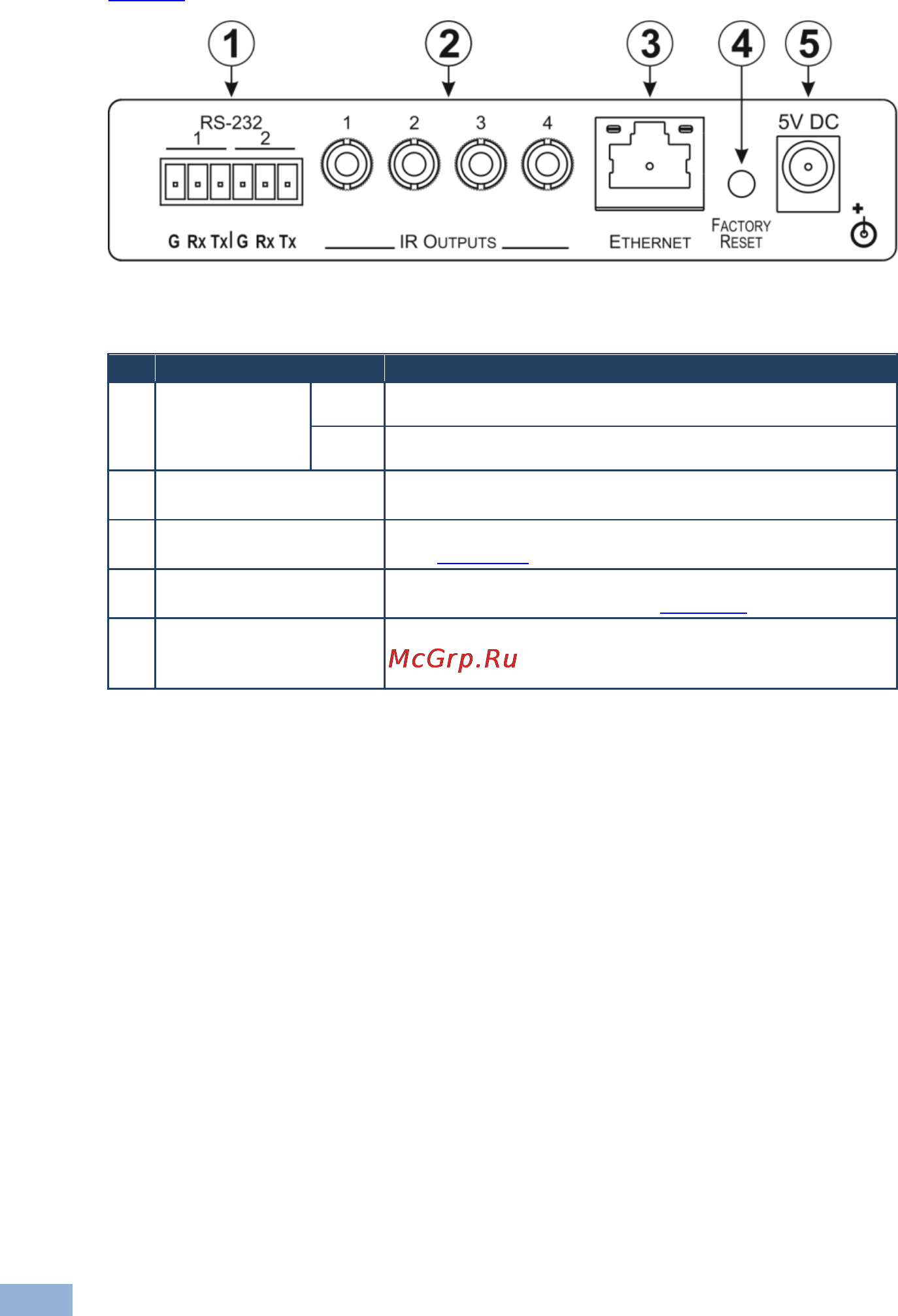

Figure 3 defines the rear panel of the FC-26.
Figure 3: FC-26 Ethernet Controller Rear Panel
#
Feature
Function
1
RS-232 6-pin
Terminal Block
1
Connect to the first RS-232 controlled device
2
Connect to the second RS-232 controlled device
2
IR OUTPUTS 1 ~ 4
3.5mm Mini Jacks
Connect to IR blasters/emitters using cables up to 80 m
(260ft) long
3
ETHERNET RJ-45
Connector
Connect to a PC or other controller directly or via a LAN
(see Section 6.1)
4
FACTORY RESET
Button
Press and hold while power-cycling the device to reset to
factory default parameters, (see Section 10)
5
5V DC Connector
Connect to the 5V DC power supply, center pin positive.
Not needed when the device is supplied power by a PoE
provider
