Connecting the FC-26

5. Select Use the following IP Address for static IP addressing and fill in the

details as shown in Figure 10.

For TCP/IPv4 you can use any IP address in the range 192.168.1.1 to

192.168.1.255 (excluding 192.168.1.39) that is provided by your IT

department.

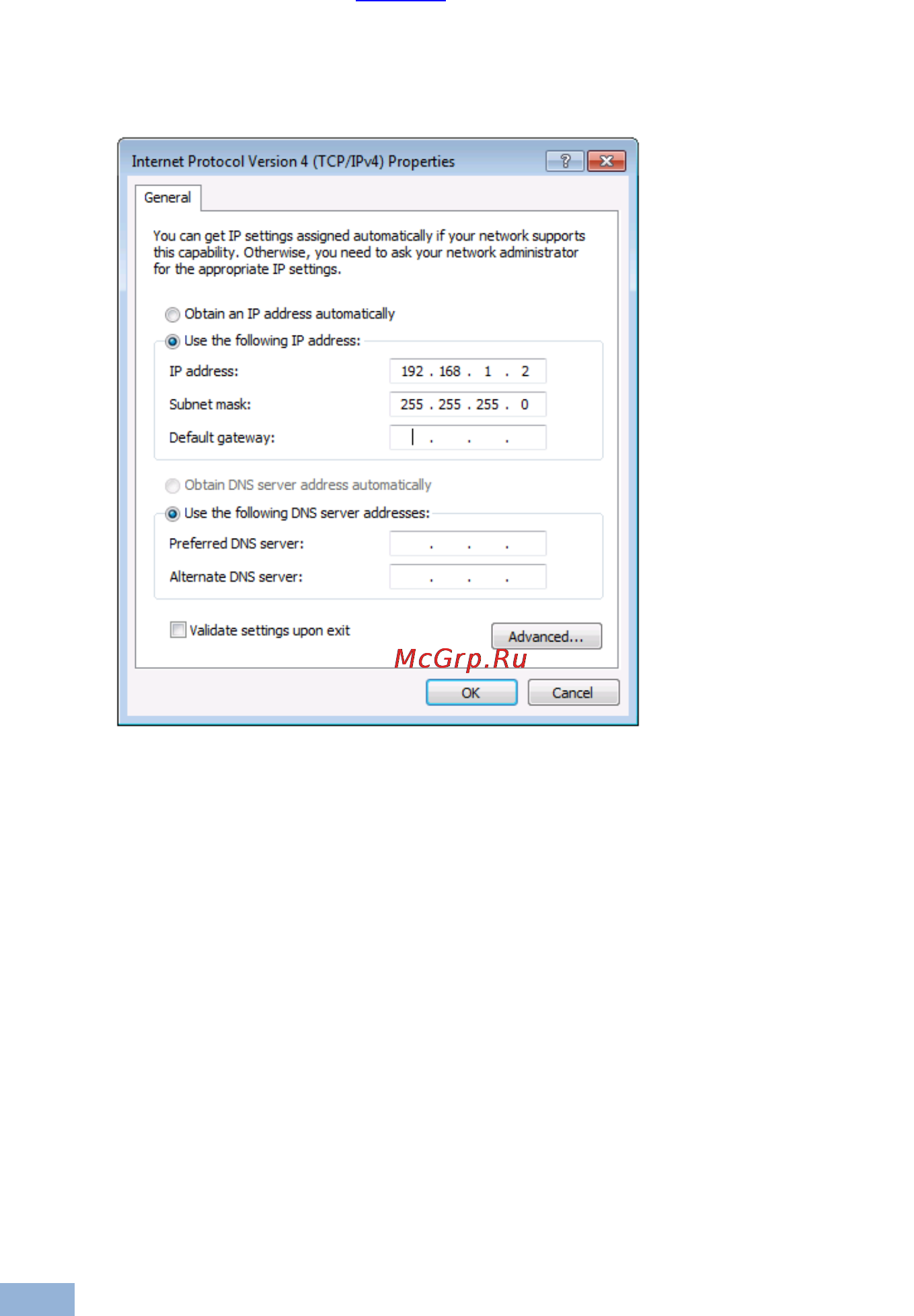

Figure 10: Internet Protocol Properties Window

6. Click OK.

7. Click Close.

6.1.2 Connecting the Ethernet Port via a Network Hub or Switch

You can connect the Ethernet port of the FC-26 to the Ethernet port on a network

hub or using a straight-through cable with RJ-45 connectors.
