Kramer FC-26 [24/68] Loading and saving configurations

Remote Operation via the Web Pages

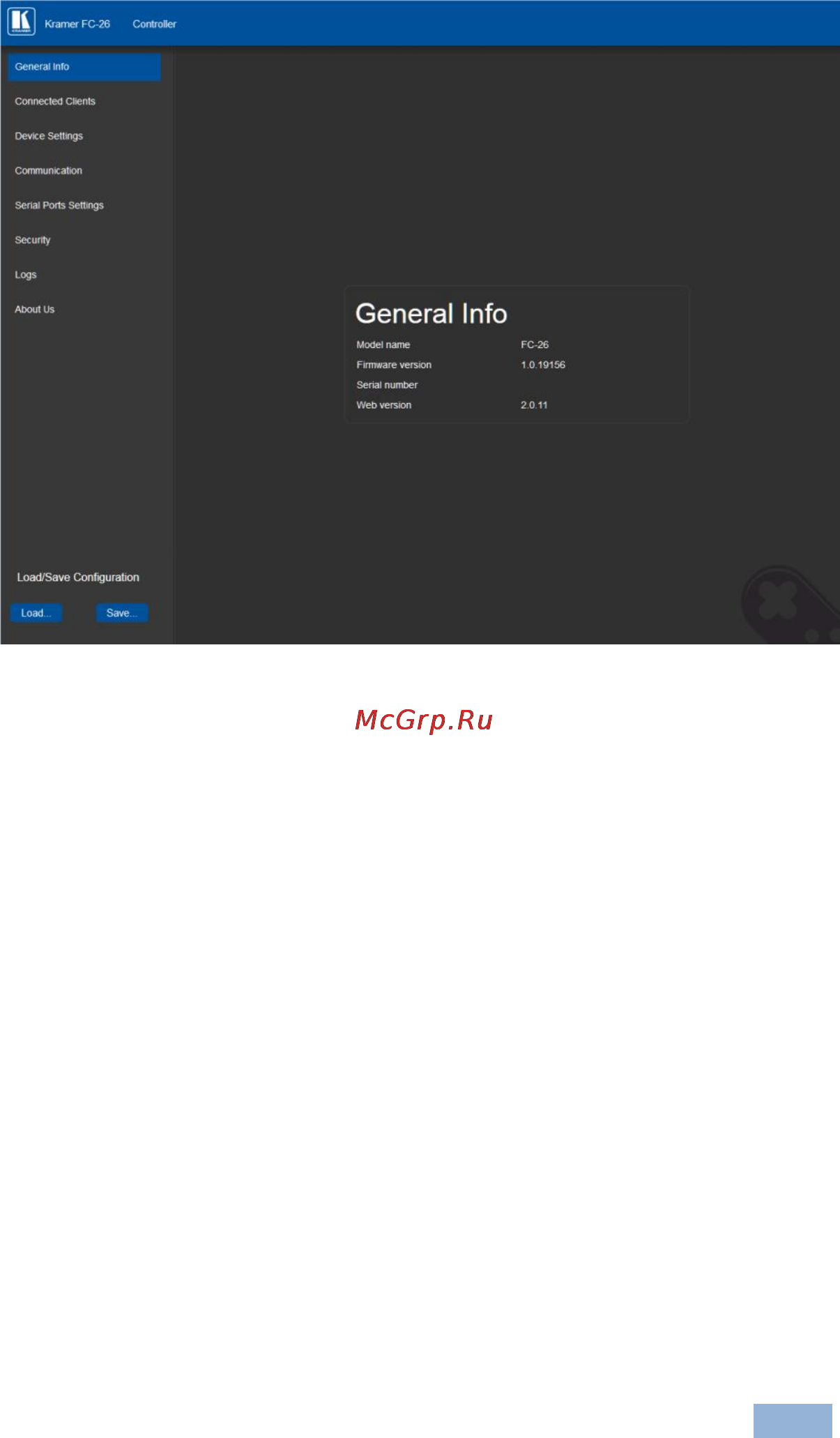

Figure 11: General Info Page

7.1.1 Loading and Saving Configurations

Loading and saving configurations can be performed using the buttons at the

bottom left-hand side of the screen irrespective of which page is displayed.

To load a configuration:

1. Click Load.

The Explorer window opens.

2. Browse to the required file.

3. Select the required file and click Open.

The device is configured according to the saved preset.
