Remote Operation via the Web Pages

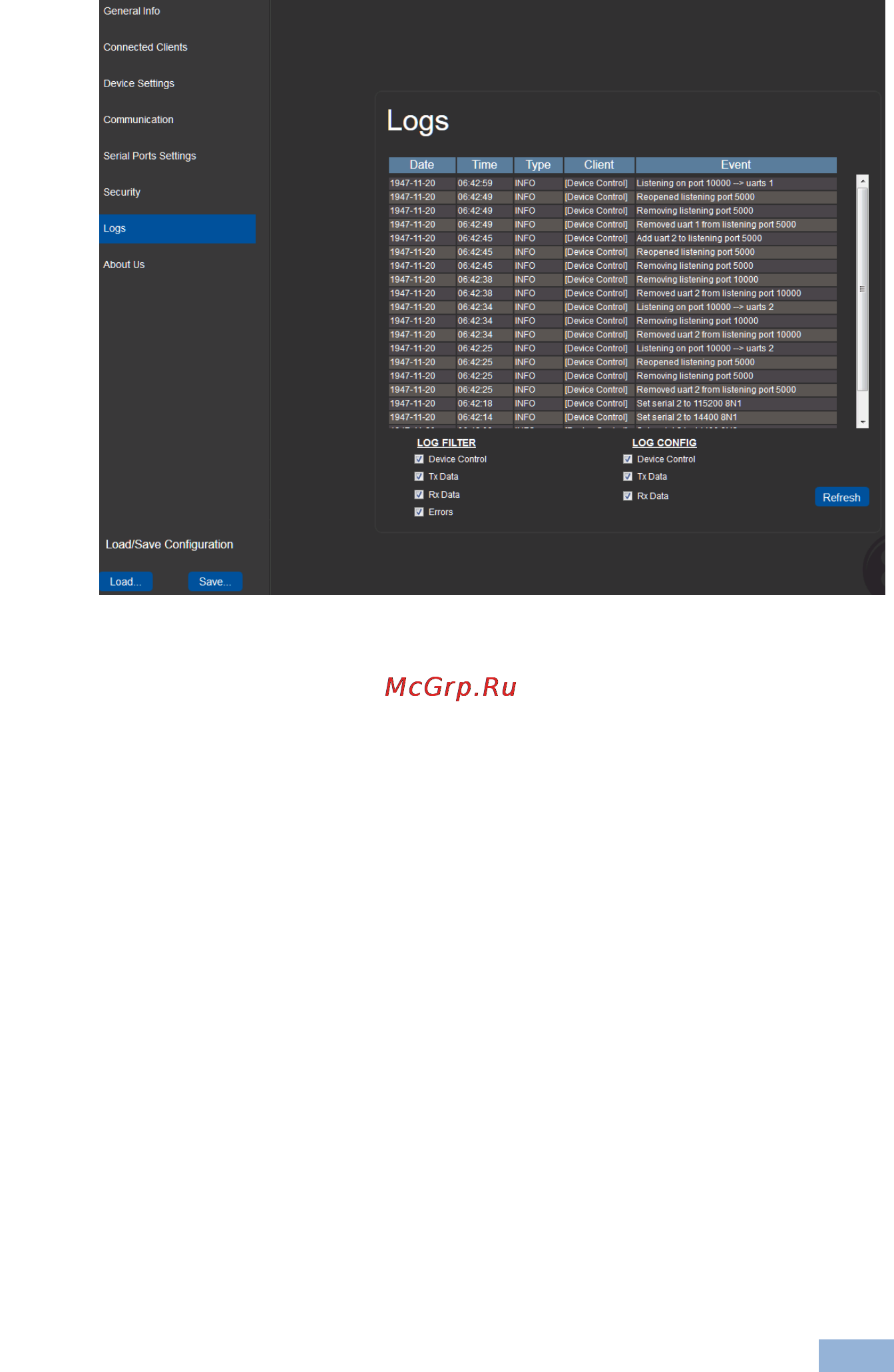

Figure 21: Logs Page

The display may not update automatically. Click Refresh to update the display.

Use the Log Filter check-boxes to select which events to display from the log. Use

the Log Config check-boxes to select which events are recorded.

7.9 About Us Page

The About Us page displays the Web page version and the Kramer company

details.
