Remote Operation via the Web Pages

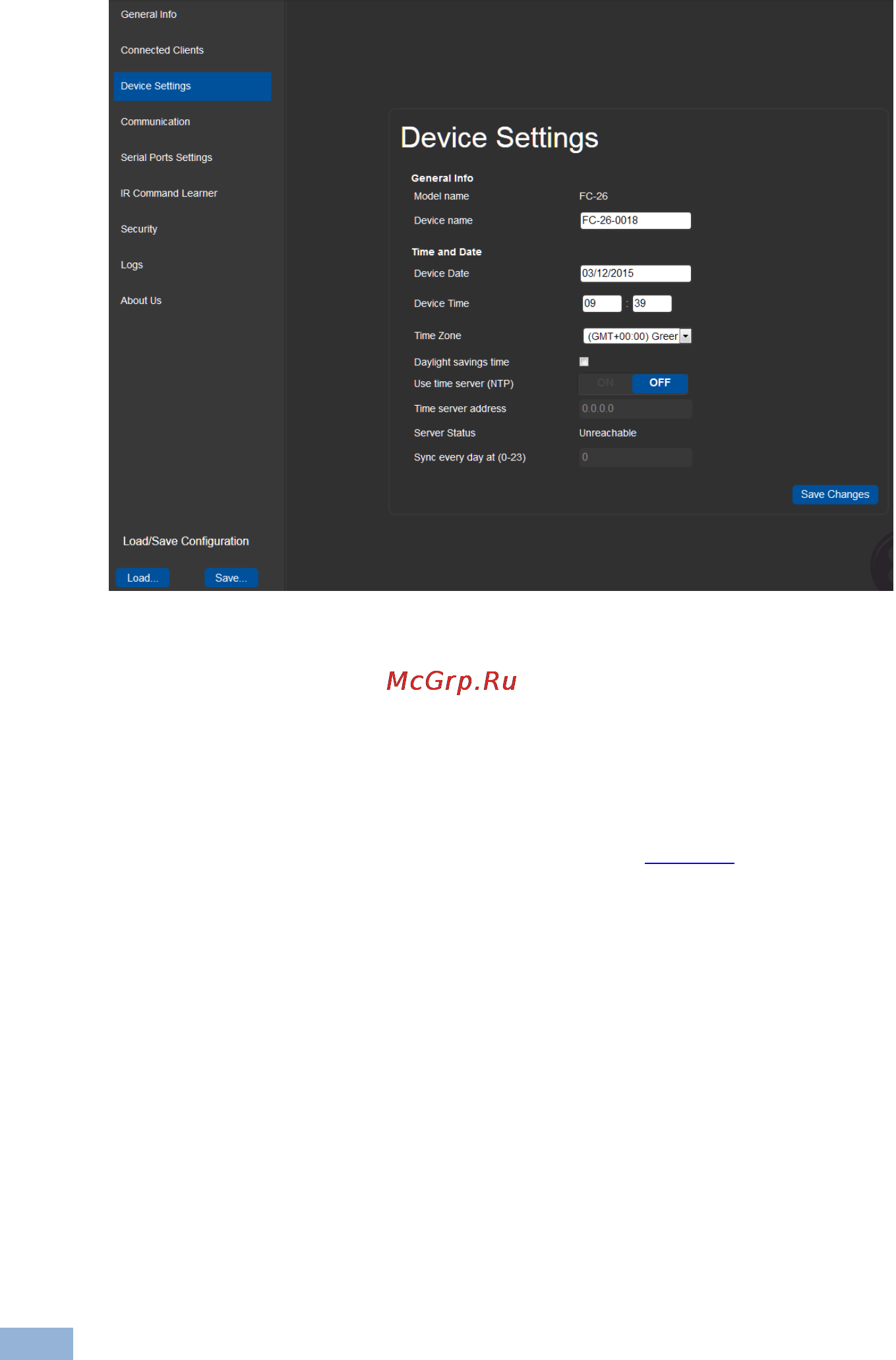

Figure 13: Device Settings Page

The FC-26 has a built-in clock that can synchronize with a Time Server if required.

To enable Time Server synchronization:

1. Browse to the Device Settings page by clicking Device Settings.

The Device Settings page is displayed as shown in Figure 13.

2. Click the Use Time Server ON button.

3. Enter the IP address of the Time Server.

4. Enter the time of day at which the FC-26 should synchronize with the Time

Server.

5. Click Save Changes.
