Chapter 4: Motherboard information
4-14

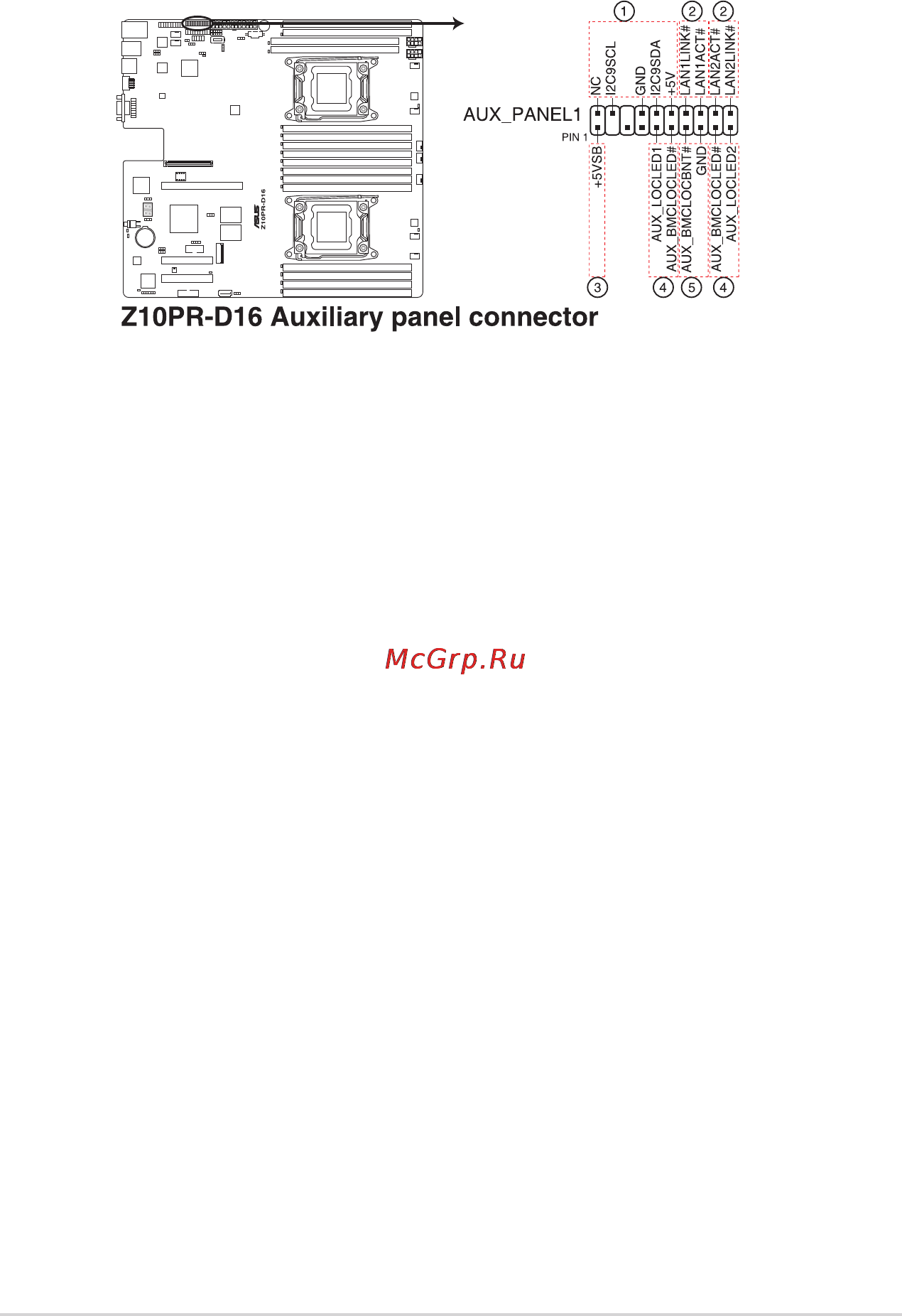

11. Auxiliarypanelconnector(20-2pinAUX_PANEL1)
This connector is for additional front panel features including front panel SMB, locator
LEDandswitch,chassisintrusion,andLANLEDs.
1. FrontpanelSMB(10-2pinFPSMB)
These connectors are for the front panel SMBus cable.
2. LANactivityLED(2-pinLAN1_LINKACTLED,LAN2_LINKACTLED)
TheseconnectorsareforGigabitLANactivityLEDsonthefrontpanel.
3. Locator LED (2-pin LOCATORLED1, LOCATORLED2)
These connectors are for the locator LED1 and LED2 on the front panel. Connect
theLocatorLEDcablestothese2-pinconnector.TheLEDswilllightupwhenthe
Locator button is pressed.
4. LocatorButton/Switch(2-pinLOCATORBTN#)
Theseconnectorsareforthelocatorbuttononthefrontpanel.Thisbuttonqueries
the state of the system locator.
