ASUS RS400-E8-PS2, RS400-E8-PS2-F
4-15

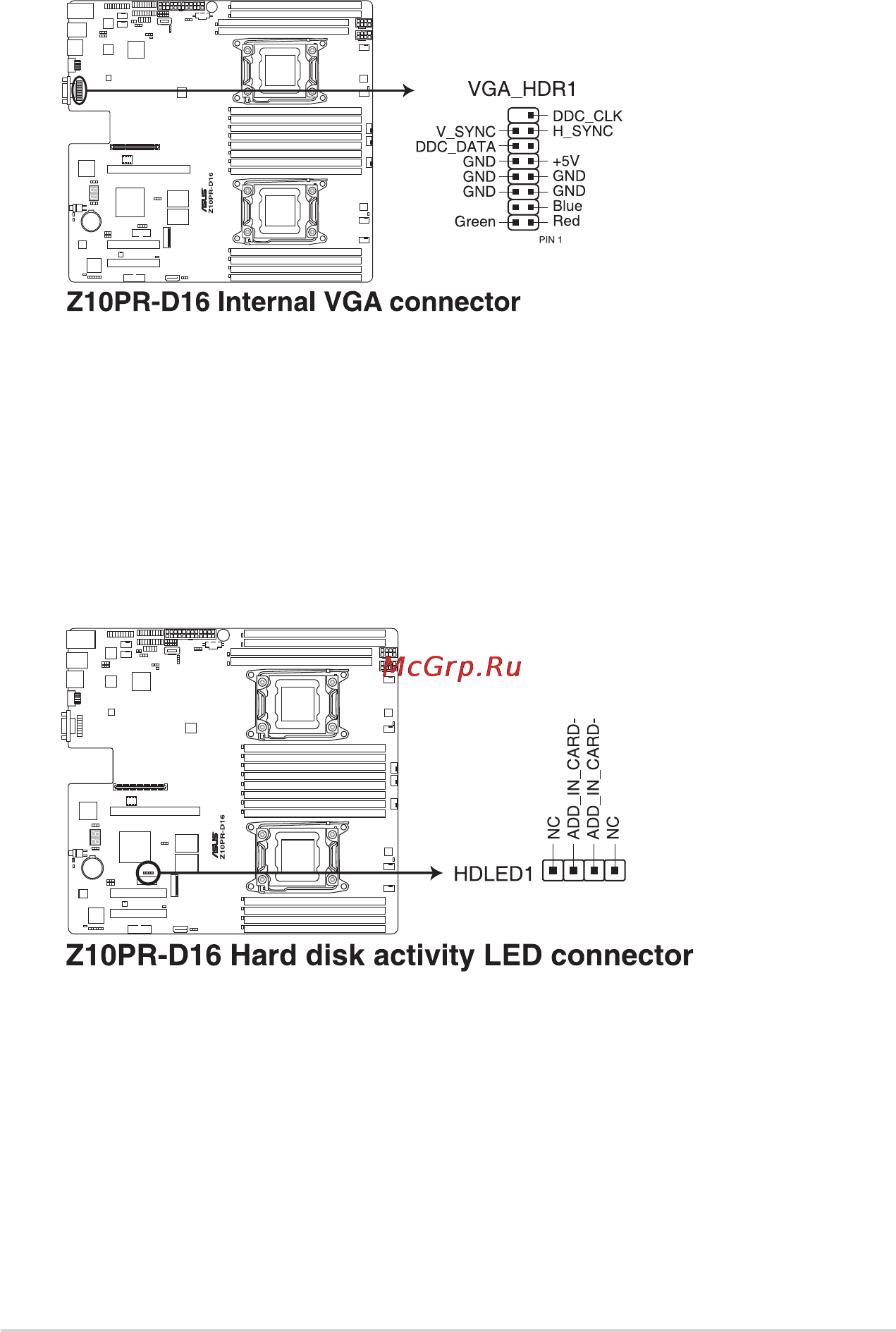

12. VGA connector (10-1 pin VGA_HDR1)
This connector supports the VGA High Dynamic-Range interface.
13. HarddiskactivityLEDconnector(4-pinHDLED1)
This LED connector is for the storage add-on card cable connected to the SATA or
SASadd-oncard.ThereadorwriteactivitiesofanydeviceconnectedtotheSATAor
SAS add-on card causes the front panel LED to light up.
