Chapter 4: Motherboard information
4-16
15. ISATA&ISSATAconnectors(ISATA;ISSATA)
TheISATAconnector(AHCI)supports4SATA6Gb/sportsandIntelRAID/LSI
MegaRAID.
TheISSATAconnector(AHCI)supports4SATA6Gb/sportsandIntelRAID.

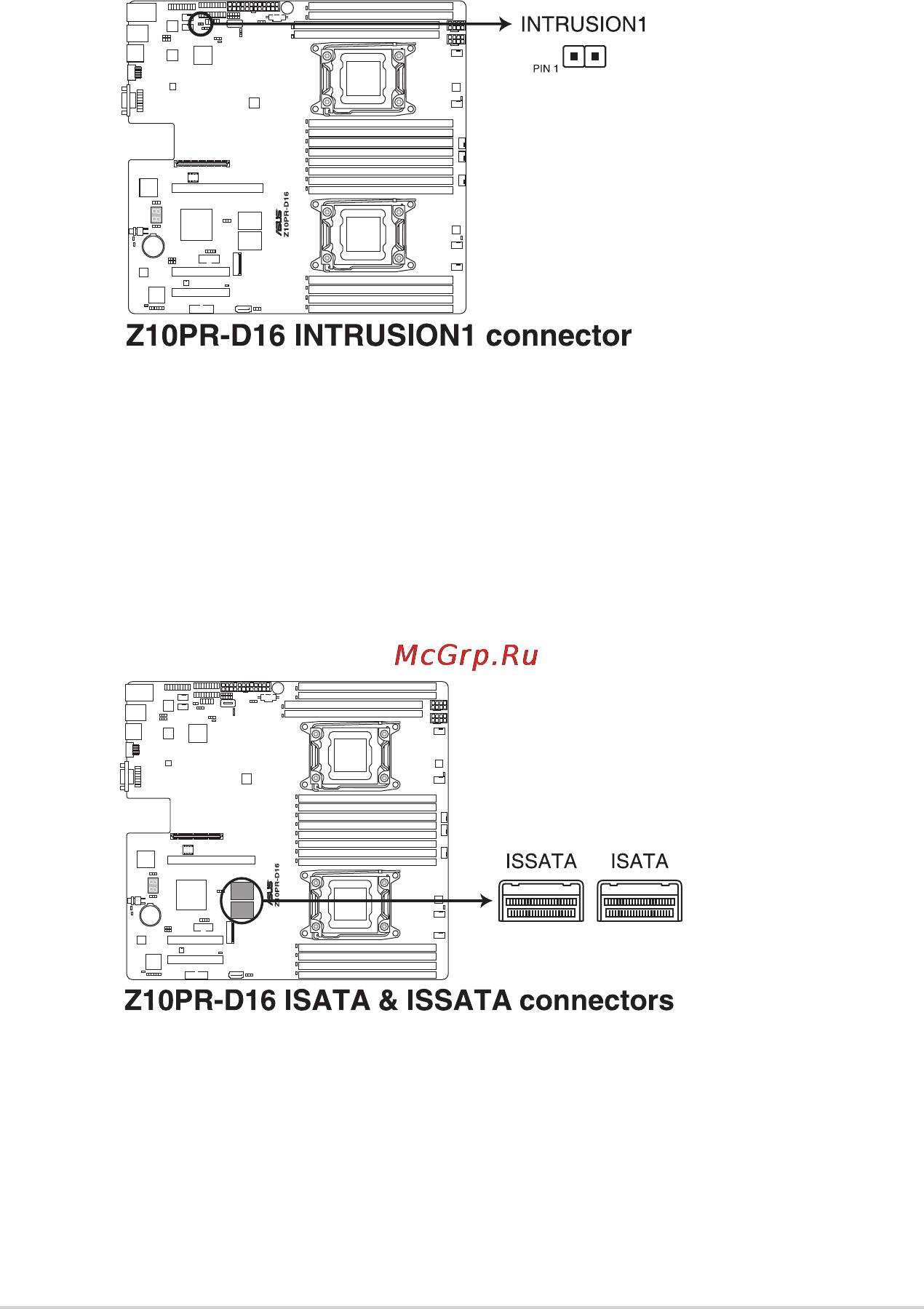

14. ChassisIntrusion(2-pinINTRUSION1)
Theseleadsarefortheintrusiondetectionfeatureforchassiswithintrusionsensoror
microswitch.Whenyouremoveanychassiscomponent,thesensortriggersandsends
ahighlevelsignaltotheseleadstorecordachassisintrusionevent.Thedefaultsetting
isshortCASEOPENandGNDpinbyjumpercaptodisablethefunction.
