ASUS RS400-E8-PS2, RS400-E8-PS2-F
4-19

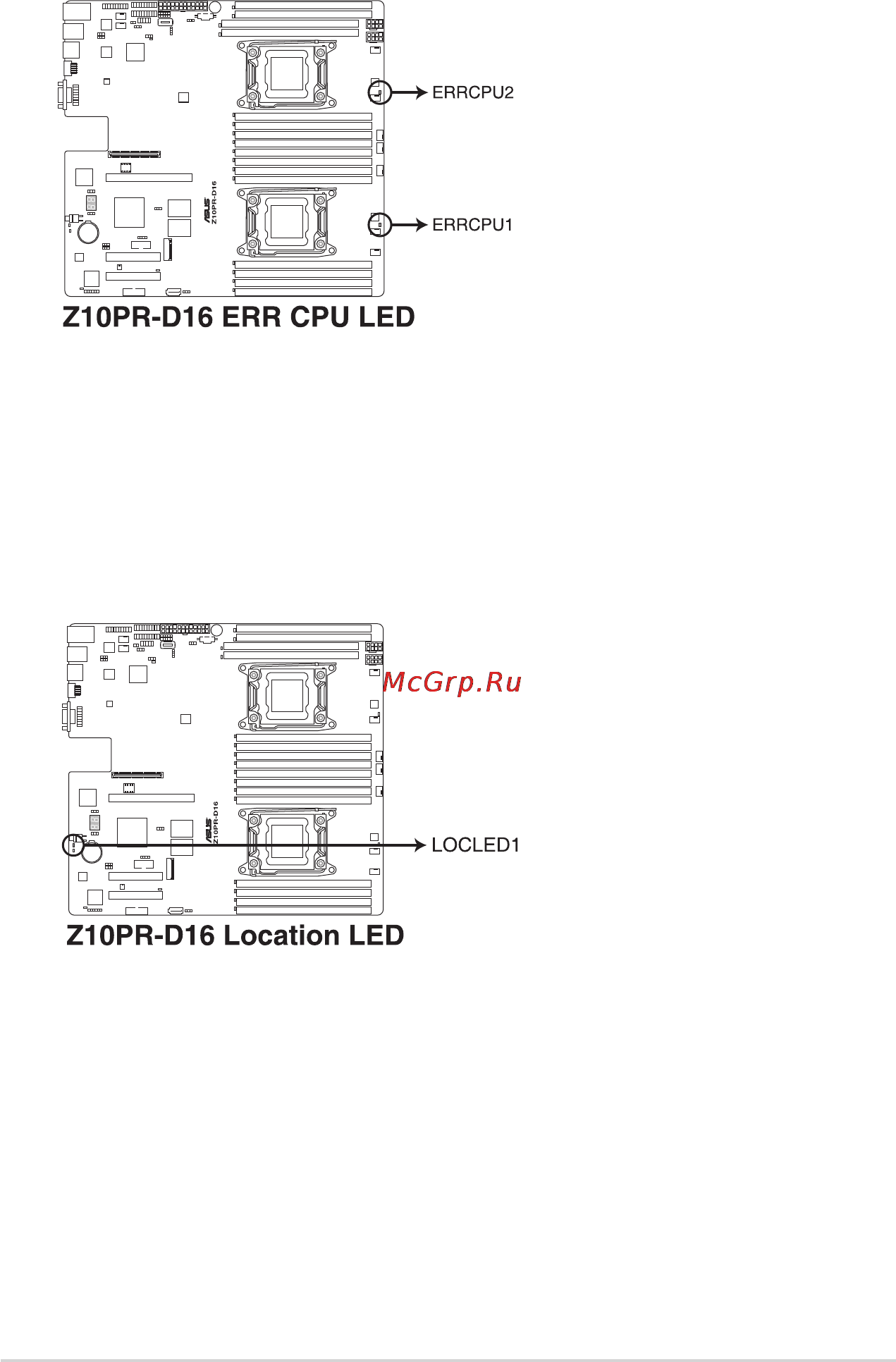

3. CPUWarningLED(ERRCPU1,ERRCPU2)
TheCPUwarningLEDslightuptoindicatefailureoneitherCPU1,CPU2,orboth.
4. Location LED (LOCLED1)
ThisonboardLEDlightsupwhentheLocationbuttonontheserverispressedorwhen
triggeredbyasystemmanagementsoftware.TheLocationLEDhelpsvisuallylocate
andquicklyidentifytheserverinerroronaserverrack.
