Chapter 4: Motherboard information
4-20

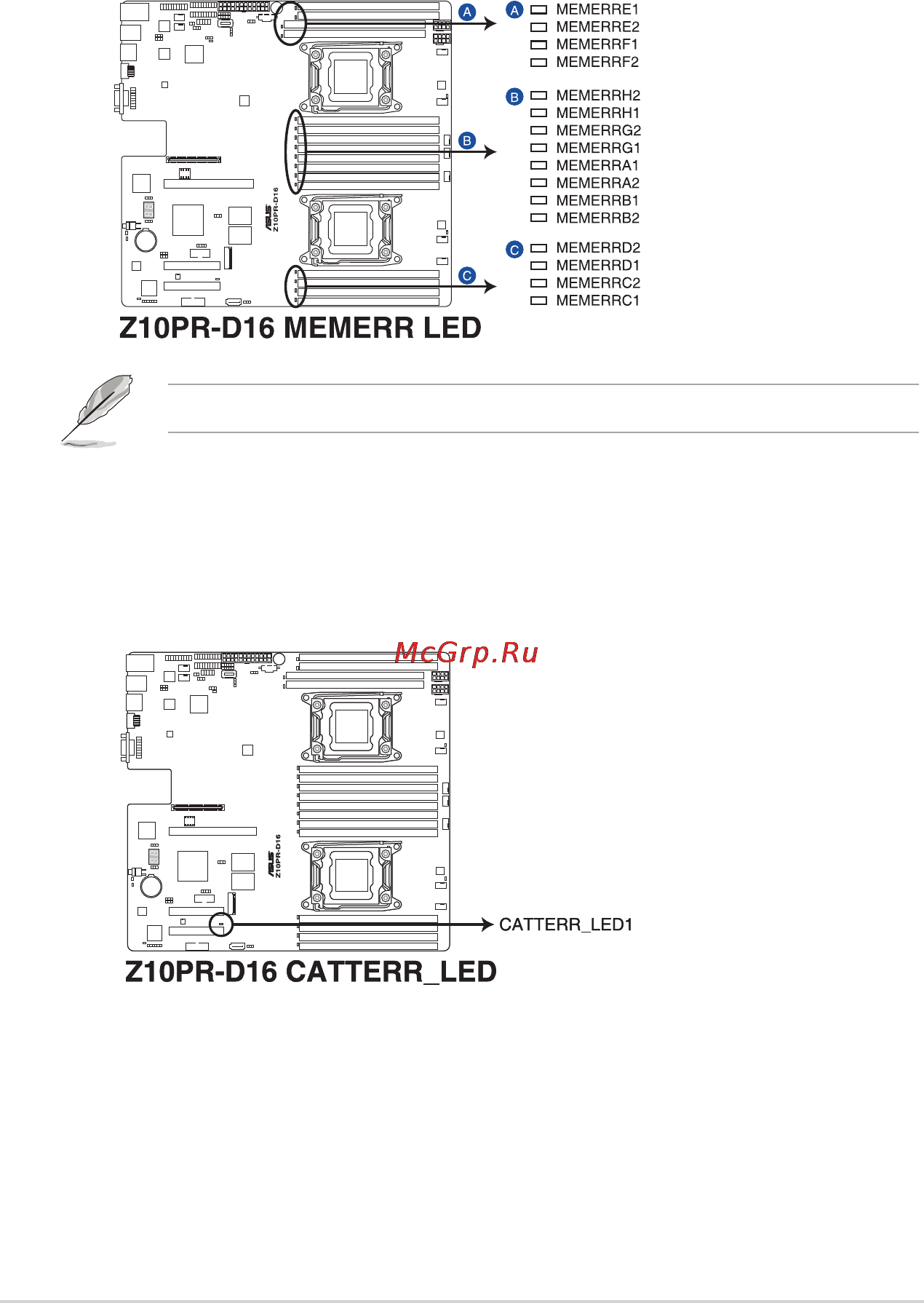

5. Memory error LED (MEMERRA1, MEMERRA2, MEMERRB1, MEMERRB2,
MEMERRC1, MEMERRC2, MEMERRD1, MEMERRD2, MEMERRE1, MEMERRE2,
EMERRF1,MEMERRF2, MEMERRG1, MEMERRG2, MEMERRH1, MEMERRH2)
TheDIMMwarningLEDslightuptoindicatefailureonthecorrespondingDIMMs.
ThewarningLEDsonlyfunctionswhenyouenabletheASUSASMB8.
6. CATT LED (CATTERR_LED1)
The CATT LED indicates that the system has experienced a fatal or catastrophic error
and cannot continue to operate.
6. CATT LED (CATTERR_LED1)
The CATT LED indicates that the system has experienced a fatal or catastrophic error
and cannot continue to operate.
