ASUS RS400-E8-PS2, RS400-E8-PS2-F
4-21

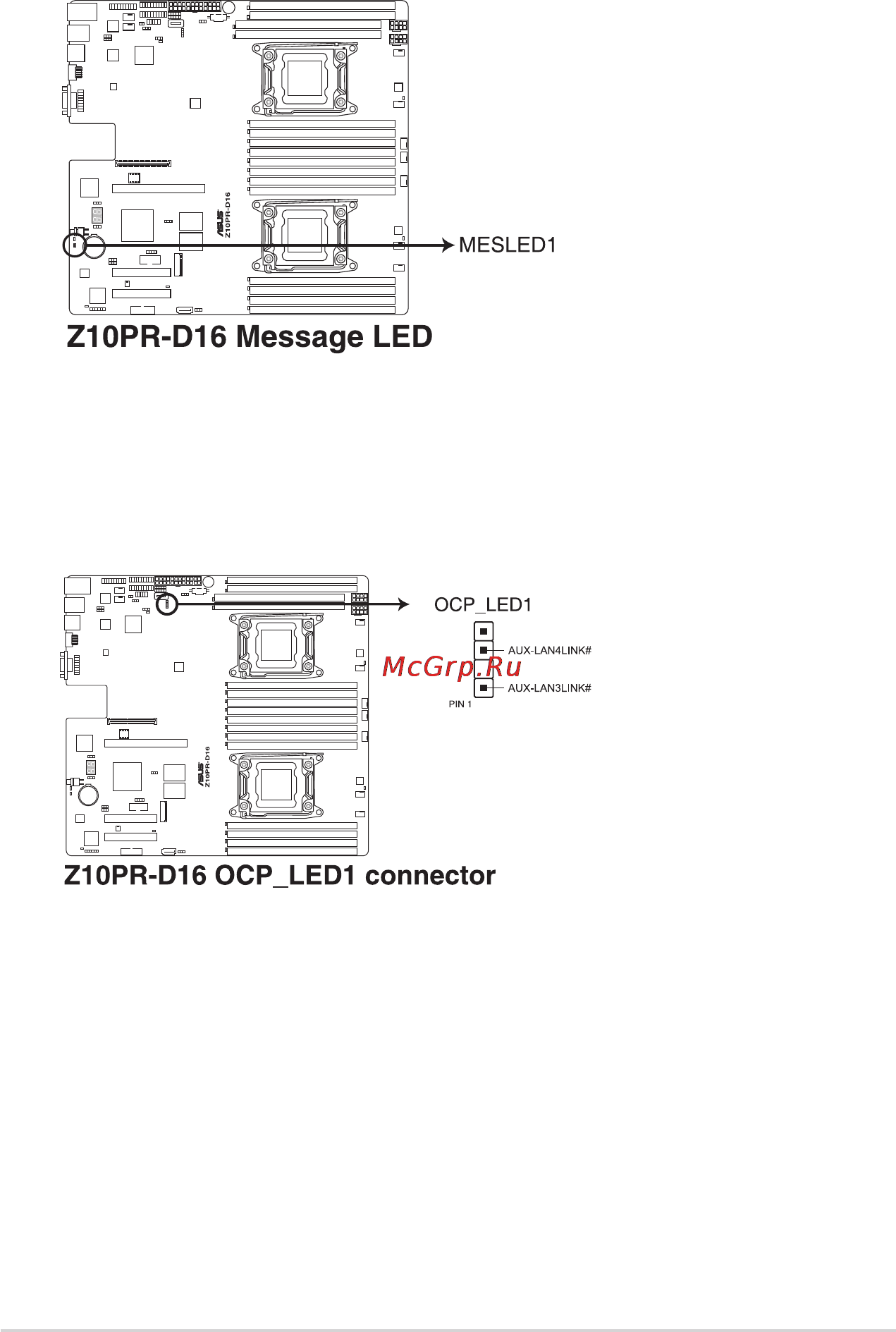

7. Message LED (MESLED1)
ThisonboardLEDlightsuptoredwhenthereistemperaturewarningoraBMCevent
log is generated.
8. OCPLANActivityLEDconnector(4-pinOCP_LED1)
OCPLANLEDconnectorsupportsASUSMCB-10G-2SOCPcardActiveLED.
