- 101 -
Unique Features
5-2-8 Ambient LED
GIGABYTE Ambient LED allows you to enable or change the display mode for the onboard audio LEDs and
rear panel I/O shield
(Note)
LEDs while in the Windows environment.

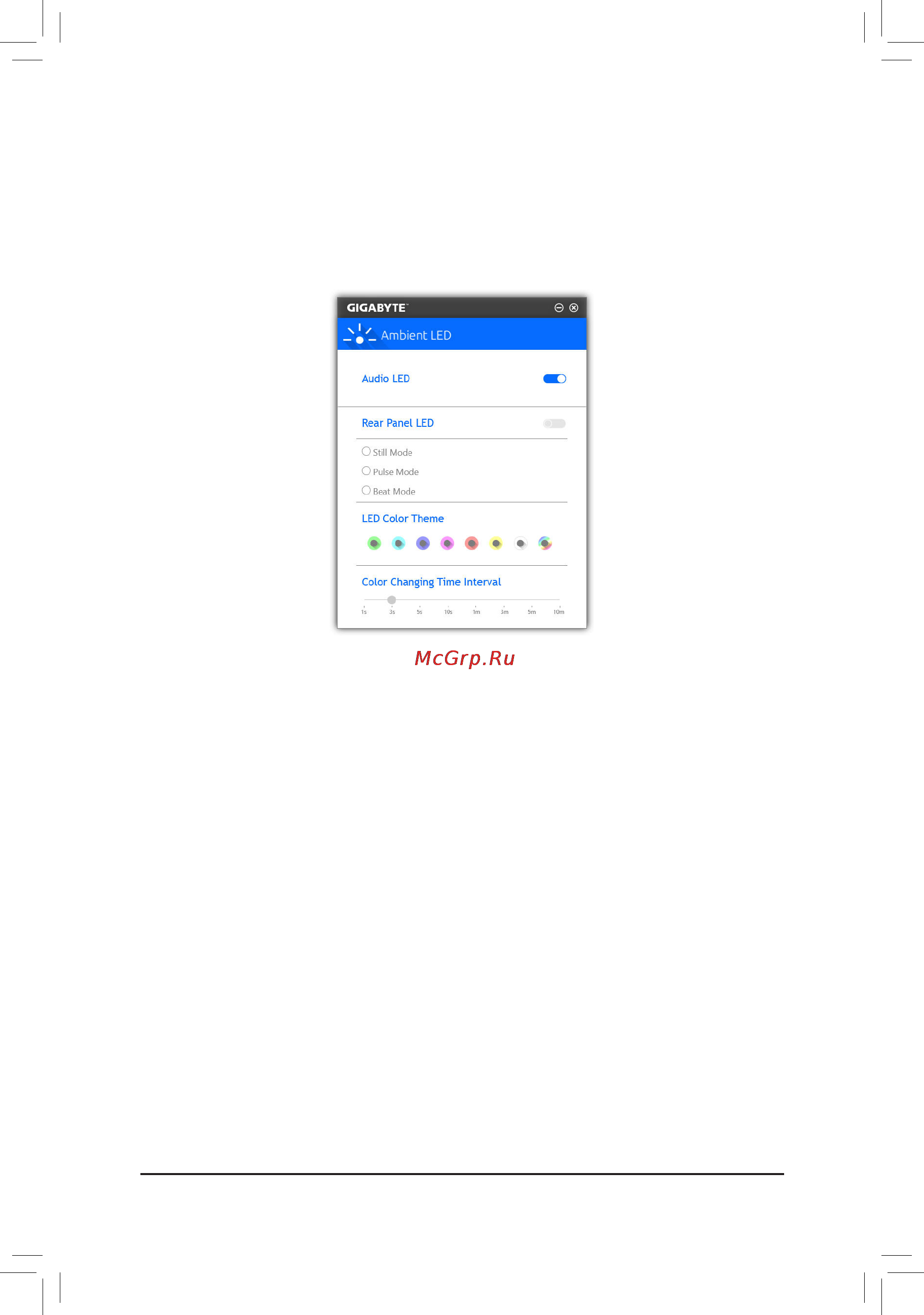

The Ambient LED Interface
Using Ambient LED
• Audio LED:
Allows you to enable or disable the onboard audio LEDs.
• Rear panel LED
(Note)
:
Allows to you enable or disable the real panel LEDs and specify the LED behavior.
Still Mode -- LEDs are constantly lit.
Beat Mode -- LEDs will blink according to the rhythm of the music played on your system.
Pulse Mode -- LEDs will blink slowly and smoothly like breath.
• LED Color Theme:
Allows to you specify the display color of the LEDs.
• LED Changing Time Interval:
Allows you to specify the color-changing interval if you select the color loop option.
(Note) This function only works for motherboards with an I/O shield that has audio LEDs.
