- 7 -

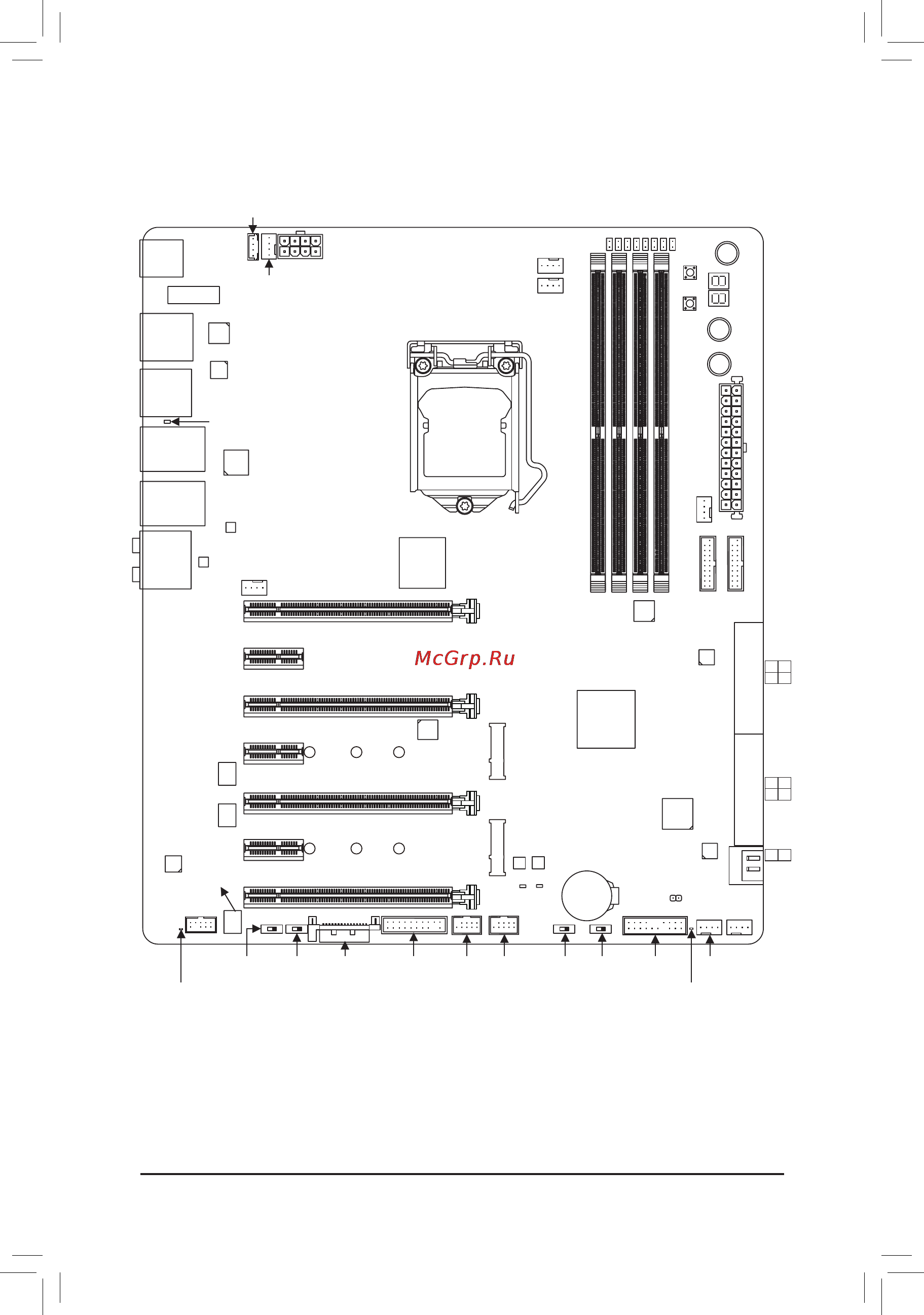

GA-Z170X-Gaming G1 Motherboard Layout
(Note) For debug code information, please refer to Chapter 6.
KB_MS_USB
HDMITYPEC
FBIOS_LED
M2_WIFI
R_USB30_2R_USB30_1
USB31_LAN2
USB30_LAN1
LGA1151
ATX
AUDIO
DDR4_4
DDR4_2
DDR4_3
DDR4_1
BAT
ATX_12V_2X4
Intel
®
Z170
CLR_CMOS
M_BIOS
B_BIOS
PCIEX1_1
Renesas
®
USB 3.0 Hub
MegaChips
MCDP2800
ASMedia
®
ASM1184e
ASMedia
®
ASM1061
ASMedia
®
ASM1061
Rivet Networks Killer
™
E2400 LAN
Rivet Networks Killer
™
E2400 LAN
Renesas
®
USB 3.0 Hub
PCIEX8_1
PCIEX8_2
PCIEX16_2
PCIEX16_1
PEX8747
42C
42B
60C
60B
80C
80B
PCIEX1_2
PCIEX1_3
F_USB30_2
F_USB30_1
SYS_FAN5
M2C_32GM2B_32G
M.2M.2
Creative
®
Sound Core 3D
GA-Z170X-Gaming G1
F_PANEL
System Temperature
Sensor 1
System Temperature
Sensor 2
F_USB1F_USB2TPMCAP_SW_R BIOS_SW SBCAP_SW_F ATX4P
SYS_FAN1
SYS_FAN2
CPU_FAN
CPU_OPT
LED_IO
SYS_FAN4
SYS_FAN3
iTE
®
Super I/O
CMOS_SW
ECO
OC
RST_SW
PW_SW
SATA3 SATA3GSATA3
7 6
3 2
5 4
1 0
9
8
SATA EXPRESS SATA EXPRESS
BBIOS_LED1
MBIOS_LED1
Debug
LED
(Note)
TI Burr Brown
®
OPA2134
Intel
®
Thunderbolt
™
3
Controller
F_AUDIO
JRC NJM2114
JRC NJM2114
