Gigabyte ga-z170x-gaming g1 [27/136] 11 installing the gc usb3 bay

- 27 -

Hardware Installation

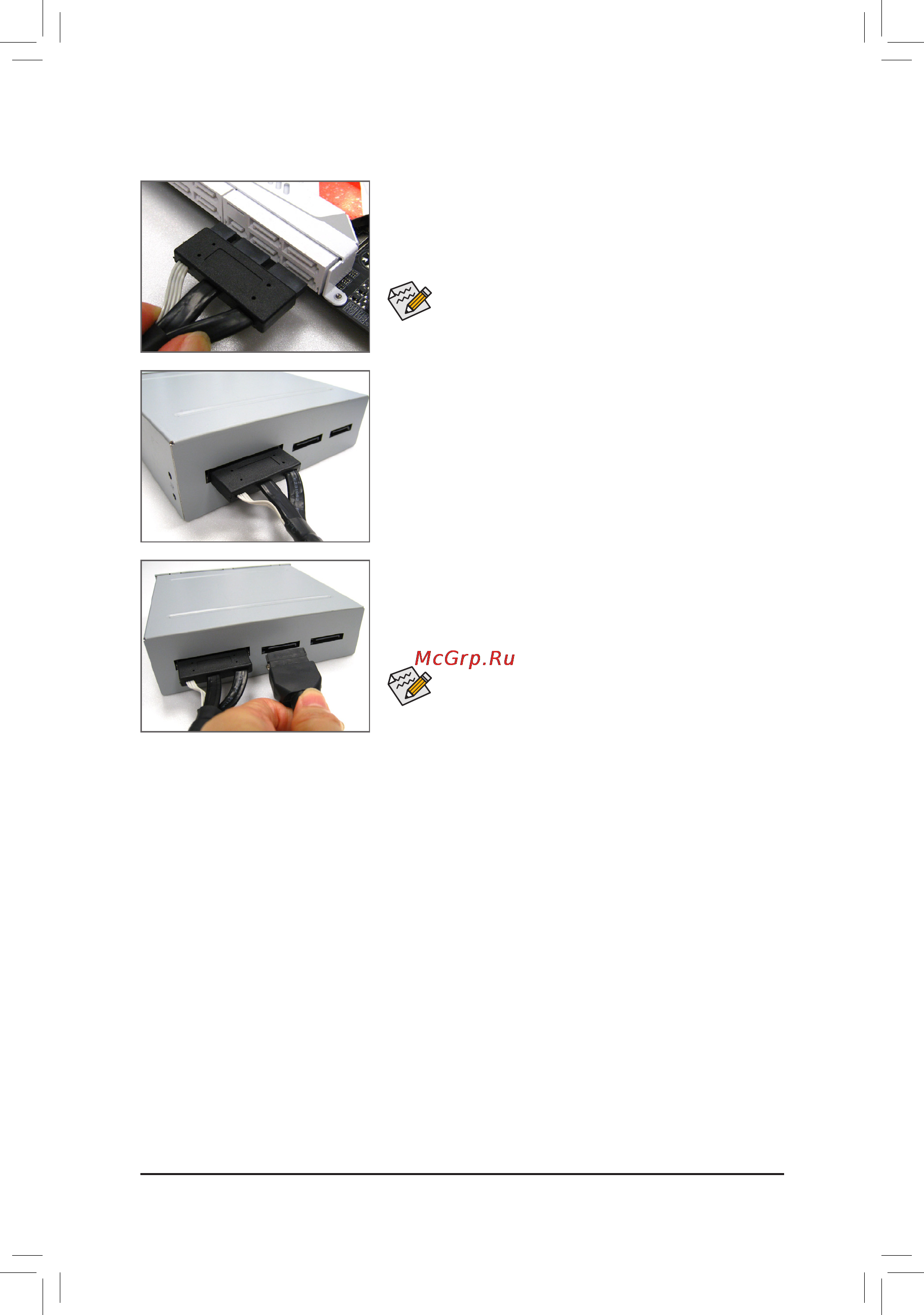

1-11 Installing the GC-USB3.1 BAY

Step 1:

Install the GC-USB3.1 BAY in the chassis and fasten it with screws.

Then connect one end of the cable to the SATA Express connector

on the motherboard.

Step 3:

Connect the SATA power cables from the power supply to the SATA

power connectors on the GC-USB3.1 BAY. You must connect the two

connectors with separate power cables.

Step 2:

Connect the other end of the cable to the SATA Express connector

on the GC-USB3.1 BAY.

Please connect the cable to the SATA Express connector

consisting of the SATA3 0, 1 or SATA3 2, 3 connectors.

The Power Delivery function can be enabled only when the

system is powered on.
