Unique Features
- 110 -
EZ Smart Response
A. System Requirements
1. An Intel
®
Chipset-based motherboard supporting this feature
2. Intel
®
Core series processor
3. Intel
®
SATA controllers set to RAID mode
4. Intel
®
Rapid Storage Technology utility installed
(Note 1)
5. A conventional SATA disk and an SSD
(Note 2)
6. Windows 7 with SP1/Windows 8.1/Windows 10
(Note 3)

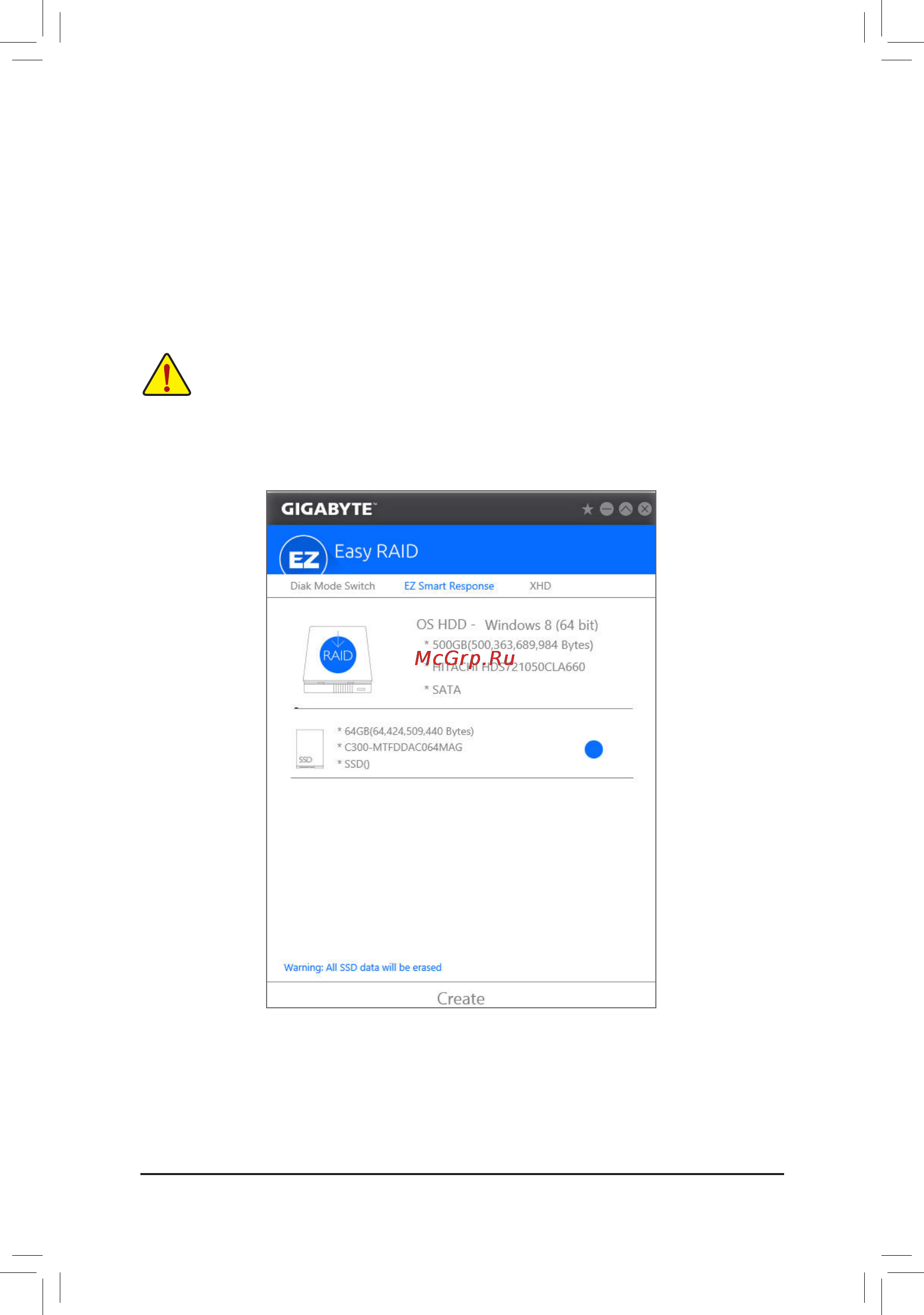

B. Using EZ Smart Response
Select EZ Smart Response and click Create.
To disable this function, click Delete.
IfyouhaveinstalledtheoperatingsystembeforeconguringtheSmartResponseTechnology,all
original data on the SSD will be lost once you enable RAID mode
(Note 4)
. It is recommended that you
back up the hard disk before enabling the Smart Response Technology.
(Note 1) Before start, make sure you have installed the Intel
®
Rapid Storage Technology utility (version 14.5
or above).
(Note 2) The SSD works as a cache of the hard disk. The maximum cache memory size is 64 GB. If you use
an SSD larger than 64 GB, the space beyond 64 GB can still be used for storing your data.
(Note 3) The operating system must be installed to the SATA disk.
(Note 4) If the SATA controllers are set to AHCI mode in BIOS Setup, they will be forced to RAID mode.
