- 28 -

Hardware Installation

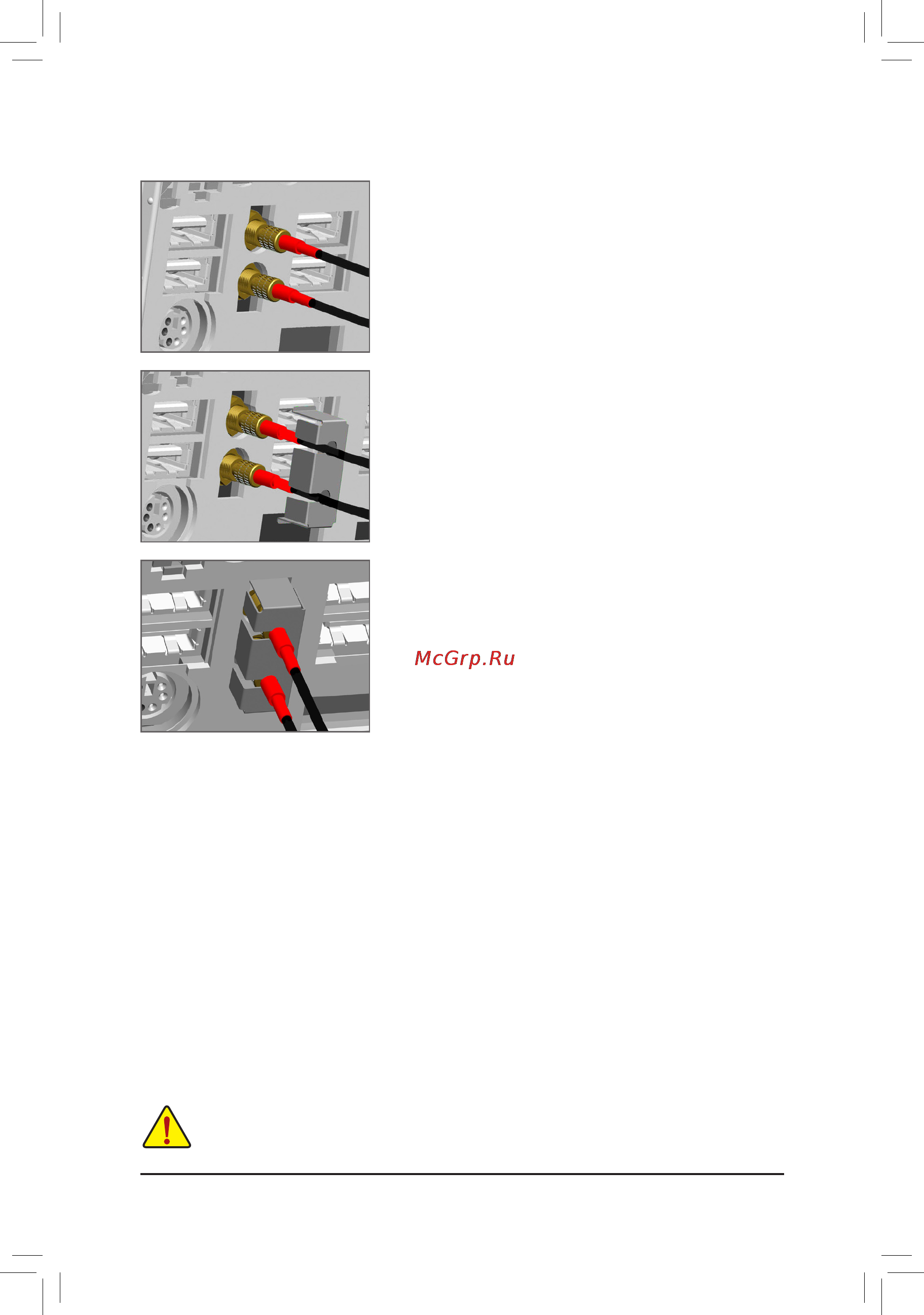

1-12 Installing the MMCX Antenna Connectors (2T2R)

Step 1:

Tighten the antenna cables to the MMCX antenna connectors on the

back panel.

Step 3:

Placeonengerintothegrooveatthebaseoftheantennaconnector.

Pushtheotherngersoastolocktheretentioncoverrmlyinplace.

The retention cover now protects the antenna from being inadvertently

removed. Move the antenna to a place where the signal is good.

Step 2:

Place the retention cover next to the cables. Insert the cables into the

side openings of the retention cover.

Be sure that the antenna is mounted at least 20 cm away from the user or bystander.
