BIOS Setup

- 46 -

` M.I.T. Current Status

This screen provides information on CPU/memory frequencies/parameters.

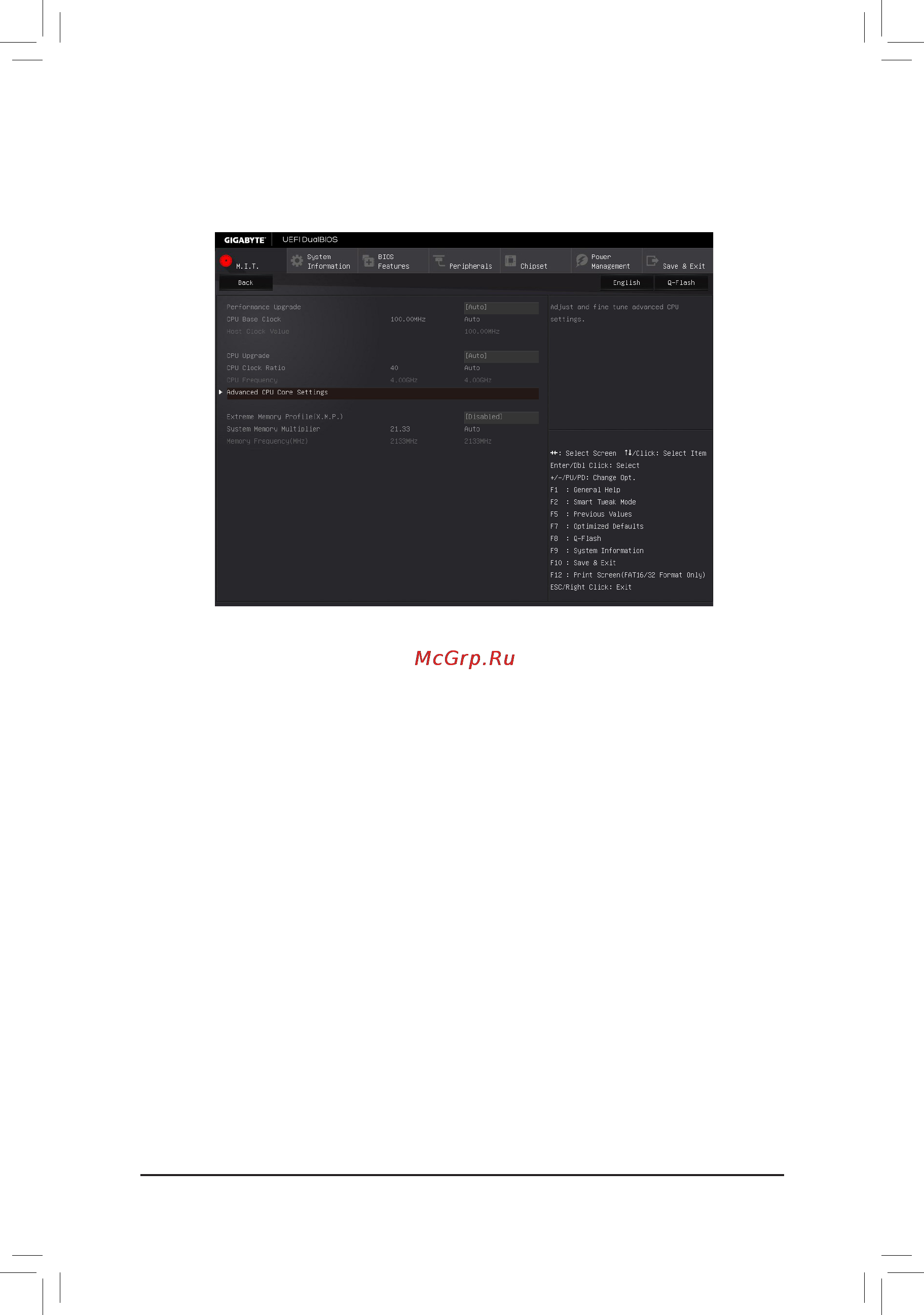

` Advanced Frequency Settings

& Performance Upgrade

(Note)

 Providesyouwithvedifferentoverclockingcongurations.Optionsare:20%Upgrade,40%Upgrade,

60%Upgrade,80%Upgrade,100%Upgrade.(Default:Auto)

& CPU Base Clock

Allows you to manually set the CPU base clock in 0.01 MHz increments. (Default: Auto)

Important: It is highly recommended that the CPU frequency be set in accordance with the CPU

specications.

& Host Clock Value

This value changes with the CPU Base Clock setting.

& CPU Upgrade

(Note)

Allows you to set the CPU frequency. Options may vary depending on the CPU being used. (Default: Auto)

& CPU Clock Ratio

Allows you to alter the clock ratio for the installed CPU. The adjustable range is dependent on the CPU

being installed.

& CPU Frequency

Displays the current operating CPU frequency.

(Note) This item is present only when you install a CPU that supports this feature. For more information about

Intel

CPUs' unique features, please visit Intel's website.
