Appendix

- 114 -

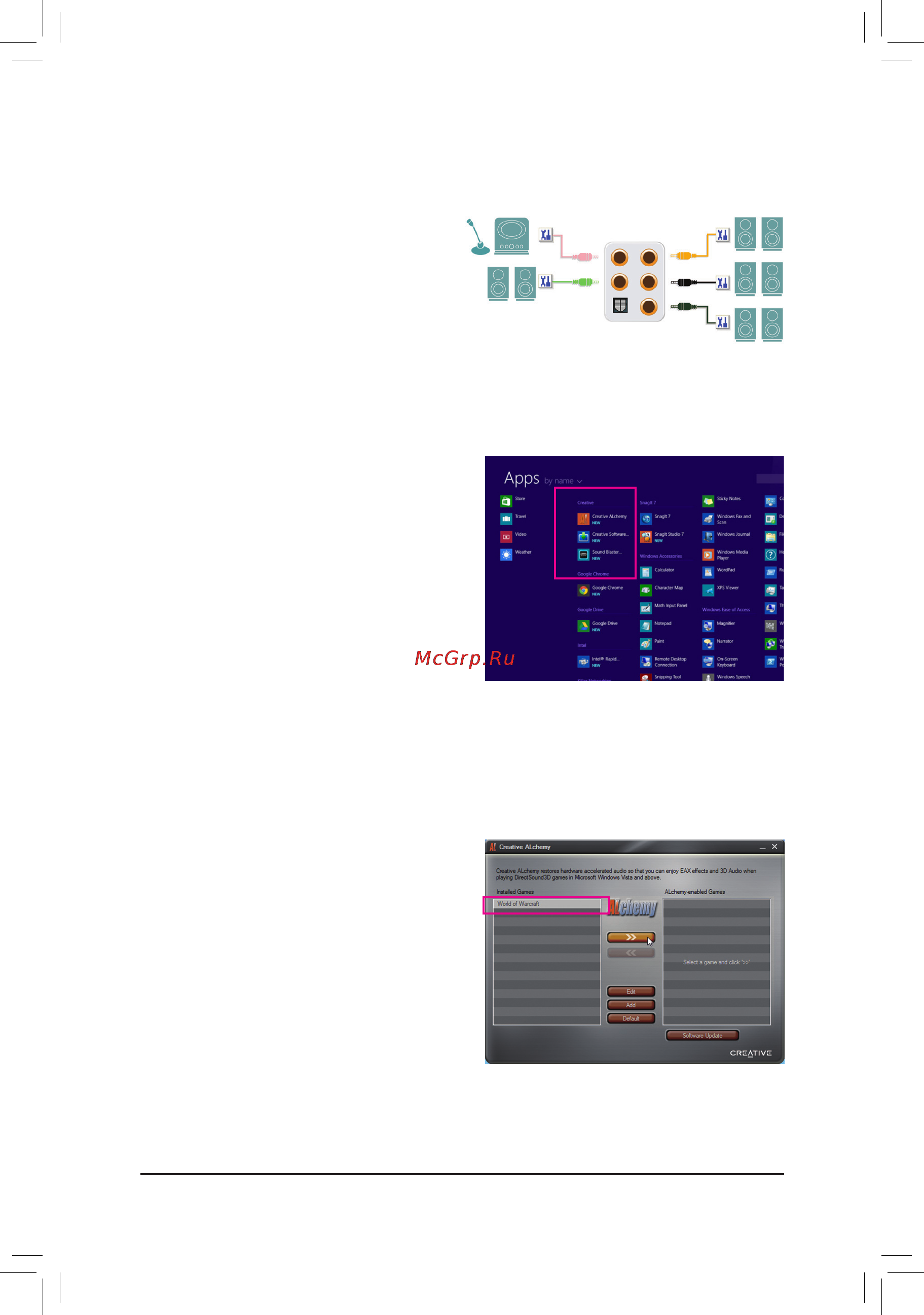

6-2-1 Conguring2/5.1-ChannelAudio

The motherboard supports 2/5.1-channel audio. Refer

tothefollowingforspeakercongurations.

• 2-channel audio: Headphone or Line out.

• 5.1-channel audio: Front speaker out, Rear speaker

out, and Center/Subwoofer speaker out.

6-2 ConguringAudioInputandOutput

Center/Subwoofer

Speaker Out

Line In/Mic In

Rear Speaker Out

Front Speaker

Out

Headphone/

Speaker Out

Afterinstallingtheaudiodriver,youcanndtheCreative

Software Suite in Apps>Creative.

The Creative Software Suite includes Creative Alchemy

and Sound Blaster Recon3Di.

6-2-2 Creative Software Suite

Creative Alchemy

Through the Creative Alchemy, you can enable EAX effects for your games to obtain the most realistic gaming

experience.

Steps:

Go to Apps>Creative to launch Creative Alchemy. On the

left panel, select the game for which you want to enable

the EAX effects and add it to the right panel. You will see

the EAX effects are enabled when the game is launched.
