Gigabyte ga-z170x-gaming g1 [57/136] 3dmark01 enhancement

BIOS Setup

- 57 -

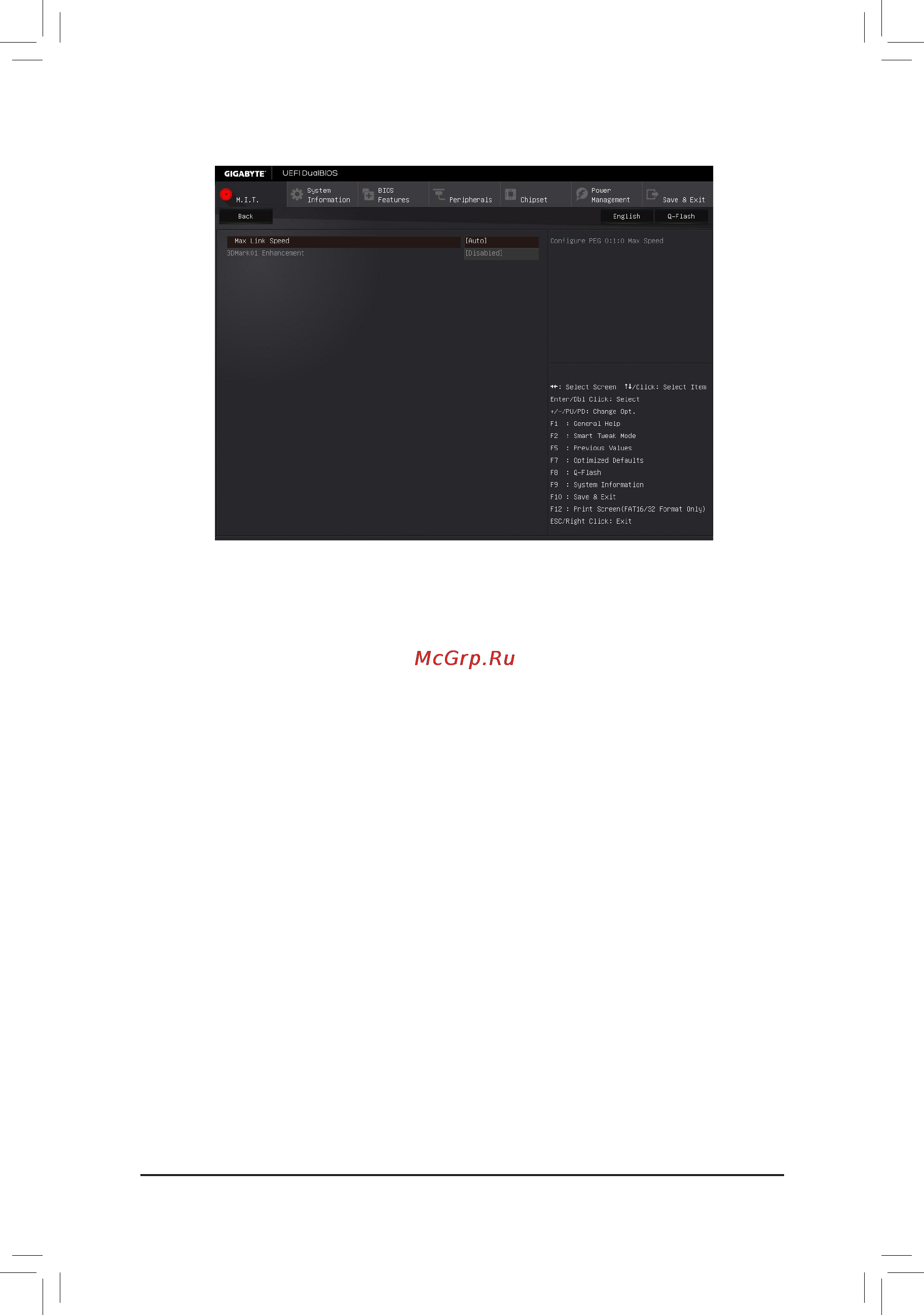

` Miscellaneous Settings

& Max Link Speed

Allows you to set the operation mode of the PCI Express slots to Gen 1, Gen 2, or Gen 3. Actual operation

modeissubjecttothehardwarespecicationofeachslot.AutoletstheBIOSautomaticallycongurethis

setting. (Default: Auto)

& 3DMark01 Enhancement

Allows you to determine whether to enhance some legacy benchmark performance. (Default: Disabled)
