Gigabyte ga-z170x-gaming g1 [54/136] Case open

BIOS Setup

- 54 -

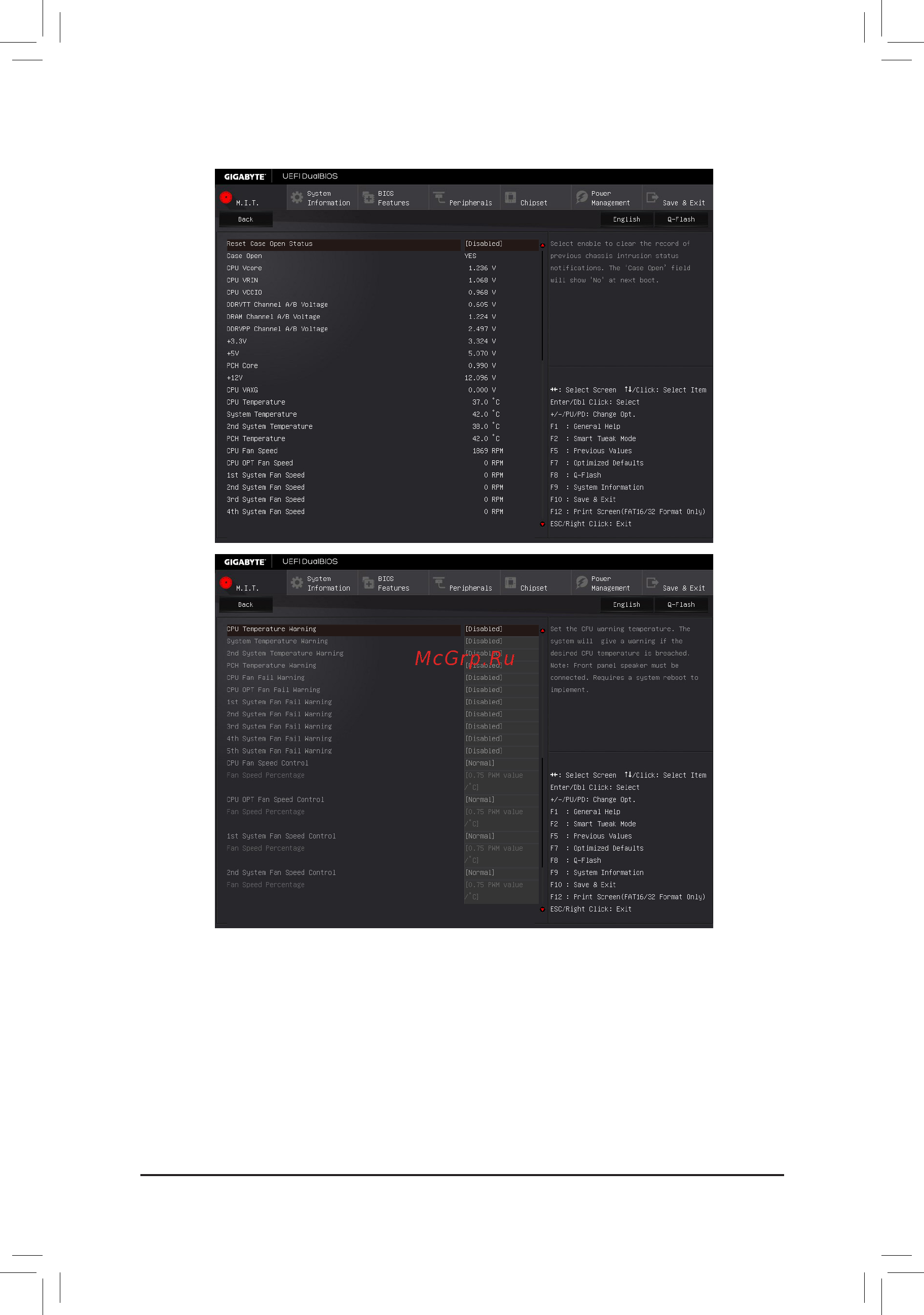

` PC Health Status

& Reset Case Open Status

Disabled Keeps or clears the record of previous chassis intrusion status. (Default)

Enabled Clears the record of previous chassis intrusion status and the Case Openeldwillshow

"No" at next boot.

& Case Open

Displays the detection status of the chassis intrusion detection device attached to the motherboard CI

header.Ifthesystemchassiscoverisremoved,thiseldwillshow"Yes",otherwiseitwillshow"No".To

clear the chassis intrusion status record, set Reset Case Open Status to Enabled, save the settings to

the CMOS, and then restart your system.
