- 73 -

Conguring a RAID Set

Step 5:

After setting the capacity, move to Create Volume and press <Enter> to begin. (Figure 6)

After completing, you'll be brought back to the Intel(R) Rapid Storage Technology screen. Under RAID Volumes

you can see the new RAID volume. To see more detailed information, press <Enter> on the volume to check for

information on RAID level, stripe block size, array name, and array capacity, etc. (Figure 7)

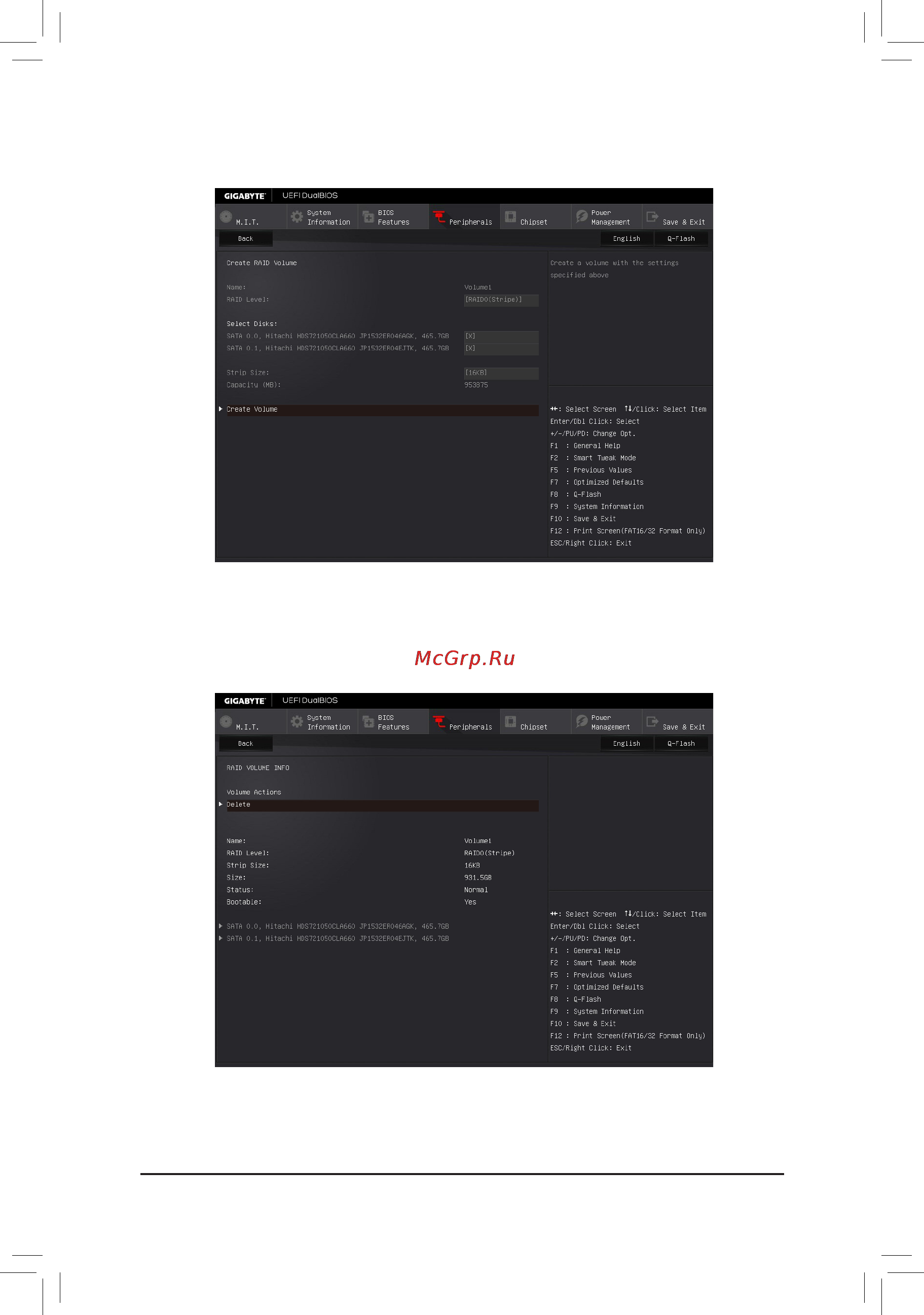

Figure 6

Figure 7
