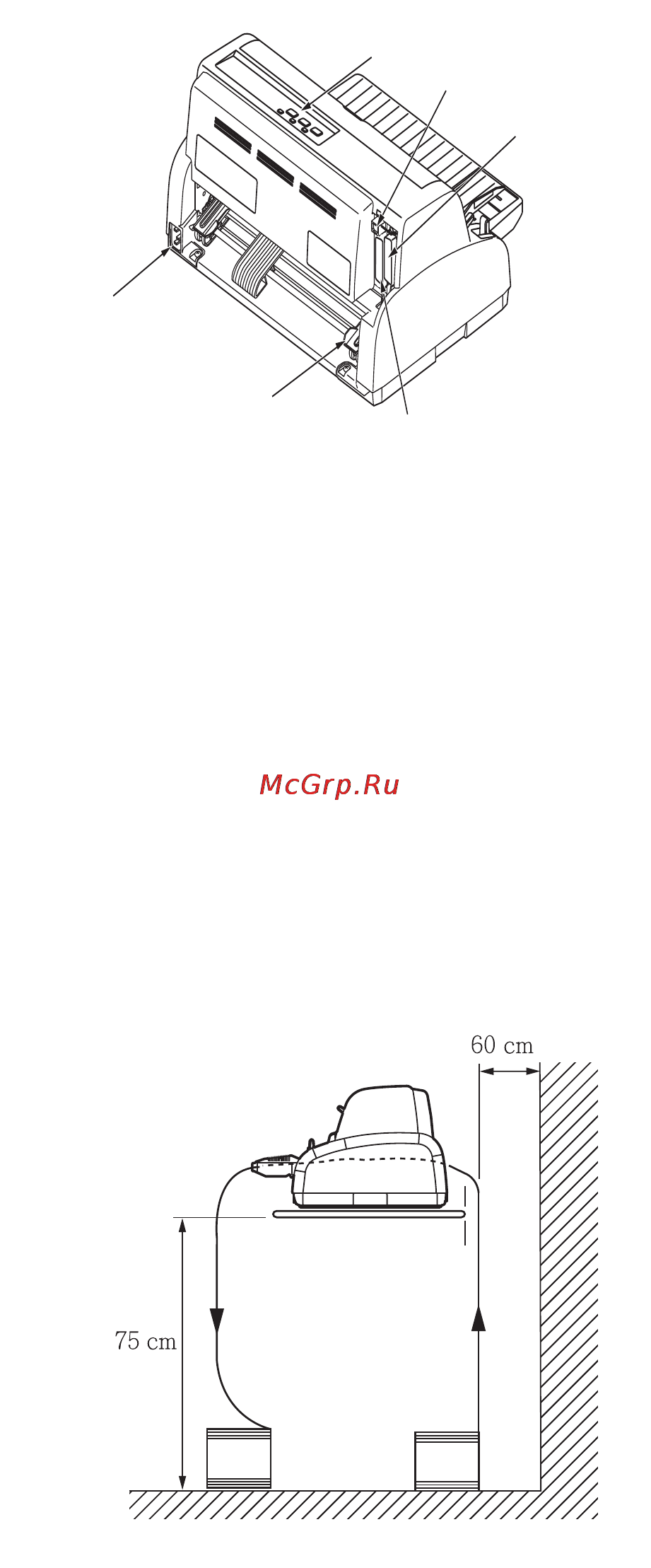

Getting started > 10
R
EAR
VIEW
1. USB connector: connect to USB interface cable.
2. Parallel connector: connect to parallel interface connector.
3. Serial connector: connect to serial interface cable.
4. Pin Tractor: to load and feed continuous forms.
5. Power connector: connect to printer power cable.
6. Operator Panel: contains button switches and indicators (described in detail later)
that allow you to operate the printer.
L
OCATING
YOUR
PRINTER
> Select a firm, solid surface on which to site your printer.
> Allow enough space around your printer (e.g. at least 60 cm from any wall) for easy
access to the paper feed paths.
> Make sure a grounded power outlet is available nearby.
1
2
3
4
5
6
>=
