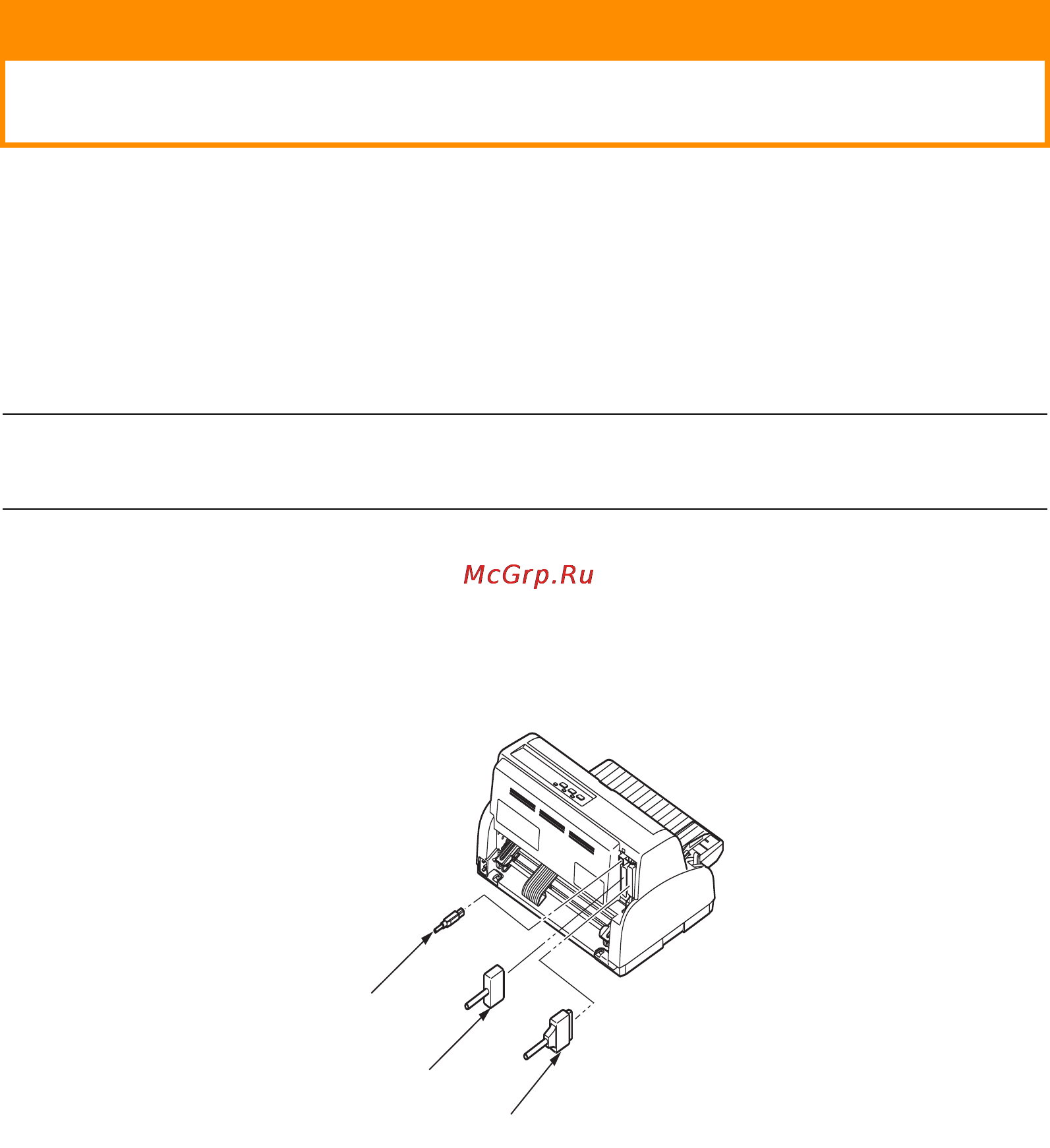

Connecting to a computer > 13
C
ONNECTING
TO
A
COMPUTER
In this section you will interconnect your printer and computer, install the printer driver in
your computer and print a test page.
I
NTERCONNECTING
PRINTER
AND
COMPUTER
I
NTERFACES
Your printer is equipped with three data interfaces:
> Parallel: for direct connection to a PC. This port requires a bi-directional (IEEE 1284
compliant) parallel cable.
> USB: for connection to a PC running Windows 2000 or above. This port requires a
shielded cable 3m long conforming to USB version 2.0.
> Serial: for direct connection to a PC. This port requires a bi-directional RS232C serial
interface cable.
I
NTERCONNECTION
1. Ensure that both printer and computer are turned OFF.
2. Connect the required interface cable, USB (1) or parallel (2), or serial (3) to the
printer and then to the computer (3).
3. Turn ON the printer and then turn ON the computer.
CAUTION!
Do not use more than one of the following data interface methods
to connect to your PC.
NOTE
Interface cables are not supplied with your printer.
1
