Paper handling > 17
5. Adjust the Paper Thickness Lever (4) to suit the paper. See “Setting the Paper
Thickness lever” on page 22.

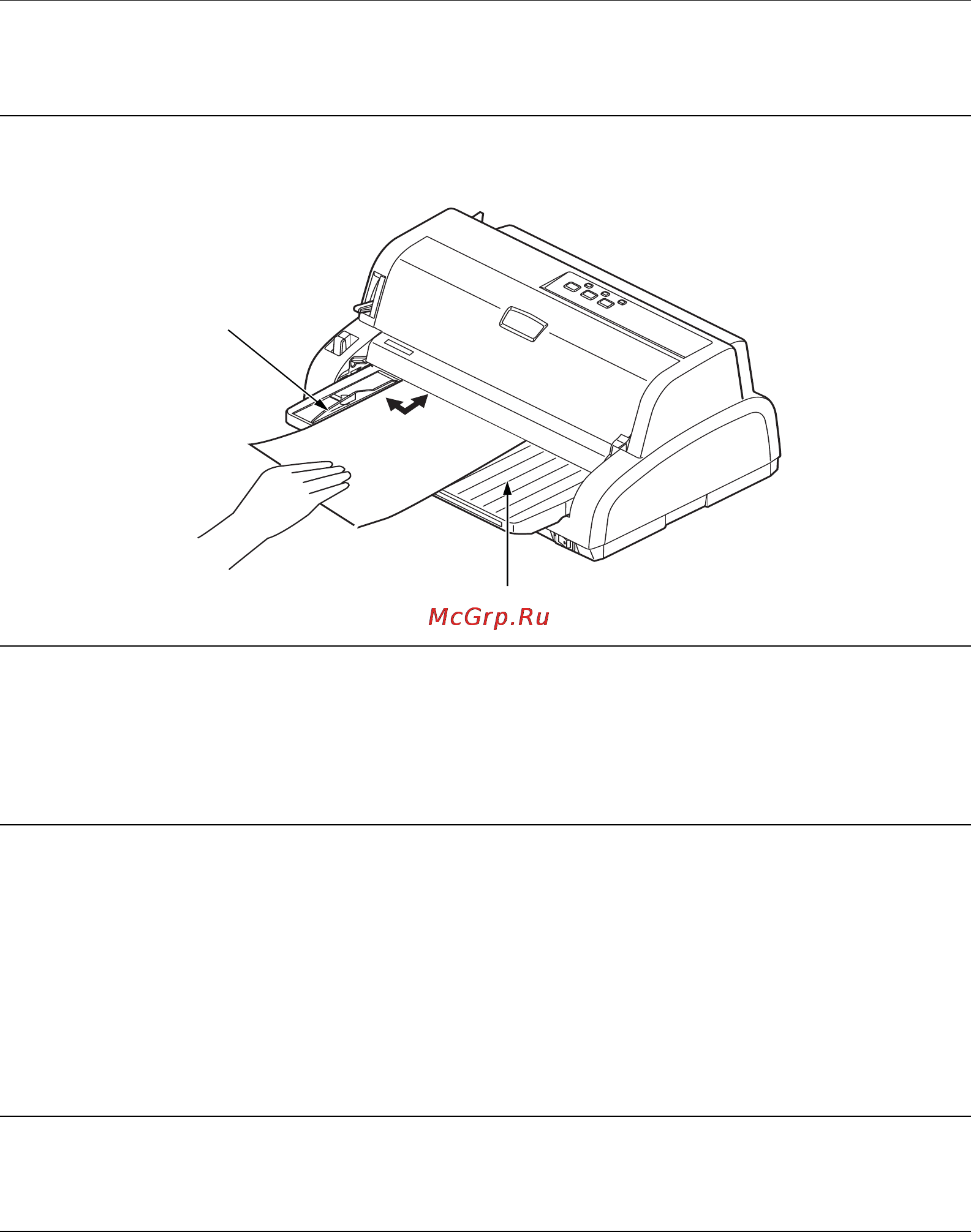

6. With the printing side upwards and the left edge aligned with the Paper Guide (1),
carefully insert the paper on the Paper Tray (2) into the printer until it is gripped.
E
JECTING
CUT
SHEET
PAPER
When the printer reaches the end of the cut sheet page it automatically ejects the page. If
required, add another sheet for the printer to continue printing from where it left off.
To eject a cut sheet left in the printer, carry out the following:
1. Press the SEL button to put the printer off-line.
2. Press the LOAD/PARK button and the paper is ejected to the Paper Tray.
NOTE
If the Paper Thickness Lever setting does not match the paper being used,
paper feeding and printing may not work properly.
NOTE
> Ensure that the paper is accurately aligned along the Paper Guide to avoid
the possibility of skew printing.
> When printing an envelope, do not fold up the flap. A flap aligned along
the Paper Guide can lead to skew printing.
NOTE
Paper longer than A4 length (297 mm) may overlap and possibly fall off the
Paper Tray.
1
2
