OKI ml5100fb [22/53] Setting the paper thickness lever

Paper handling > 22

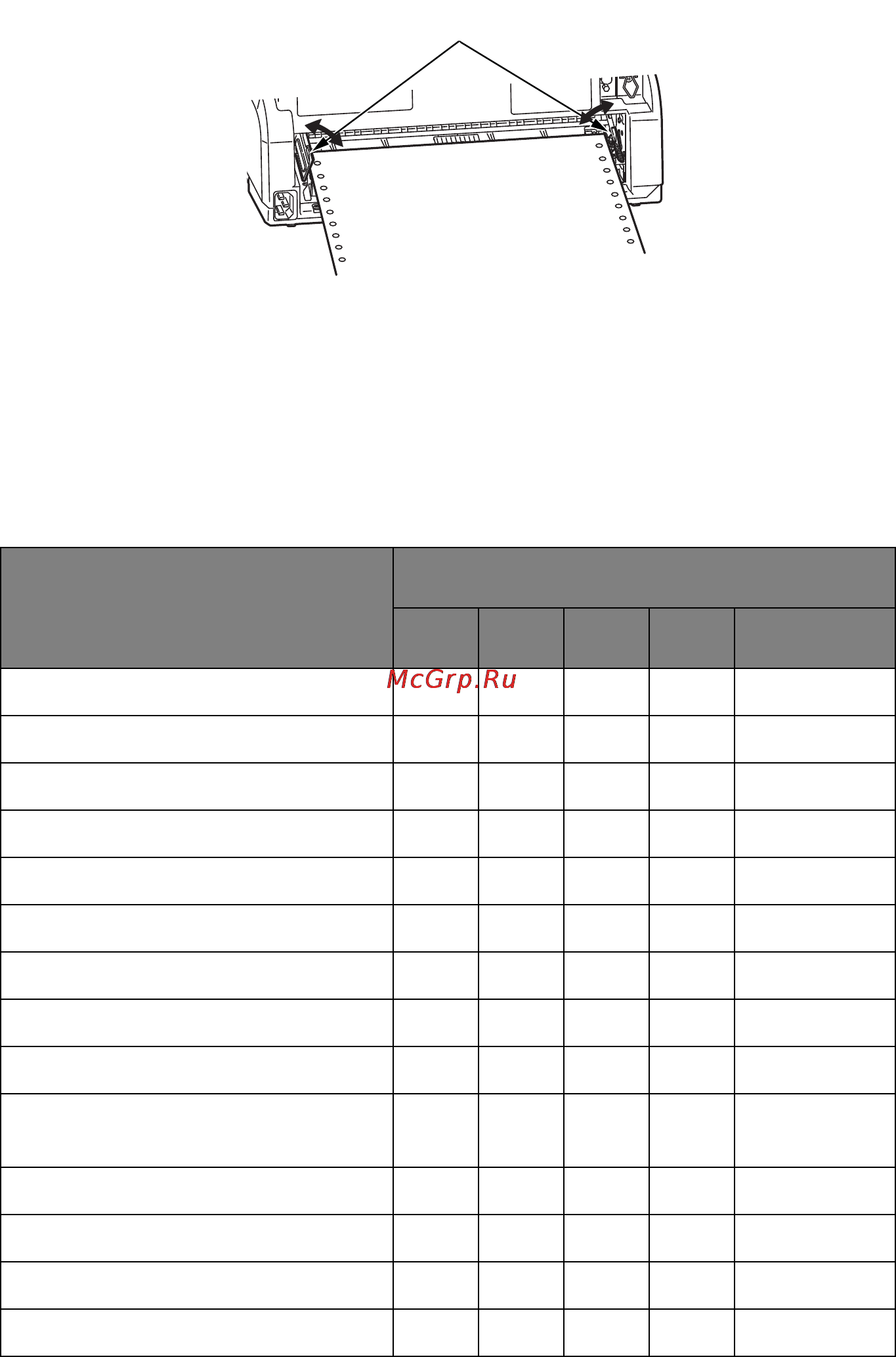

4. Lift the Pin Tractor covers (1) and remove the forms.

5. Close the Pin Tractor covers

ETTING

THE

APER

HICKNESS

LEVER

There are 9 lever positions, the first 9 for printing purposes and the ninth to also facilitate

ribbon replacement.

Set the Paper Thickness lever for different paper types as follows:

PAPER TYPE LEVER POSITION

1 2 3 4 5 - 9

Cut sheet paper See below

52 – 81 gsm X

81 – 128 gsm X

128 – 156 gsm X

Postcard X

Envelope X

Continuous paper See Below

52 - 81 gsm X

81 - 128 gsm X

Carbon paper or Pressure-

sensitive paper (40 gsm)

See below

2 part X

3 part X

4 part X

5 part X X
