Operating instructions > 24
O
PERATING
INSTRUCTIONS

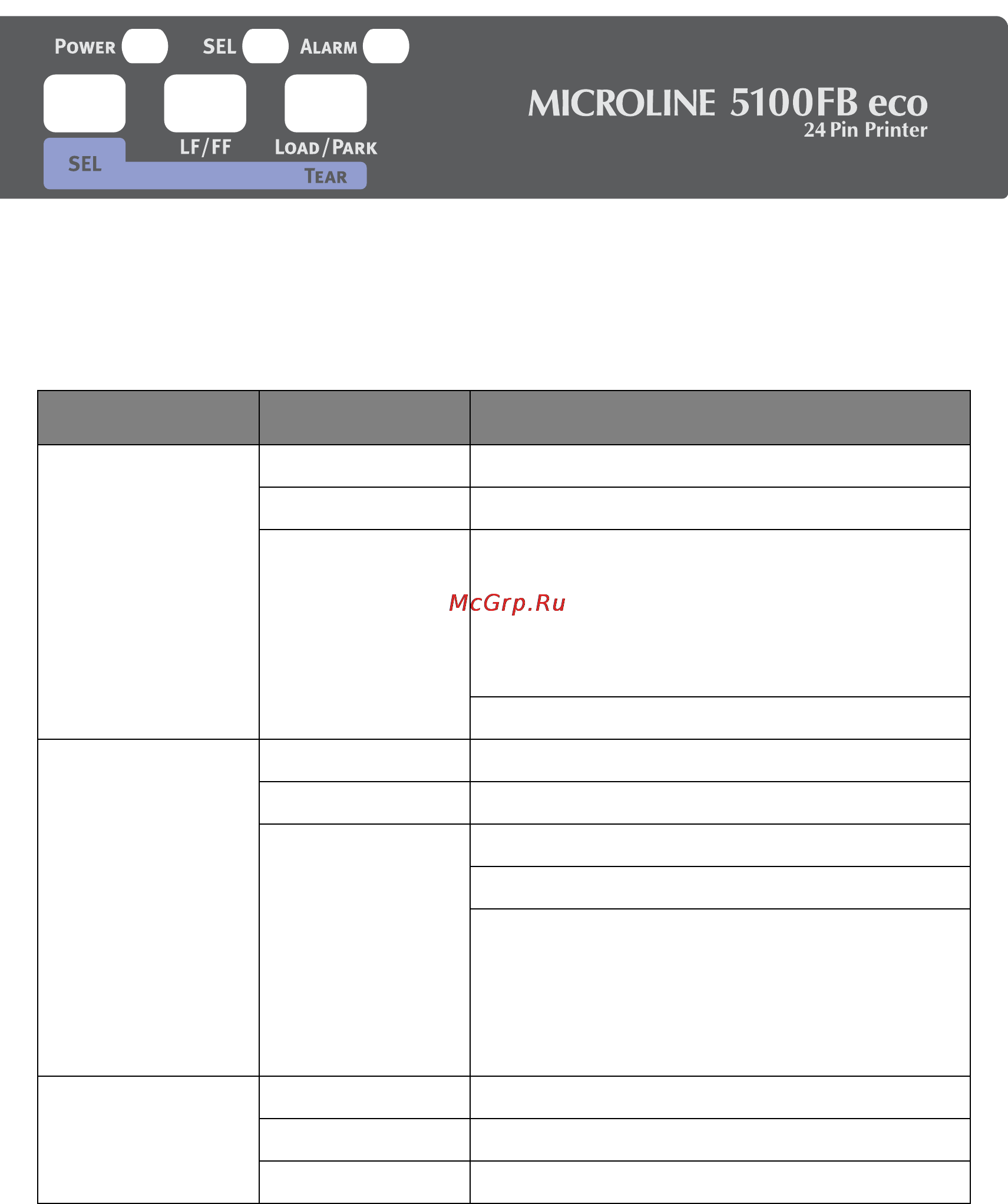

O
PERATOR
PANEL
The status/alarm indicators and button switches on the operator panel allow you to check
printer status and control the printer.
I
NDICATORS
INDICATOR STATUS MEANING
SEL ON Printer is on-line i.e. is available to print.
OFF Printer is off-line i.e. is not available to print.
Flashing When flashing together with the ALARM indicator,
printing cannot be resumed at this stage. Turn
the power OFF, verify that the carriage moves
properly, then turn the power ON again.
If the problem is still there after you turn the
power ON again, contact your dealer.
High temperature alarm status.
ALARM ON Paper end status i.e. no paper present.
OFF Paper present status.
Flashing Paper jam alarm status.
Media switch alarm status.
When flashing together with the SEL indicator,
printing cannot be resumed at this stage. Turn
the power OFF, verify that the carriage moves
properly, then turn the power ON again.
If the problem is still there after you turn the
power ON again, contact your dealer.
POWER ON Printer power is ON.
OFF Printer power is OFF.
Flashing Low power consumption mode.
