Consumables and accessories > 45
C
ONSUMABLES
AND
ACCESSORIES
C
ONSUMABLES
When the printed image becomes faint or incomplete, replace the ribbon cartridge.
C
HANGING
A
RIBBON
CARTRIDGE
1. Set the Power Switch to OFF.

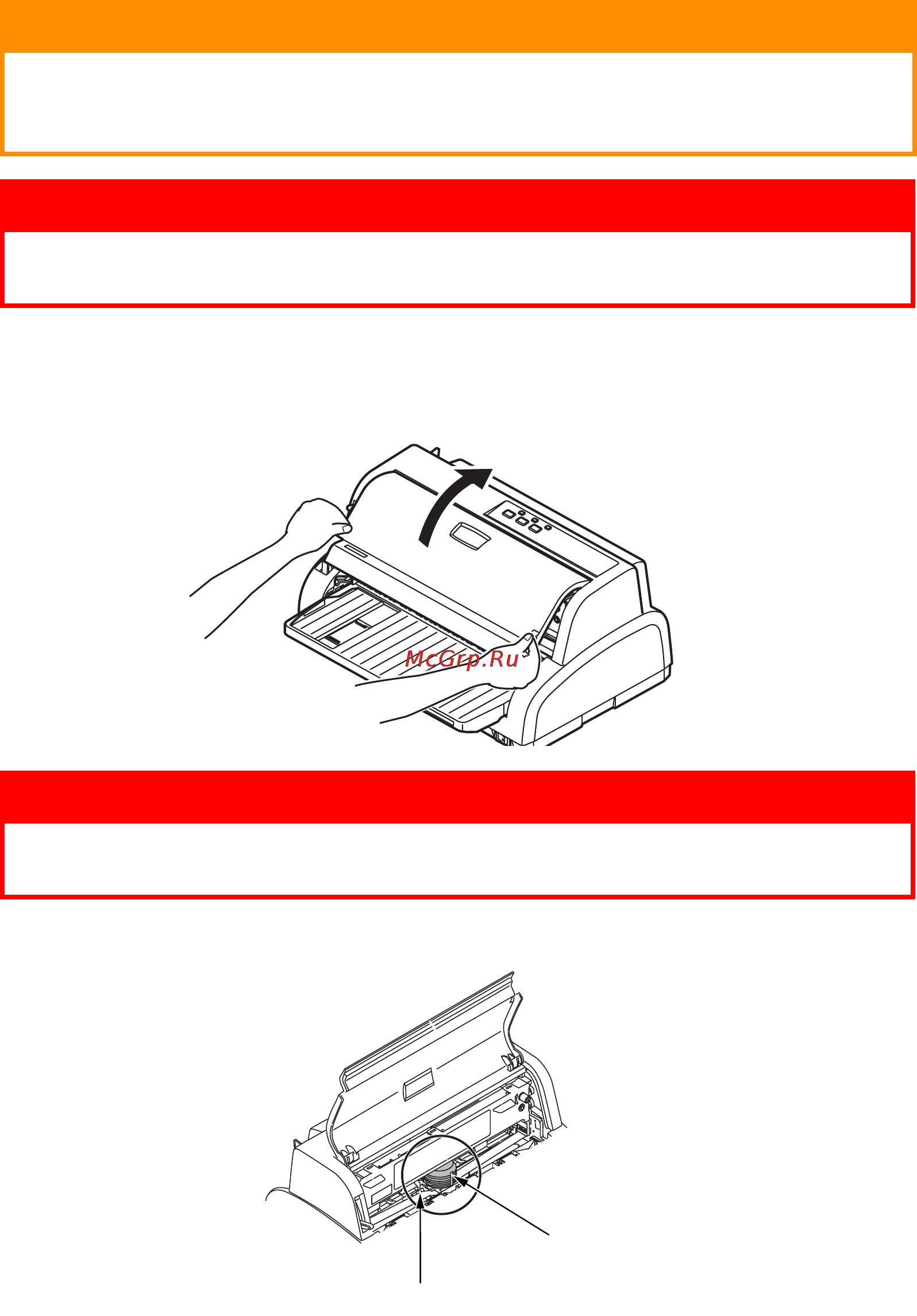

2. Set the Paper Thickness lever to Replace Ribbon (position 9) and open the Top
Cover.
3. Move the carriage (1) to the center (2) for ribbon replacement position.
CAUTION!
Only use genuine Original consumables to ensure the best quality
and performance from your hardware. Non Original products may
damage your printer’s performance and invalidate your warranty.
WARNING!
Do not change the ribbon cartridge with the Power Switch set to
ON.
WARNING!
The print head and area around it may be hot after printing. Allow
it to cool down before touching it.
