Consumables and accessories > 46

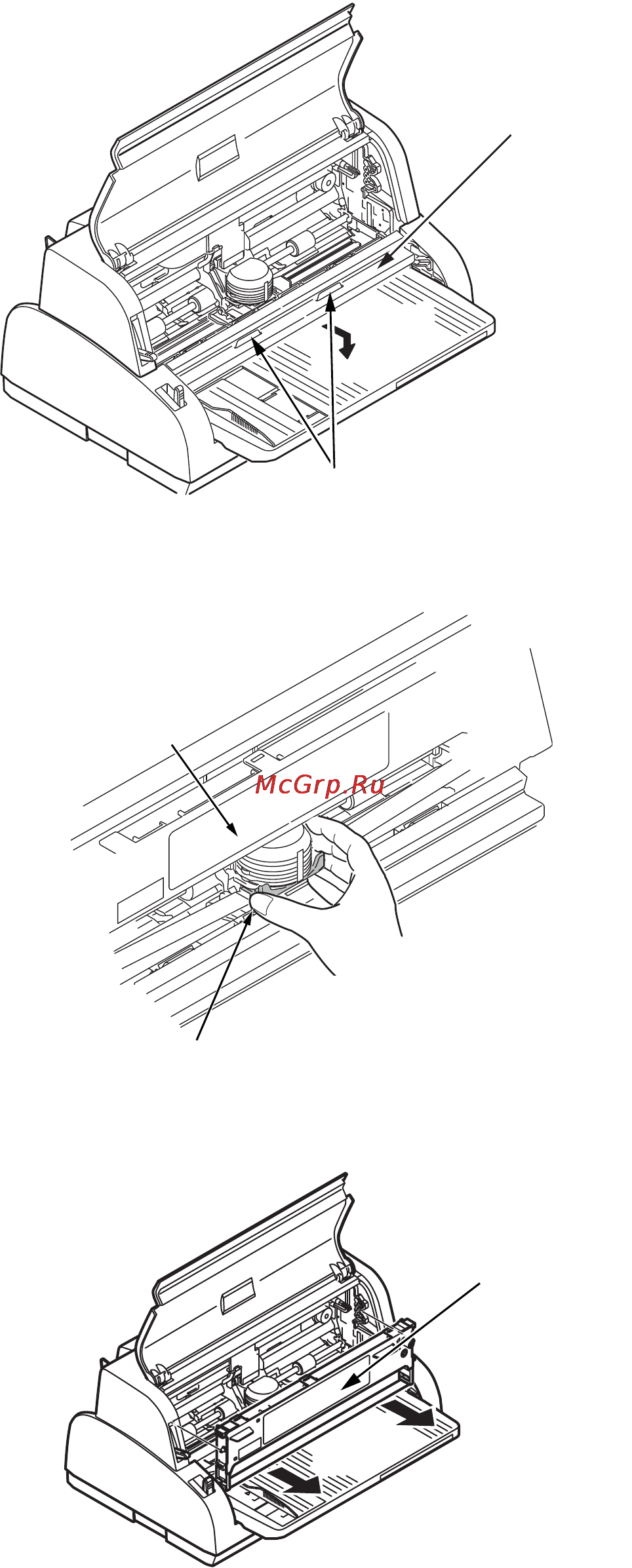

4. Hold (1) and lift the paper sheet guide (2) and slide it along the rails in the direction

indicated by the arrow until it locks into position.

5. Hold the ribbon cartridge (1) with your fingers pressing on its ribbon guide (2) and

slope it up and out to remove it from the carriage.

6. Holding the ribbon cartridge (1) close to both ends, slope it up and out until it

unlocks then remove it along the direction indicated by the arrows.

7. Dispose of the cartridge in accordance with your local guidelines.
