Paper handling > 21
A
LIGNING
THE
TEAR
-
OFF
PERFORATIONS
If the tear-off perforations are not aligned with the paper cutter on the Top Cover, align
them as follows:
1. With the SEL indicator illuminated, press and hold the LOAD/PARK button to move
the tear-off perforations to the paper cutter on the Top Cover.

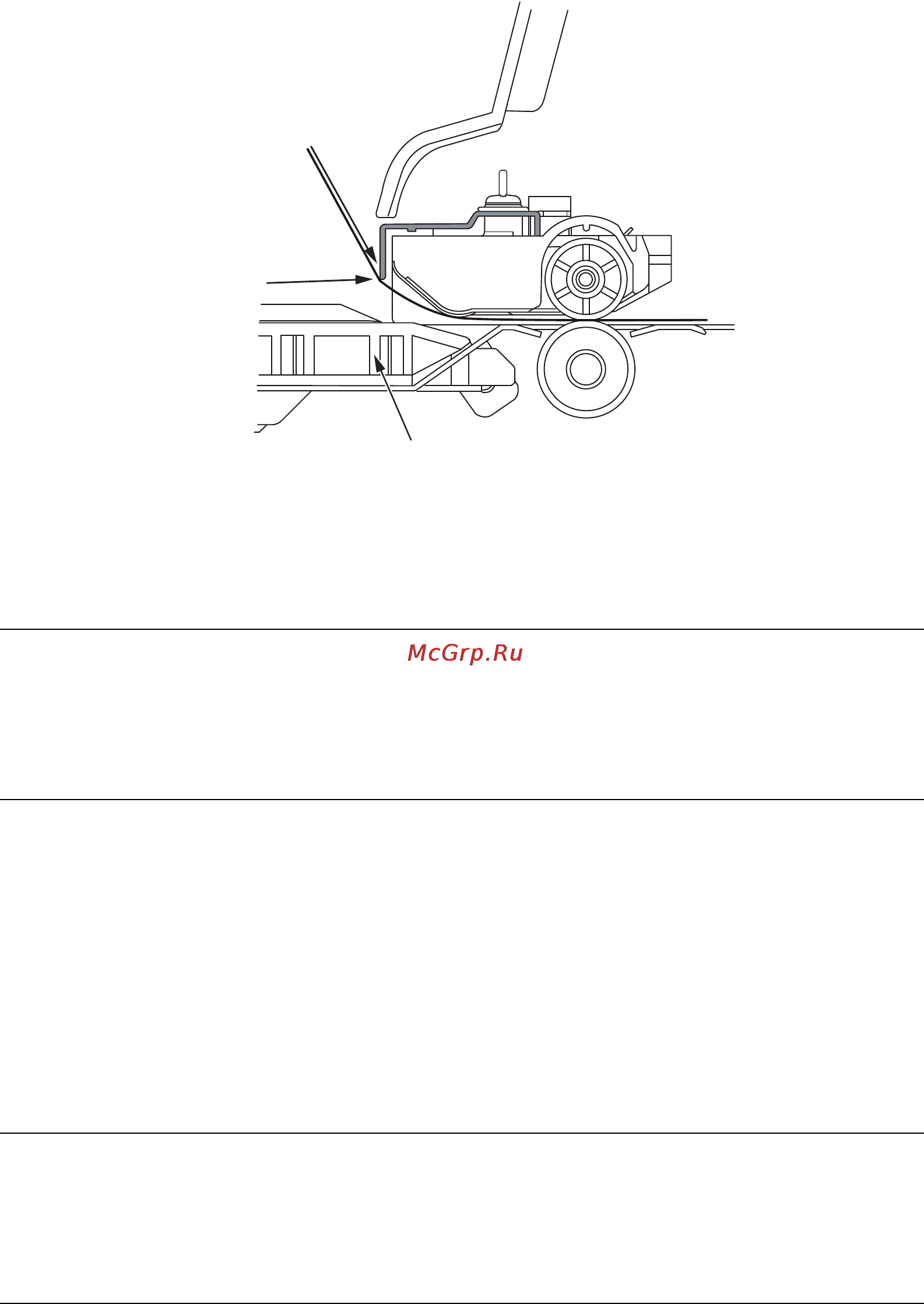

2. Check the position of the tear-off perforations (1) relative to the paper cutter (2).
(Paper Tray (3) is shown for clarity.)
(a) To advance the forms, hold down the LOAD/PARK button and press the SEL
button.
(b) To retract the forms, hold down the LOAD/PARK button and press the LF/FF
button.
3. Release the buttons after the tear-off perforations have been aligned with the paper
cutter.
R
EMOVING
CONTINUOUS
FORMS
1. Tear off the continuous forms. See “Tearing off continuous forms” on page 20.
2. Press the SEL button to set the printer off-line and reposition the continuous forms
in the printer.
3. Press the LOAD/PARK button to move the front edge of the continuous forms
backwards to the Pin Tractors.
NOTE
> Do not release the LOAD/PARK button while performing steps 1 and 2.
> When making adjustment (2a) or (2b), the ALARM indicator will be on. If
a movement greater than +- 7/90 in is specified, the ALARM indicator
blinks and the above adjustment cannot be made.
NOTE
> The ALARM indicator illuminates to indicate there is no paper present.
> If sprocket holes of the last page of the forms disengage from the
sprocket pins, do not attempt to eject the paper to avoid the possibility of
a paper jam.
2
1
3
