Troubleshooting > 35
T
ROUBLESHOOTING
C
LEARING
PAPER
JAMS
C
UT
SHEET
PAPER
JAMMED
IN
PRINTER

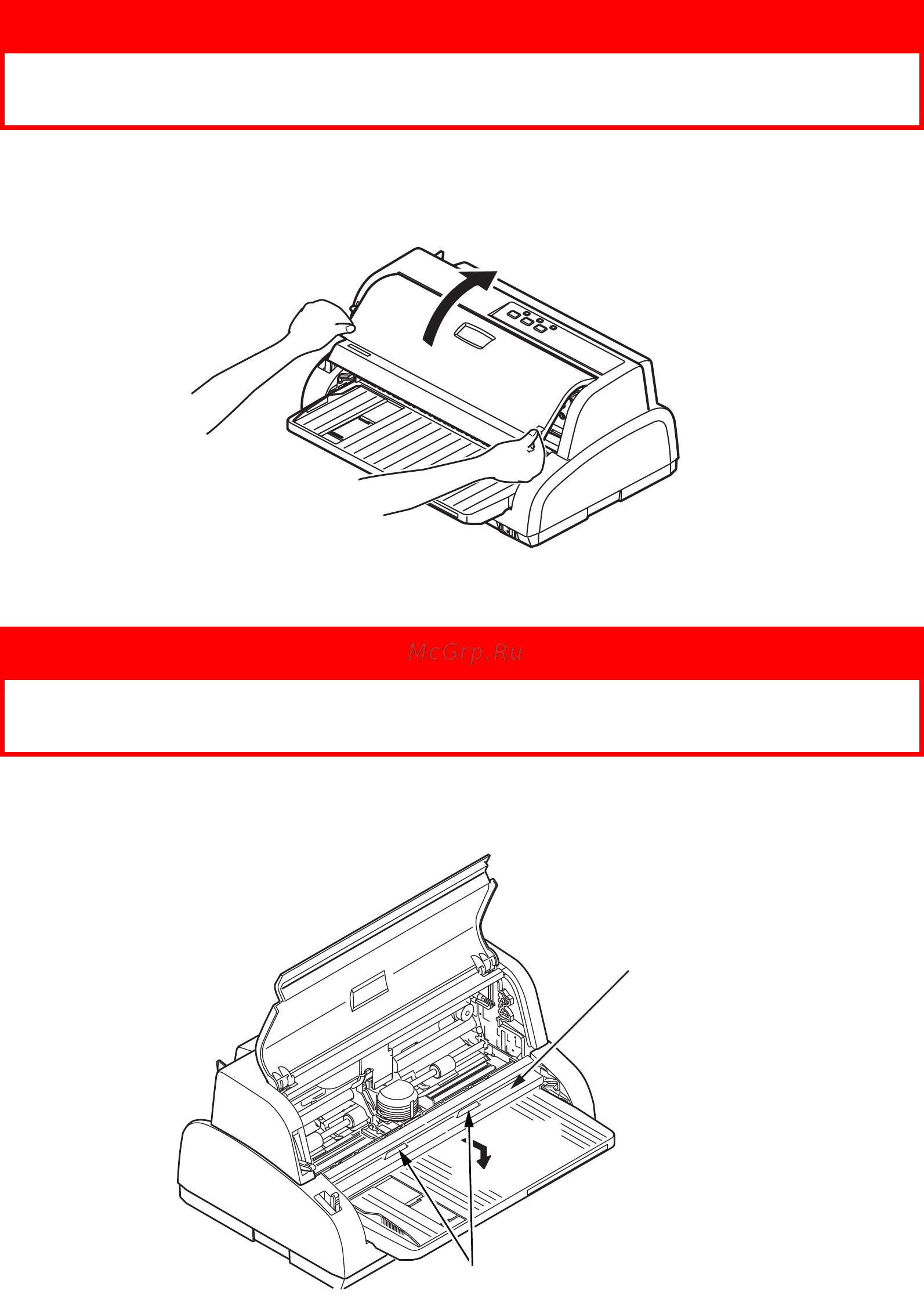

1. Set the Power Switch to OFF.
2. Open the Top Cover.
3. Set the Paper Thickness lever to the Replace Ribbon position (position 9).
4. Hold (1) and lift the paper feed guide (2) and slide it along the rails in the direction
indicated by the arrows until it locks into position.
WARNING!
Do not carry out any operations inside the printer with the Power
Switch set to ON.
WARNING!
The Print Head may be hot after printing. Allow it to cool before
touching it.
1
2
