OKI ml5100fb [16/53] Paper handling

Paper handling > 16

APER

HANDLING

This section describes how to use cut sheet paper and continuous forms in your printer.

OADING

CUT

SHEET

PAPER

1. Ensure that the printer is turned ON.

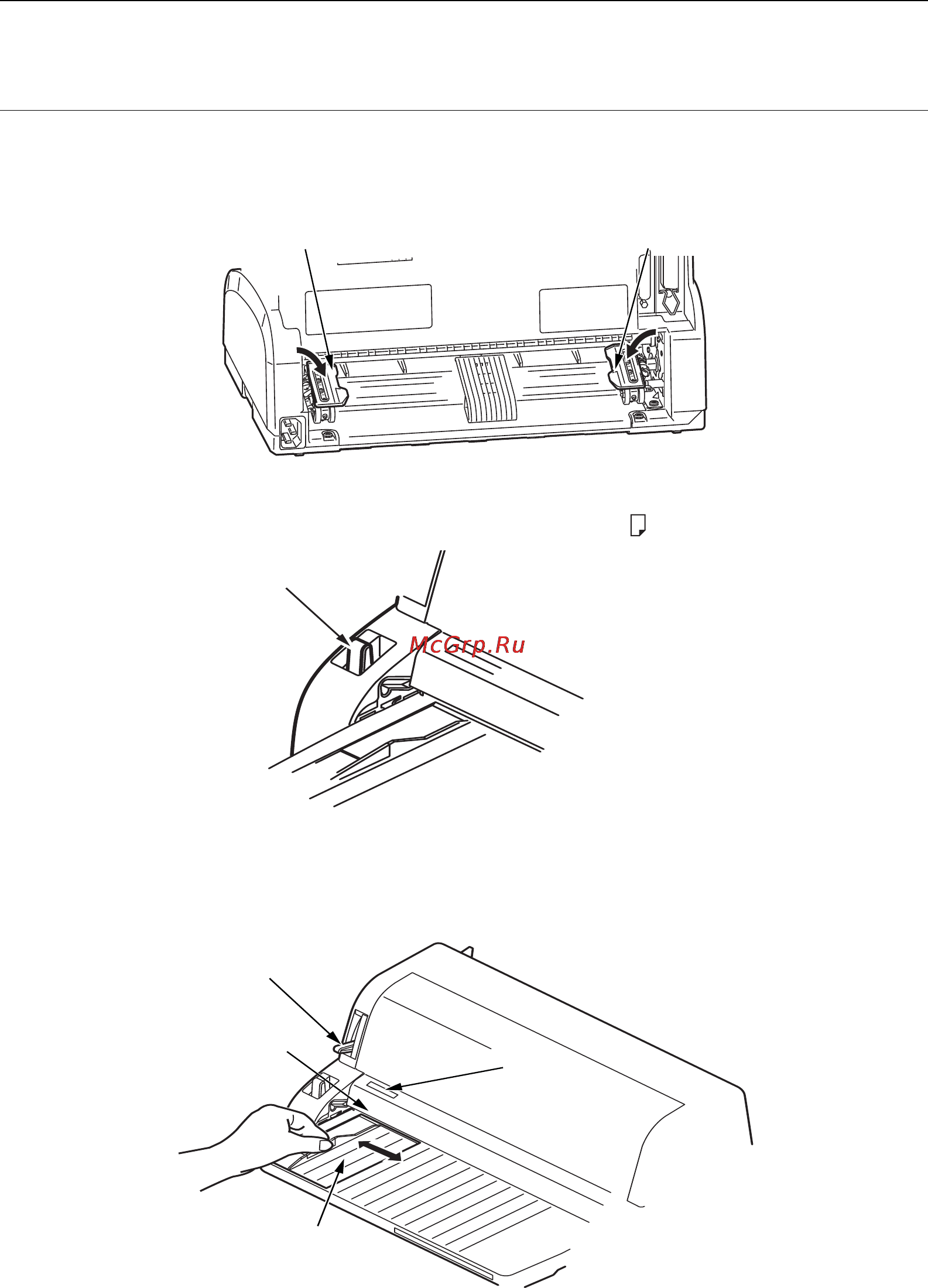

2. Ensure that the Pin Tractor covers (1) are closed to avoid the possibility of paper

jams.

3. Ensure the Paper Type Lever (1) is set to Cut Sheet.

4. Set the left margin of the paper by adjusting the Paper Guide (1) along the scale (2)

relative to the start of printed line marker arrow (3).

NOTE

If there are any continuous forms in the printer, eject them as described in

“Removing continuous forms” on page 21.
