Paper handling > 20
7. Adjust the right Pin Tractor (1) to accommodate the width of the continuous forms,
taking care that the forms are held neither too loosely nor too tightly between the
Pin Tractors. Press the locking lever (2) down to lock the right Pin Tractor in the
desired position.
8. Press the LOAD/PARK button. The continuous forms will be taken into the printer
and positioned at the first line print position and the SEL indicator will illuminate.
T
EARING
OFF
CONTINUOUS
FORMS
1. With the SEL indicator illuminated, press the LOAD/PARK button to feed the
continuous forms to the tear-off position.

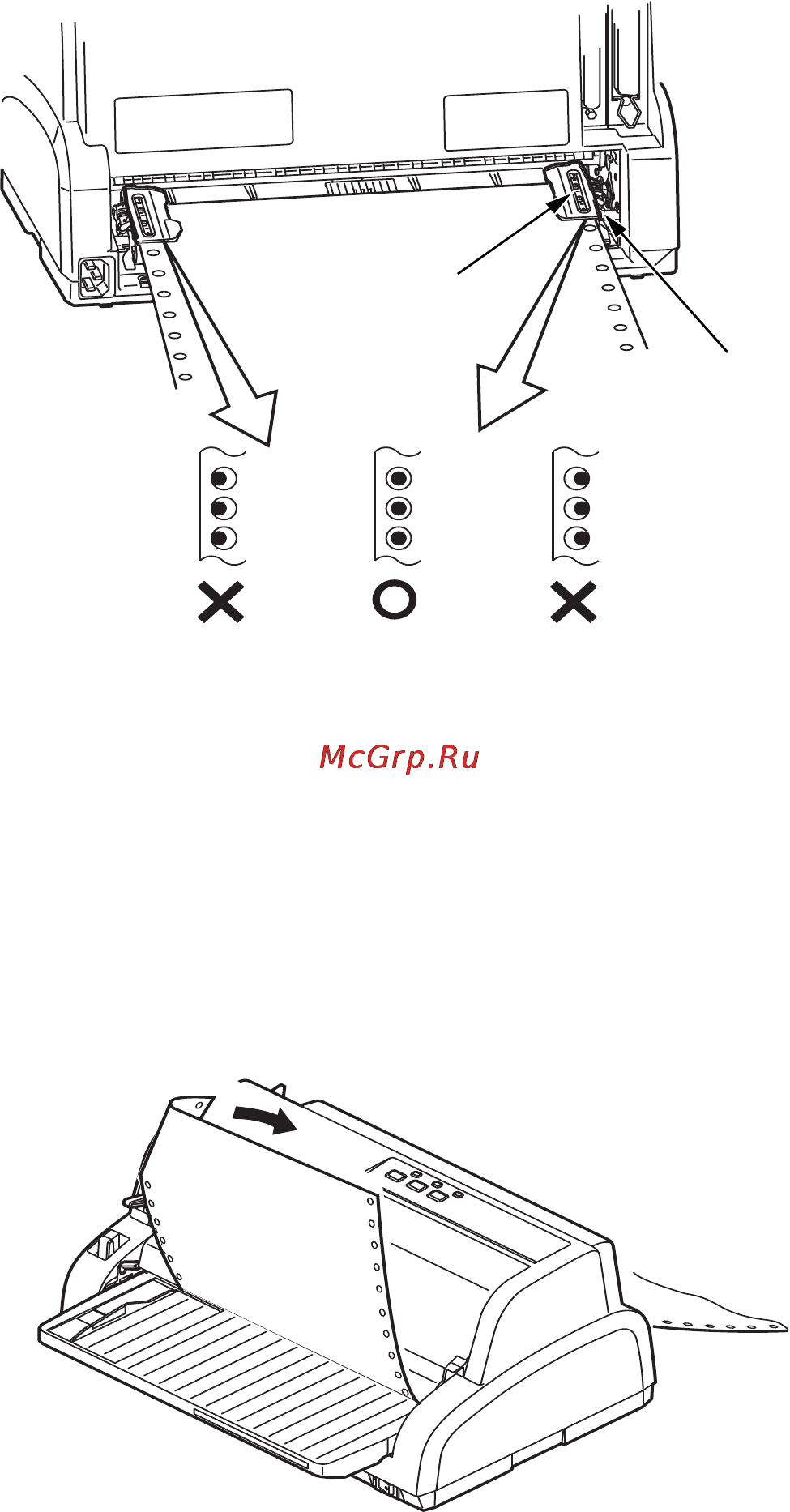

2. Carefully tear off the forms along the tear-off perforations in the direction shown.
Using excessive force may result in tearing at a position other than the tear-off
perforations.
3. With the SEL indicator illuminated, press the LOAD/PARK button to reposition the
continuous forms in the printer back to the first line print position.
1
2
