Troubleshooting > 36

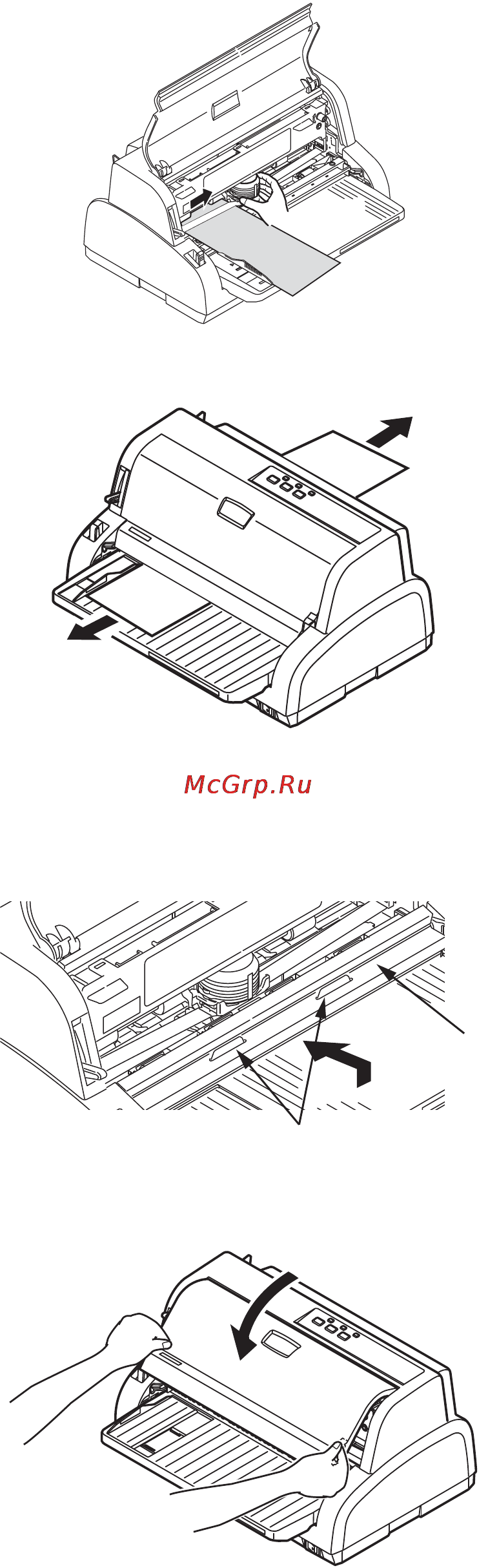

5. Move the Print Head away from the paper.

6. Pull the cut sheet out from the front or rear of the printer.

7. If a paper fragment remains inside the printer, use forceps to grip and extract it.

8. Hold (1) and lift the paper feed guide (2) and slide it along the rails in the direction

indicated by the arrows until it locks back into position.

9. When the paper jams are cleared, close the printer Top Cover.

10. Set the Power Switch to ON.
