DG834G Reference Manual
8-22 Virtual Private Networking
v3.0, September 2005

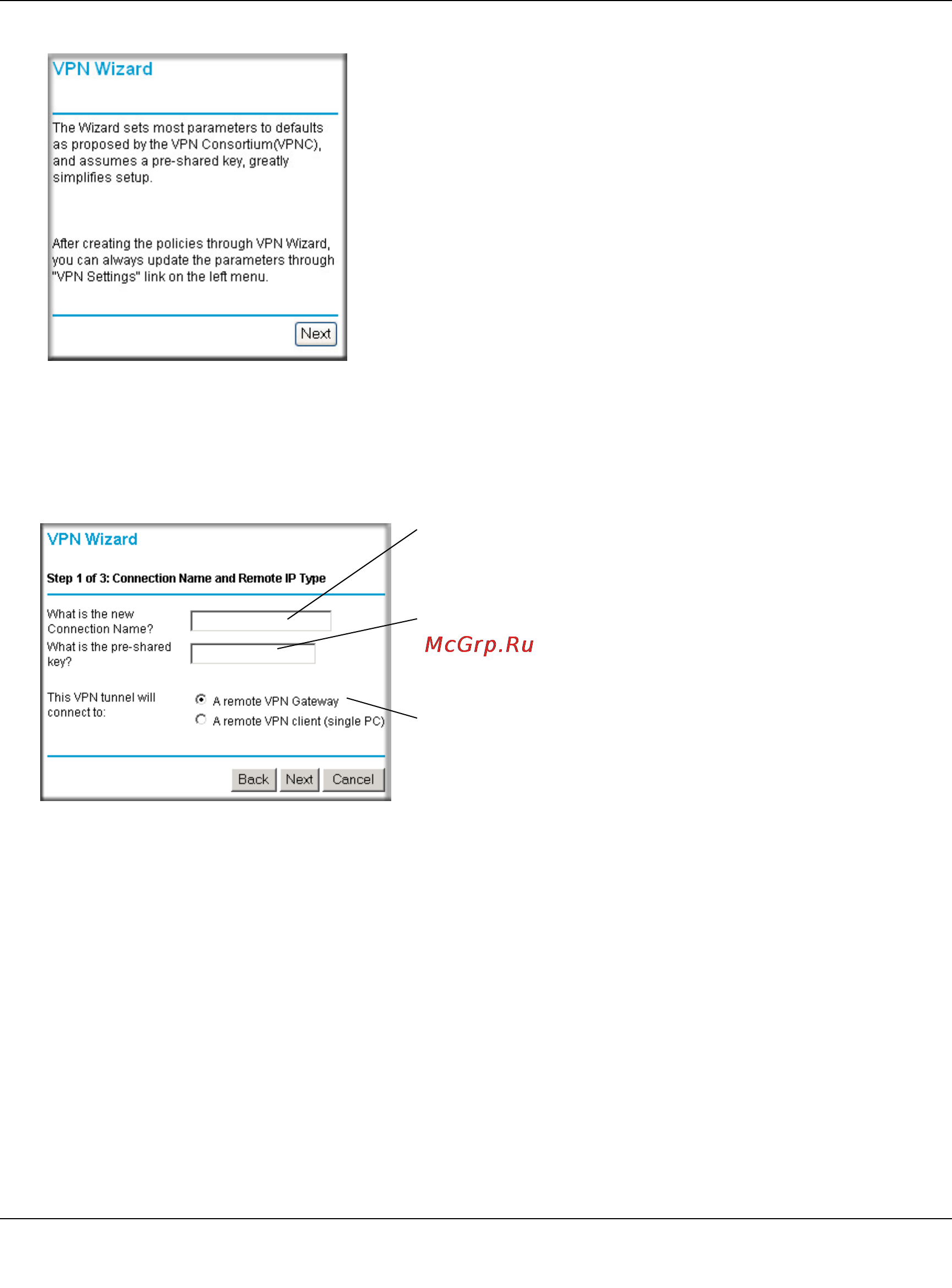

Figure 8-20: VPN Wizard Start Screen
2. Fill in the Connection Name and the pre-shared key, select the type of target end point, and
click Next to proceed.
Figure 8-21: Connection Name and Remote IP Type
Enter the new Connection Name:
(e.g., GtoG)
Enter the pre-shared key:
(e.g., 12345678)
Select the radio button:
A remote VPN Gateway
